Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the BPMV and EBCM assembly (2) to the BPMV mounting bracket (4).
  2. Install the BPMV bracket (4) to the strut tower.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the one bolt and three nuts that attach the BPMV mounting bracket (4) to the strut tower.

    Tighten

    • Tighten the lower two BPMV mounting bracket nuts (3) and bolt to 10 N.m (89 lb. in.).
    • Tighten the top nut (1) for BPMV mounting bracket (4) to strut tower to 3 N.m (27 lb. in.).

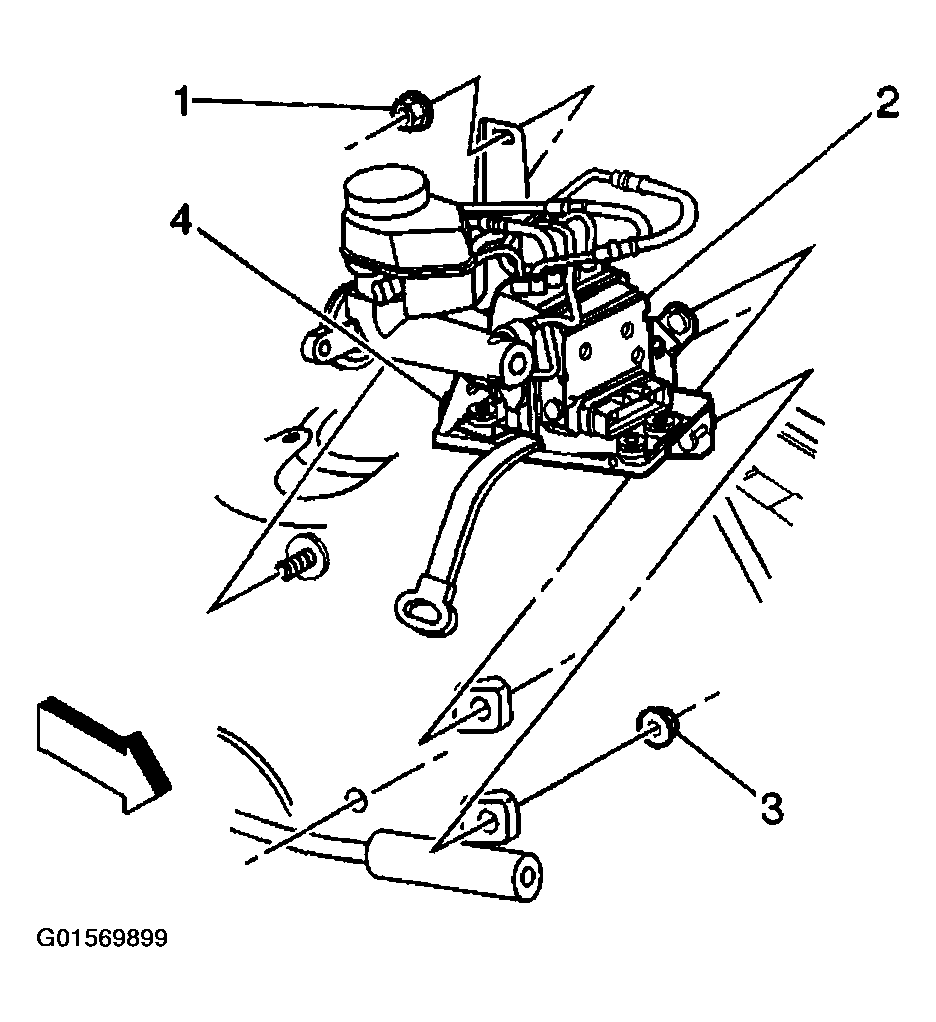

      • Fig 1: Installing BPMV Mounting Bracket Nuts
      G01569899Courtesy of GENERAL MOTORS CORP.
  4. Reconnect the ground strap between the EBCM assembly and the chassis.
  5. Turn the ignition switch to the RUN position, engine off.
  6. Perform the DIAGNOSTIC SYSTEM CHECK - ABS  .
