Test Description

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Use the scan tool to check the normal state of the Traction Off indicator control.
  2. 3. Ensures that the instrument cluster can operate the Traction Off indicator.

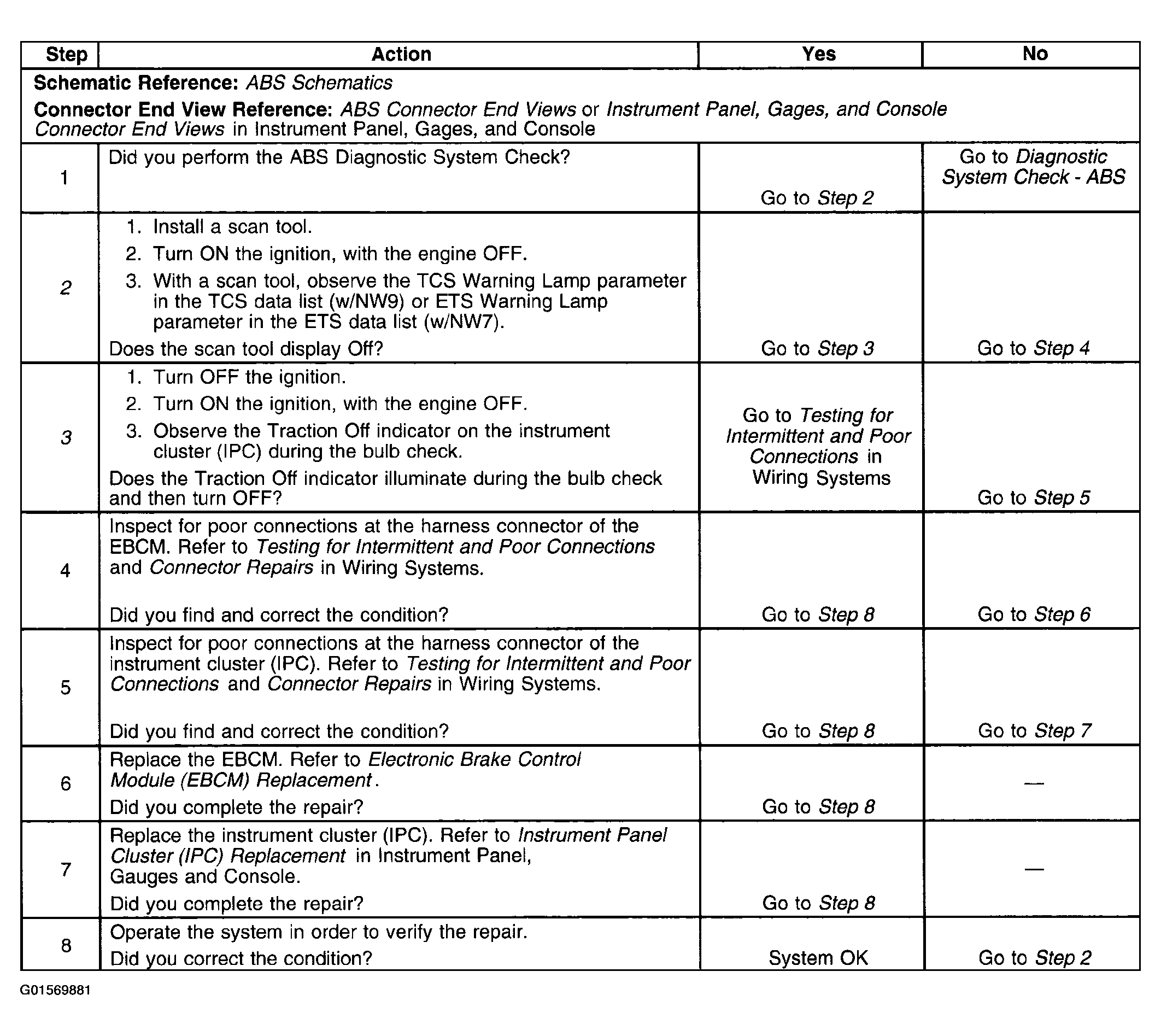

Fig 1: Traction Off Indicator Always On
G01569881Courtesy of GENERAL MOTORS CORP.
