Diagnostic Aids

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Possible causes of this DTC are the following conditions:

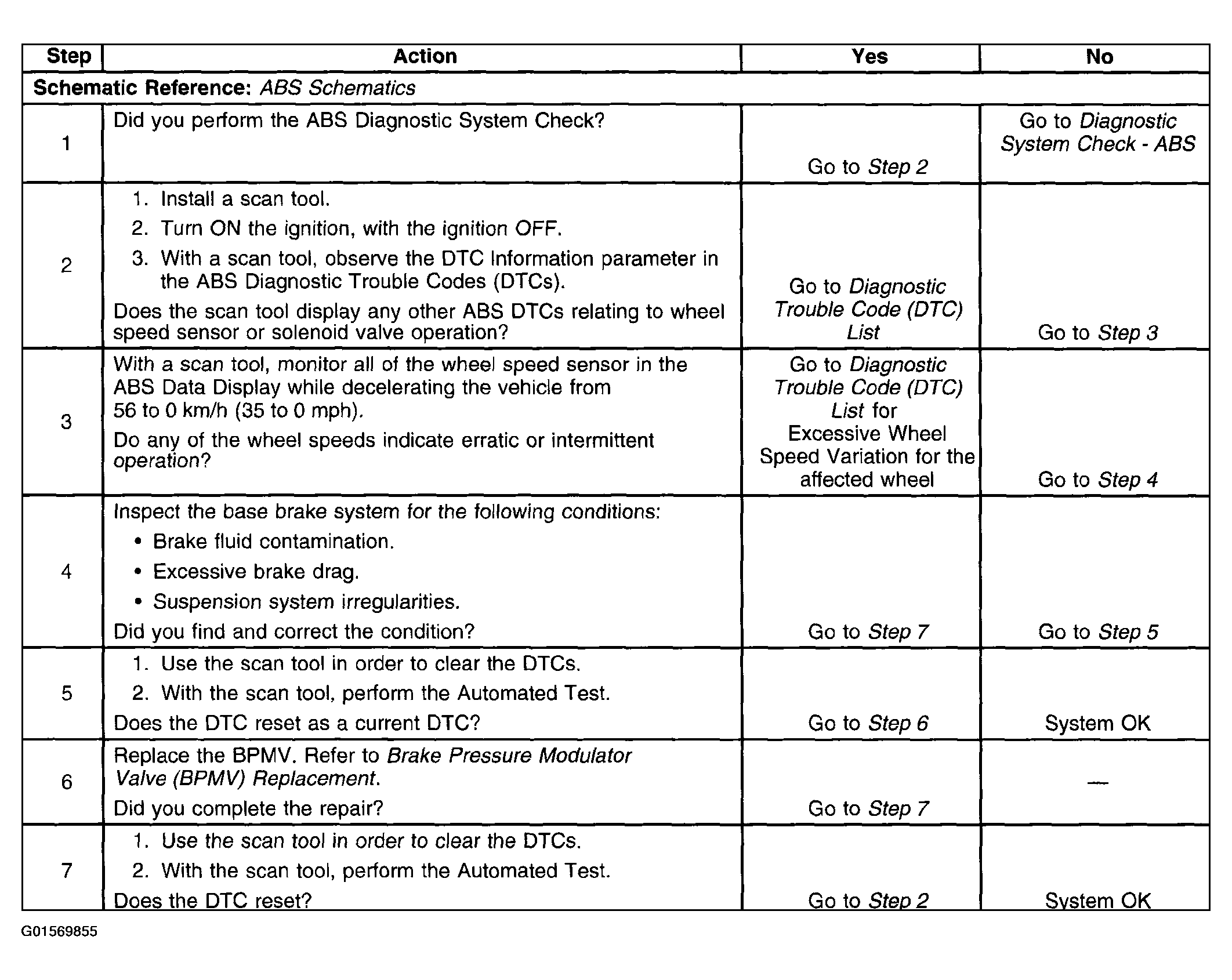

Fig 1: DTC C1216
G01569855Courtesy of GENERAL MOTORS CORP.
