Test Description

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. Use the scan tool to check the normal state of the ABS indicator control circuit.

4. Ensures that the instrument panel cluster (IPC) can operate the ABS indicator.

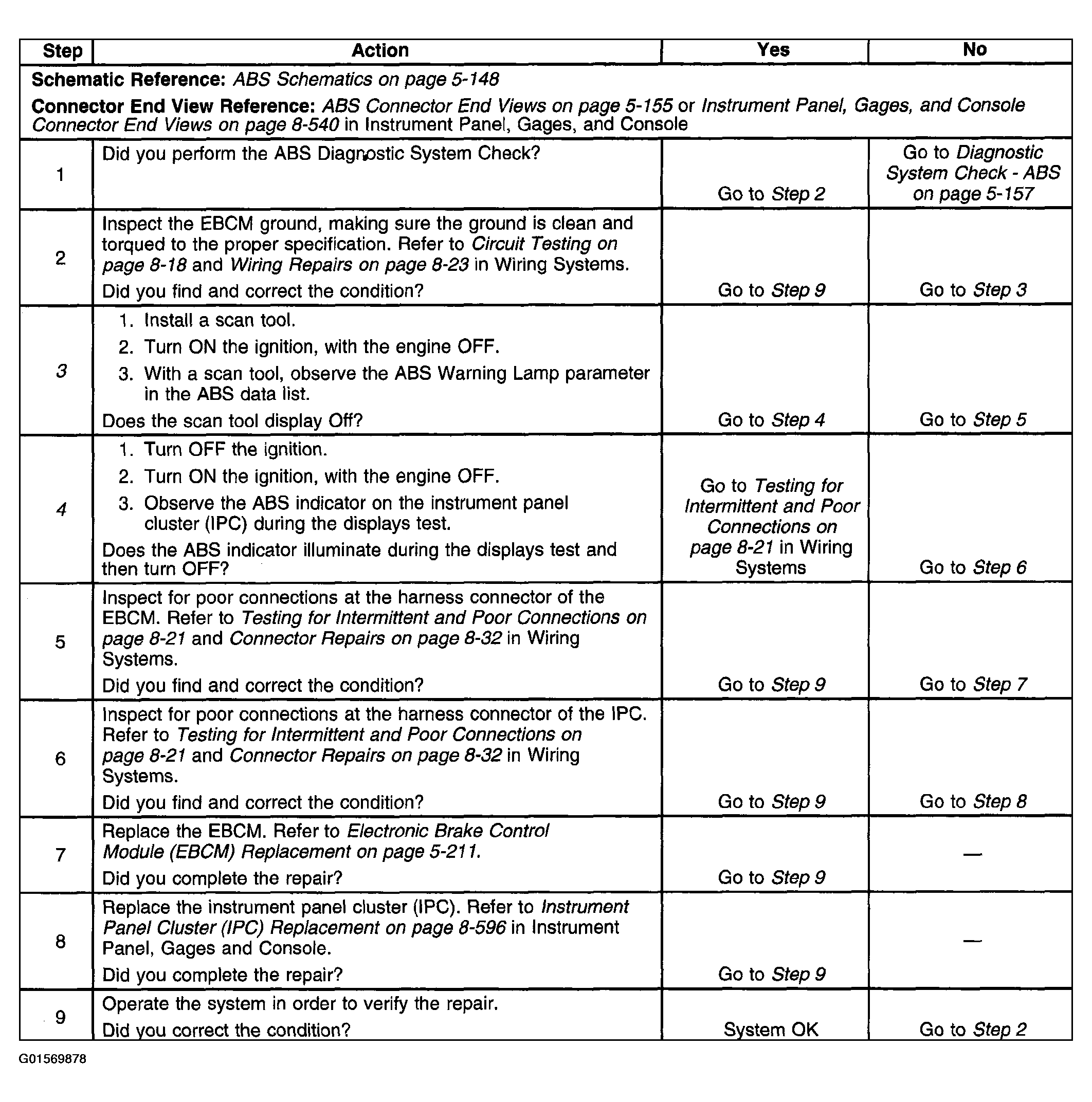

Fig 1: ABS Indicator Inoperative
G01569878Courtesy of GENERAL MOTORS CORP.
