Test Description

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The number below refer to the step number on the diagnostic table.

4. Tests if the malfunction is in the BCM or in the reset switch signal circuit.

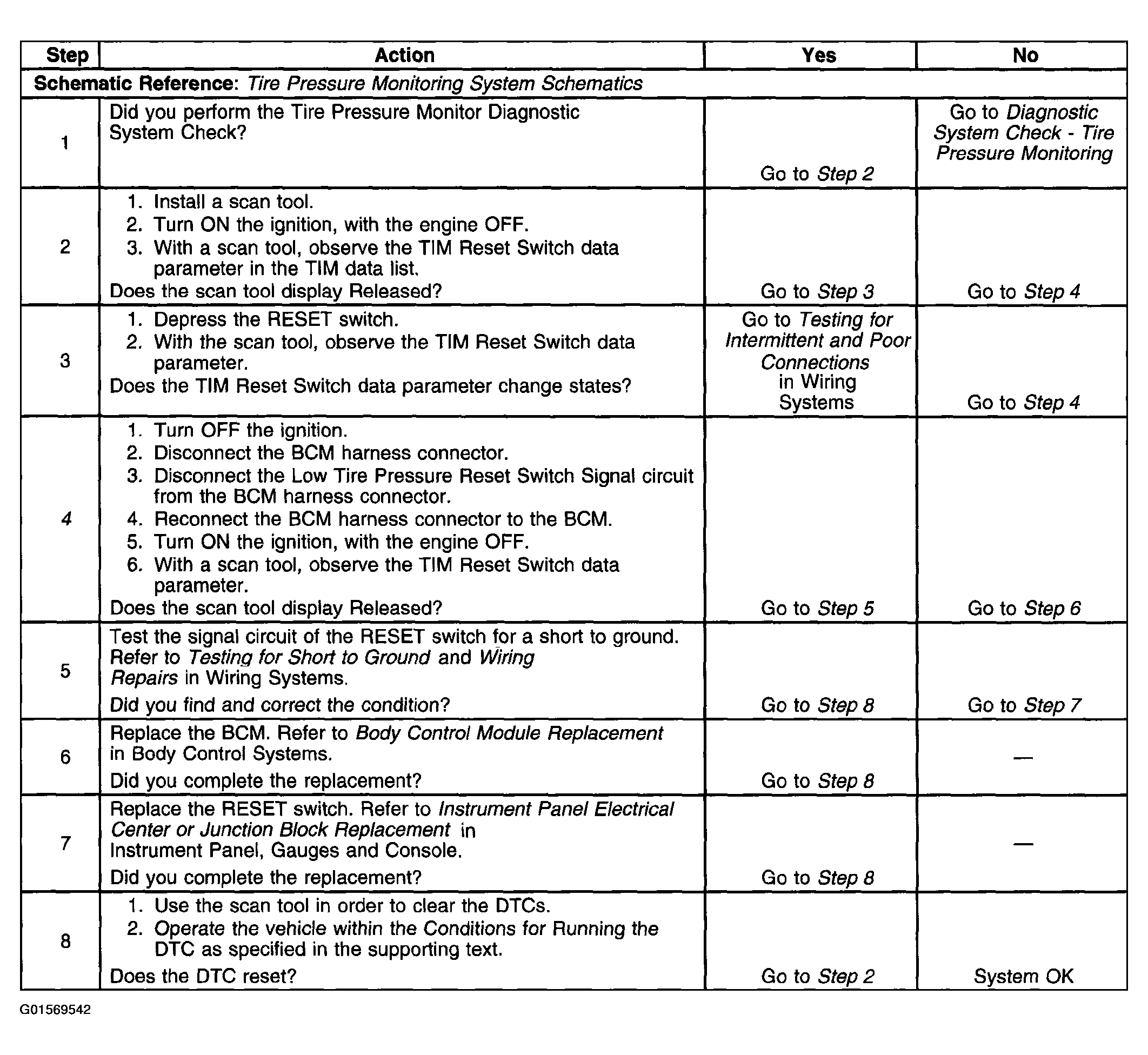

Fig 1: DTC B2818
G01569542Courtesy of GENERAL MOTORS CORP.
