Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Use a 36 mm (1.42 in) wheel bolt for front service replacement only.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the brake caliper and bracket. Hang the caliper and the bracket from the vehicle. DO NOT allow the caliper and the bracket to hang by the brake hose. Refer to Brake Caliper Replacement - Front in Disc Brakes.
  4. Remove the brake rotor. Refer to Brake Rotor Replacement - Front in Disc Brakes.
  5. Use the J 6627-A  in order to extract the stud (1) from the hub (2).

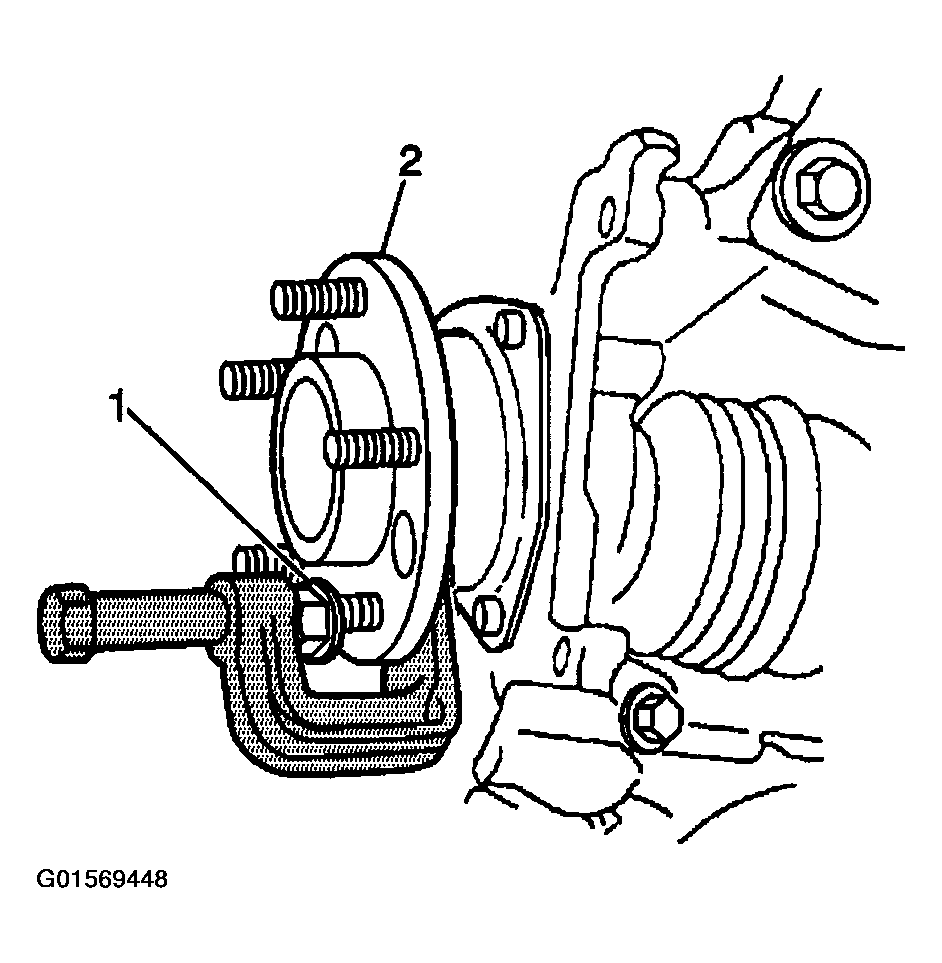

    Fig 1: Removing Stud From Hub Using J 6627-A
    G01569448Courtesy of GENERAL MOTORS CORP.
