Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the bearing/hub assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT  .
  3. Remove the front lower control arm ball stud. Refer to LOWER CONTROL ARM REPLACEMENT  .
  4. Remove the outer tie rod end from the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER in Power Steering.
  5. Scribe the strut to the knuckle.

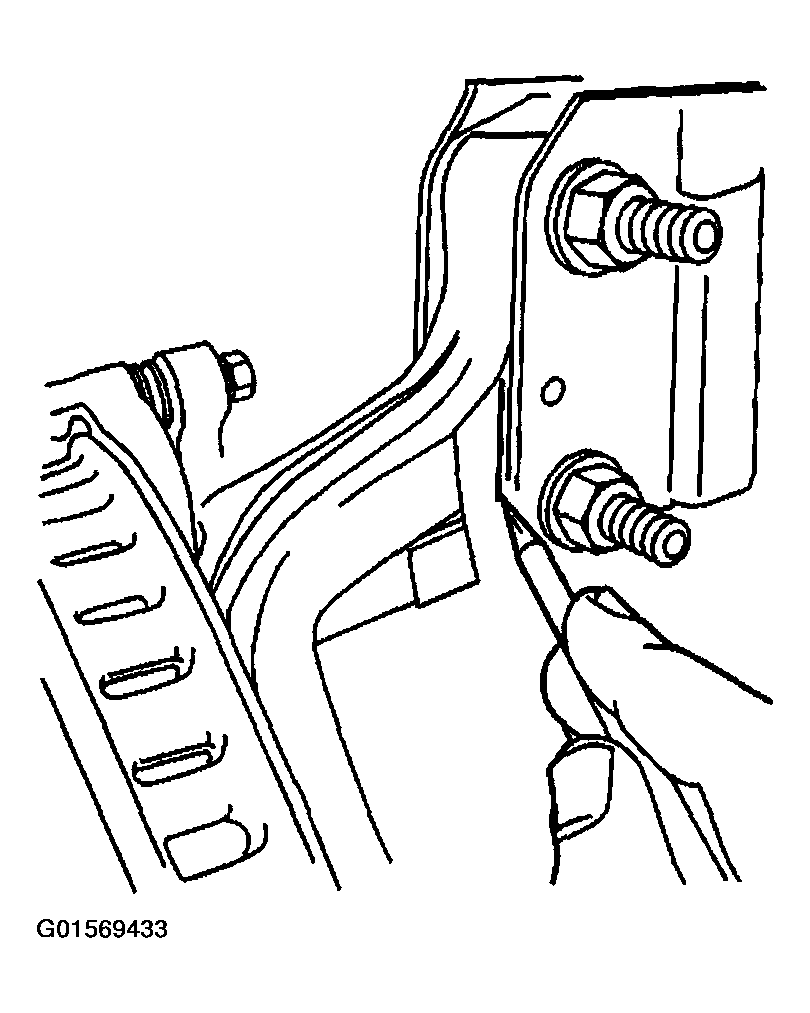

    Fig 1: Scribing Strut To Knuckle
    G01569433Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts and nuts attaching the strut to the knuckle.

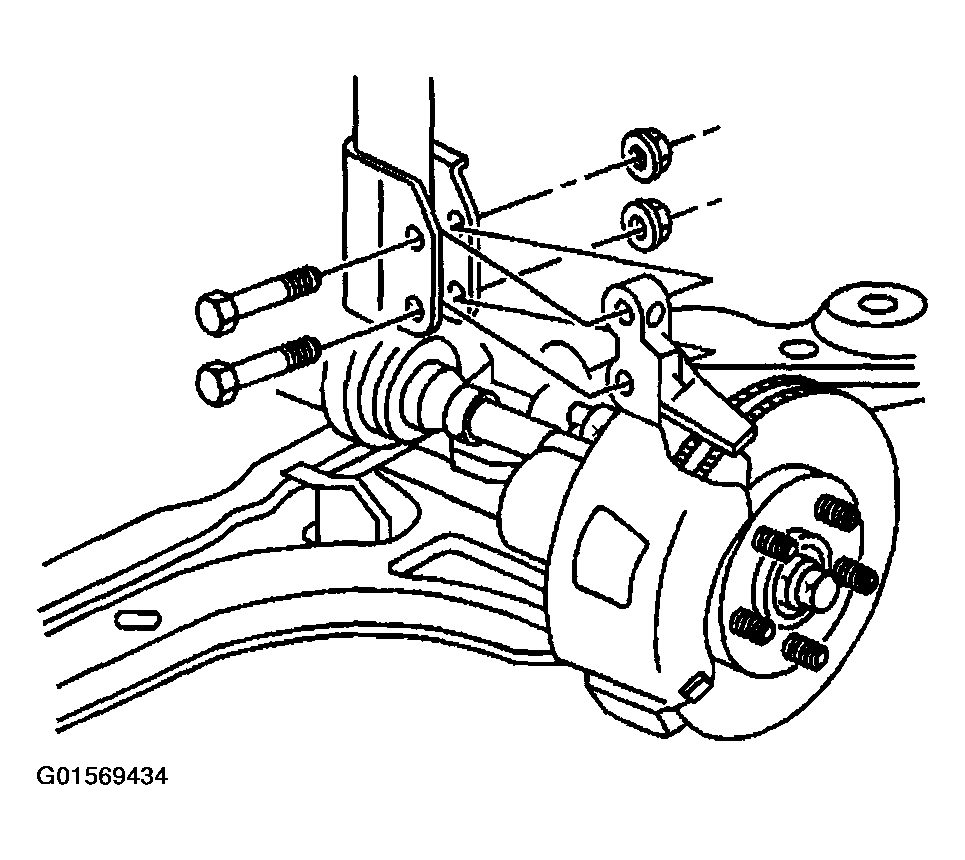

    Fig 2: Removing Bolts & Nuts Attaching Strut To Knuckle
    G01569434Courtesy of GENERAL MOTORS CORP.
  7. Remove the knuckle from the vehicle.
