Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the left and right side stabilizer shaft insulator bracket bolts.
  3. Remove the left and right side stabilizer shaft insulator brackets.

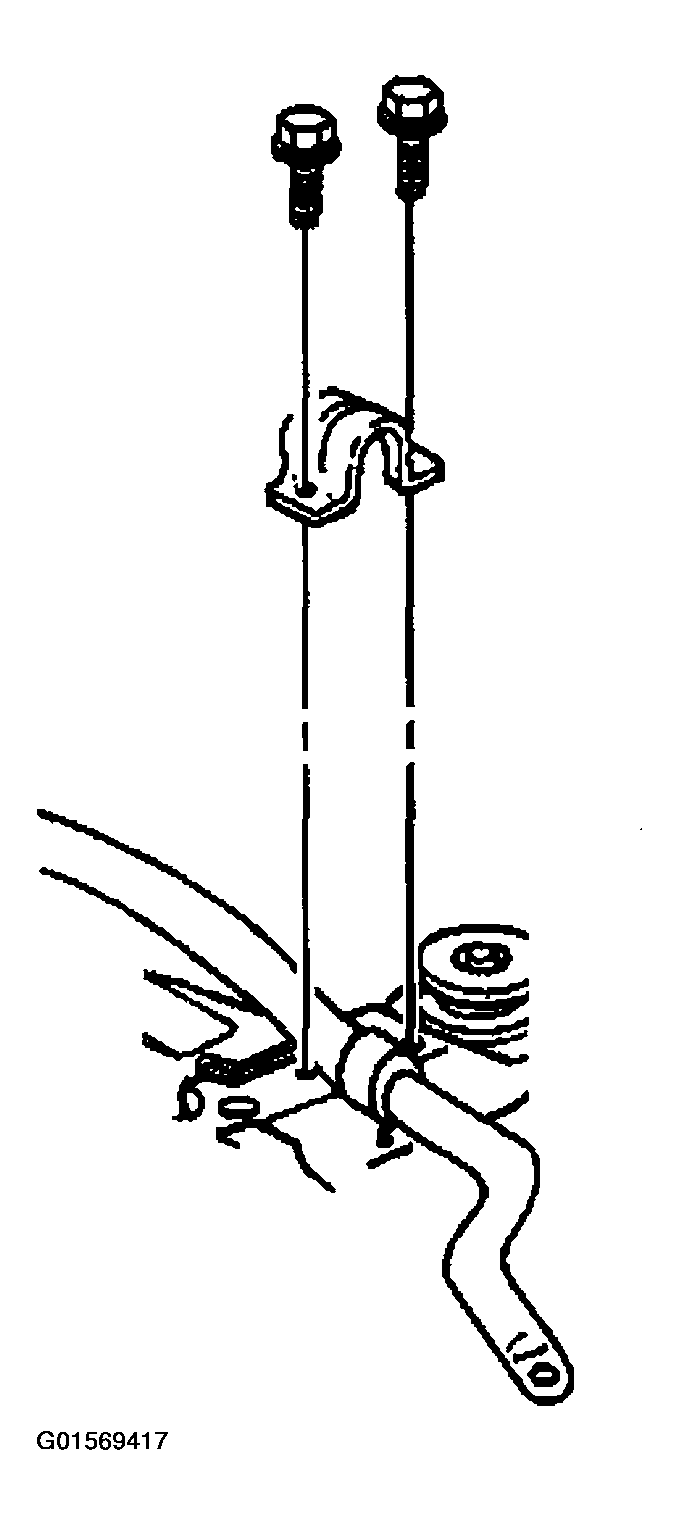

    Fig 1: Removing Stabilizer Shaft Insulator Brackets
    G01569417Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).
    Fig 2: Removing Stabilizer Shaft Insulators
    G01569418Courtesy of GENERAL MOTORS CORP.
