Rear Toe Adjustment

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the hex nuts at the rear wheel spindle rod (rear).

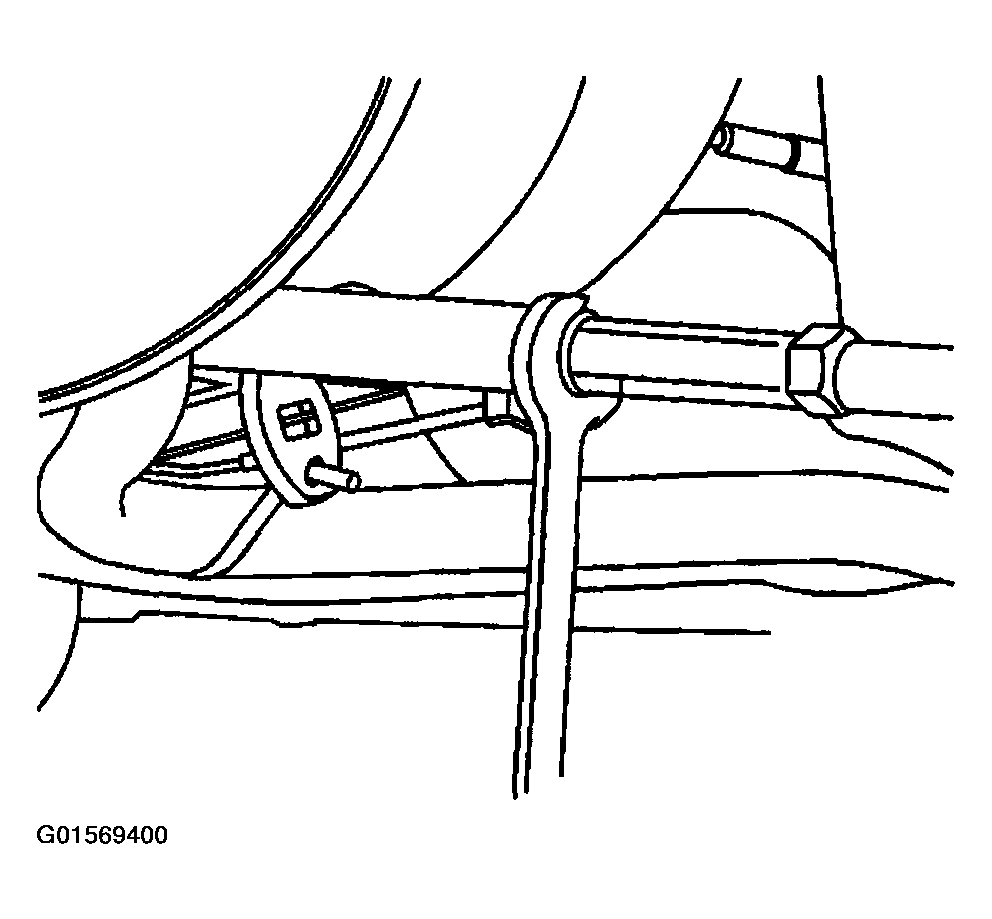

    Fig 1: Loosening Hex Nuts On Rear Wheel Spindle Rod
    G01569400Courtesy of GENERAL MOTORS CORP.
  2. Turn the adjusting nut to change the toe angle.
  3. Adjust the toe to the proper setting. Refer to WHEEL ALIGNMENT SPECIFICATIONS  .

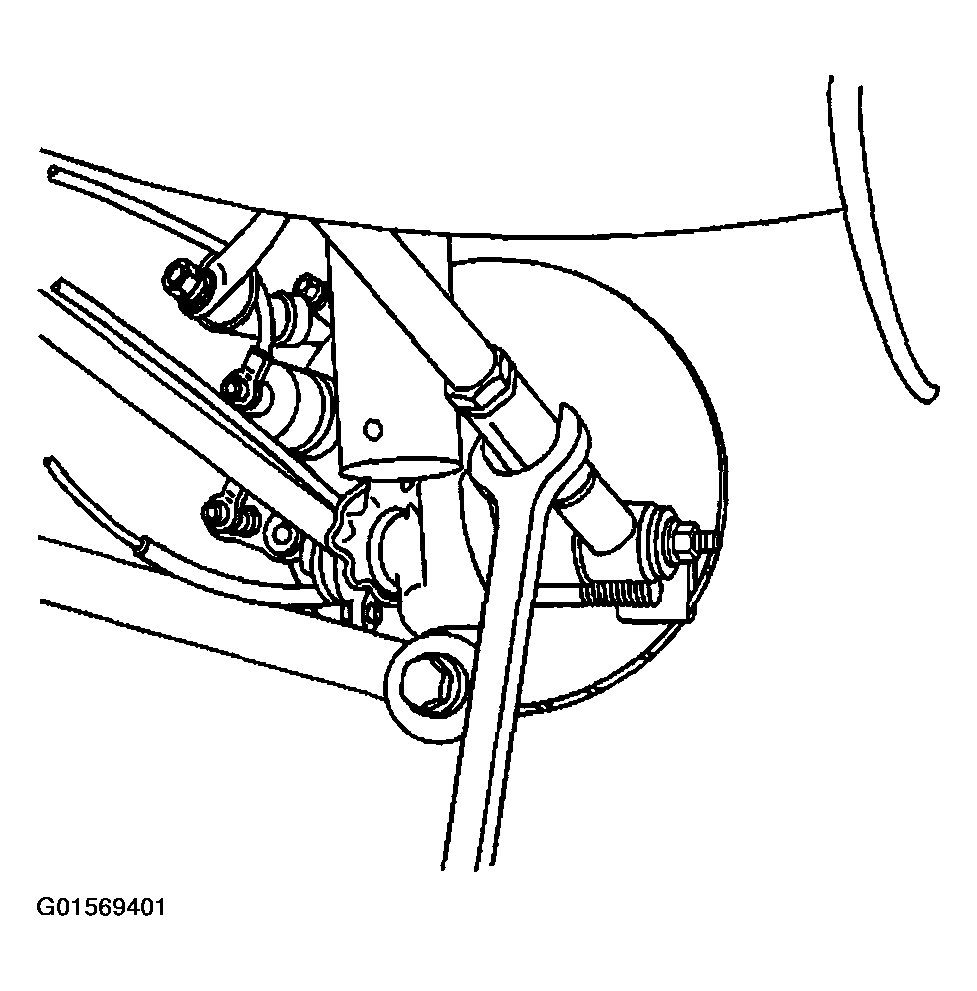

    Fig 2: Aligning Toe Angle Adjusting Nut To Proper Setting
    G01569401Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Tighten the hex nuts on the rear wheel spindle rod (rear).

    Tighten

    Tighten the rear wheel spindle rod ends hex nuts to 50 N.m (37 lb ft).

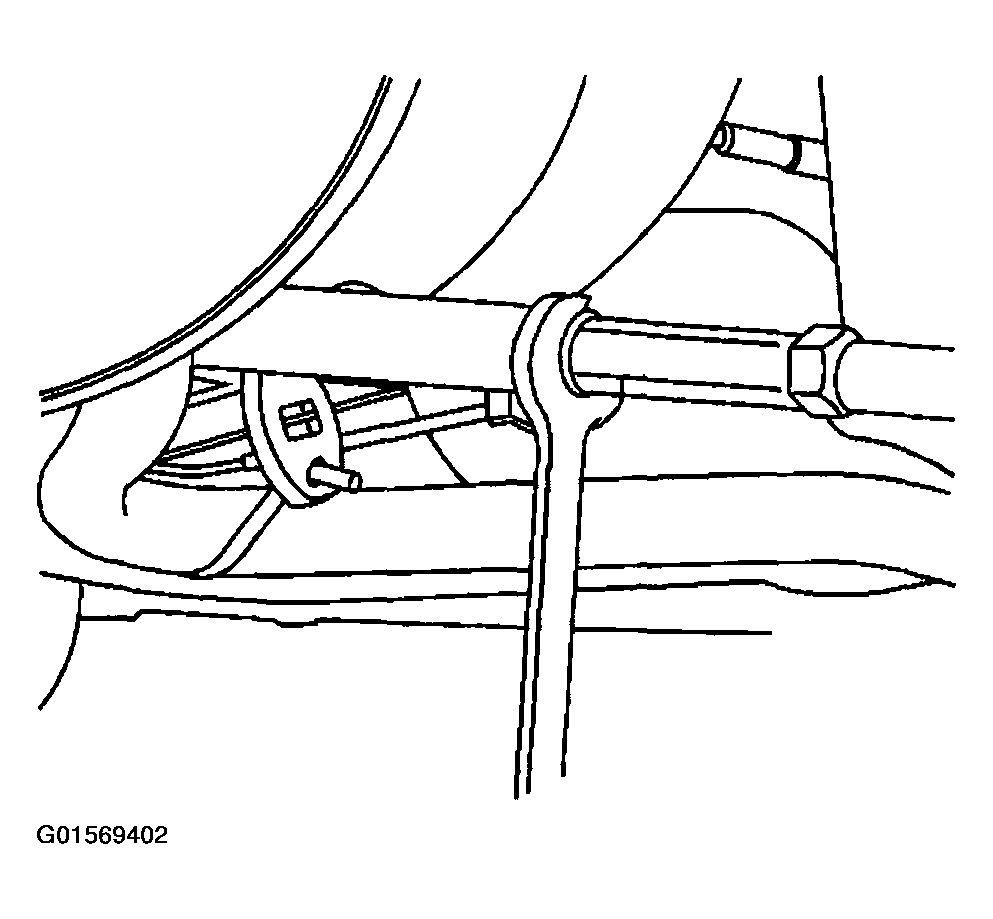

    Fig 3: Tightening Hex Nuts On Rear Wheel Spindle Rod
    G01569402Courtesy of GENERAL MOTORS CORP.
