Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim covers from the steering column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  2. Disconnect the electrical connector (2) from the steering wheel theft deterrent lock (3).

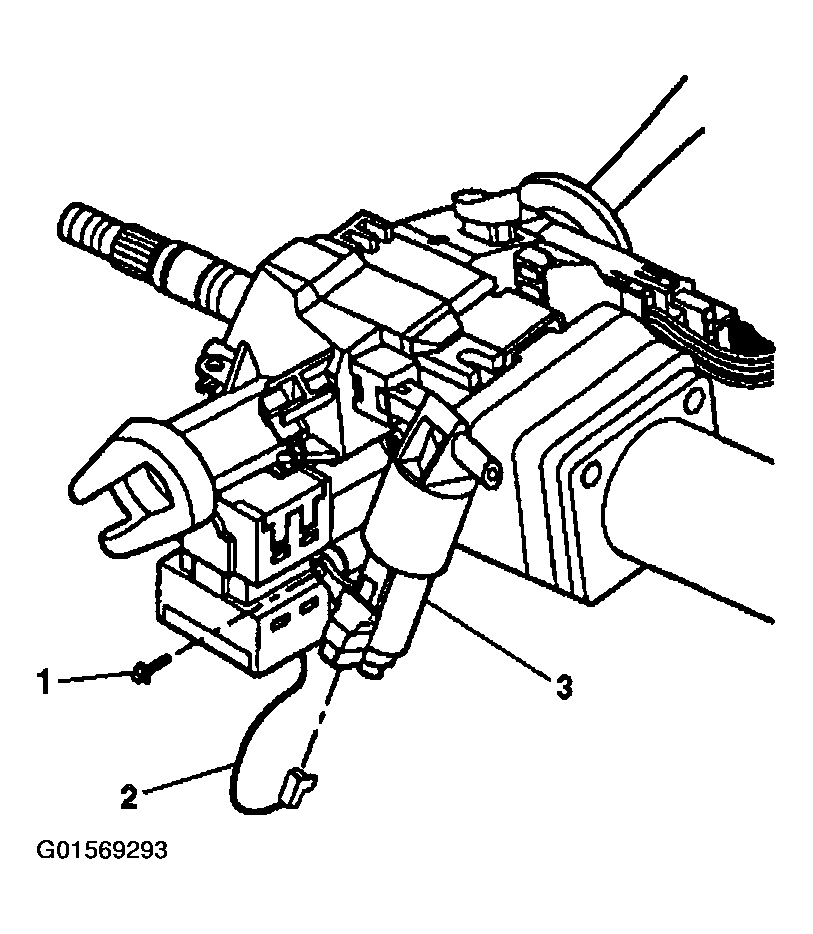

    Fig 1: Disconnecting Steering Wheel Theft Deterrent Lock Electrical Connector
    G01569293Courtesy of GENERAL MOTORS CORP.
  3. Remove the screw (1) from the steering wheel theft deterrent lock (3).
  4. Using a flat tipped screwdriver, push the tab in on the steering wheel theft deterrent lock (2) and pull to remove it from the steering column (1).

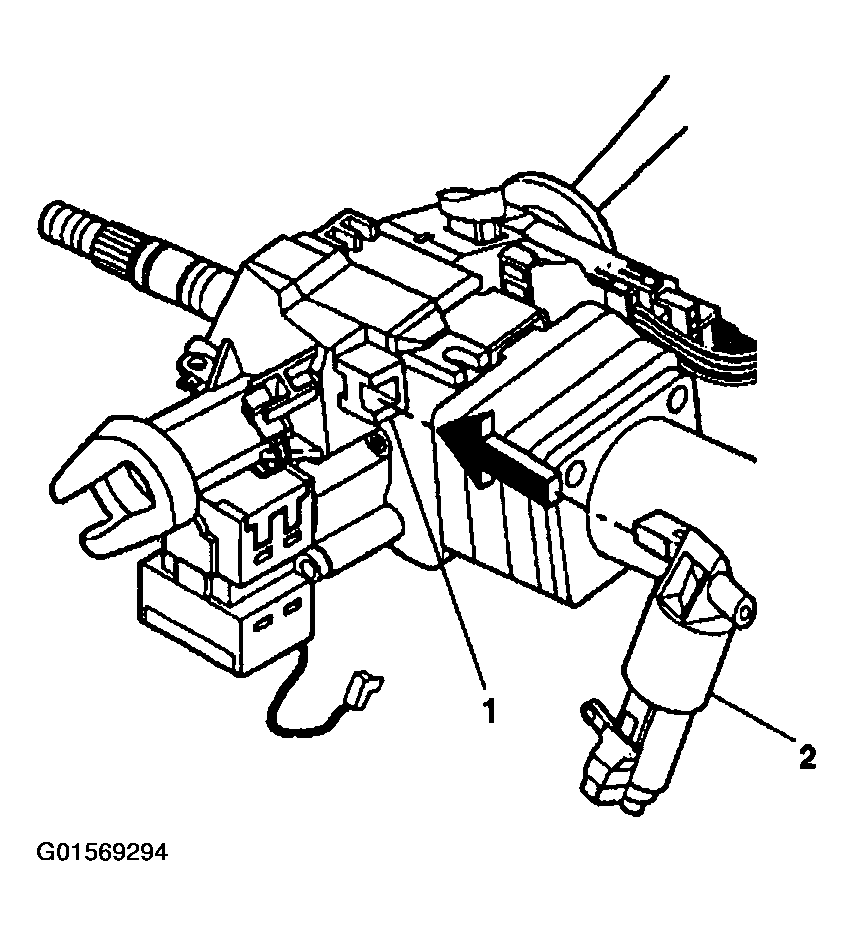

    Fig 2: Removing Steering Wheel Theft Deterrent Lock
    G01569294Courtesy of GENERAL MOTORS CORP.
