Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the steering wheel theft deterrent lock (2) to the steering column (1).

Fig 1: Installing Steering Wheel Theft Deterrent Lock
Courtesy of GENERAL MOTORS CORP.
Install the screw (1) to the steering wheel theft deterrent lock (3).
Connect the electrical connector (2) to the steering wheel theft deterrent lock (3).

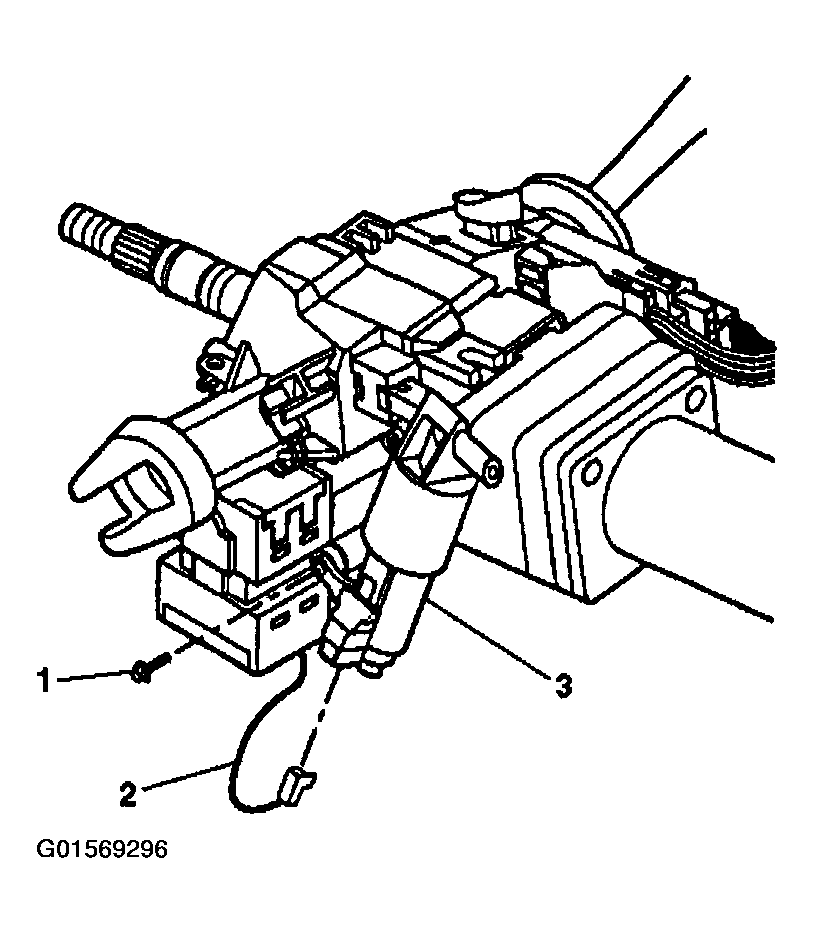

Fig 2: Connecting Steering Wheel Theft Deterrent Lock Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the trim covers to the steering column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Check the operation of the steering wheel theft deterrent lock (3).
