Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition lock cylinder by performing the following procedure:
    1. 1.1. Align the positioning locking tab slot on the lock module to the positioning tab on the ignition lock cylinder.
    2. 1.2. Push the lock cylinder in until the tab locks in the lock module.

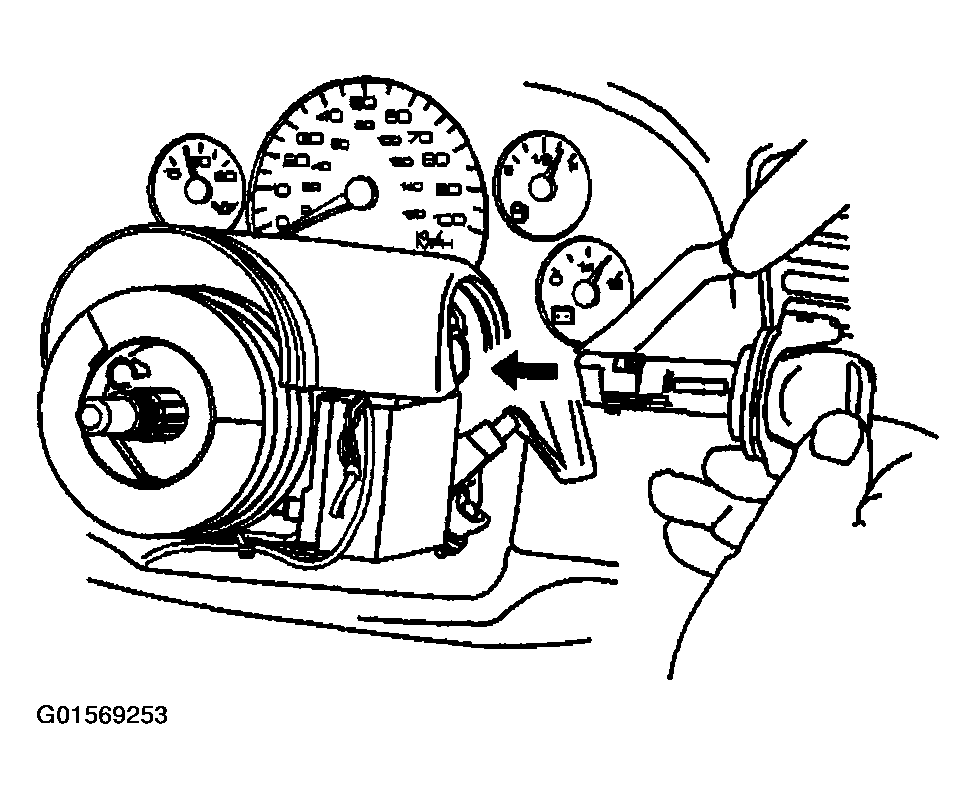

    Fig 1: Installing Ignition Lock Cylinder
    G01569253Courtesy of GENERAL MOTORS CORP.
  2. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
  4. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  5. Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS in Theft Deterrent.
