Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock bolt spring (3) into the steering column tilt head assembly (5).

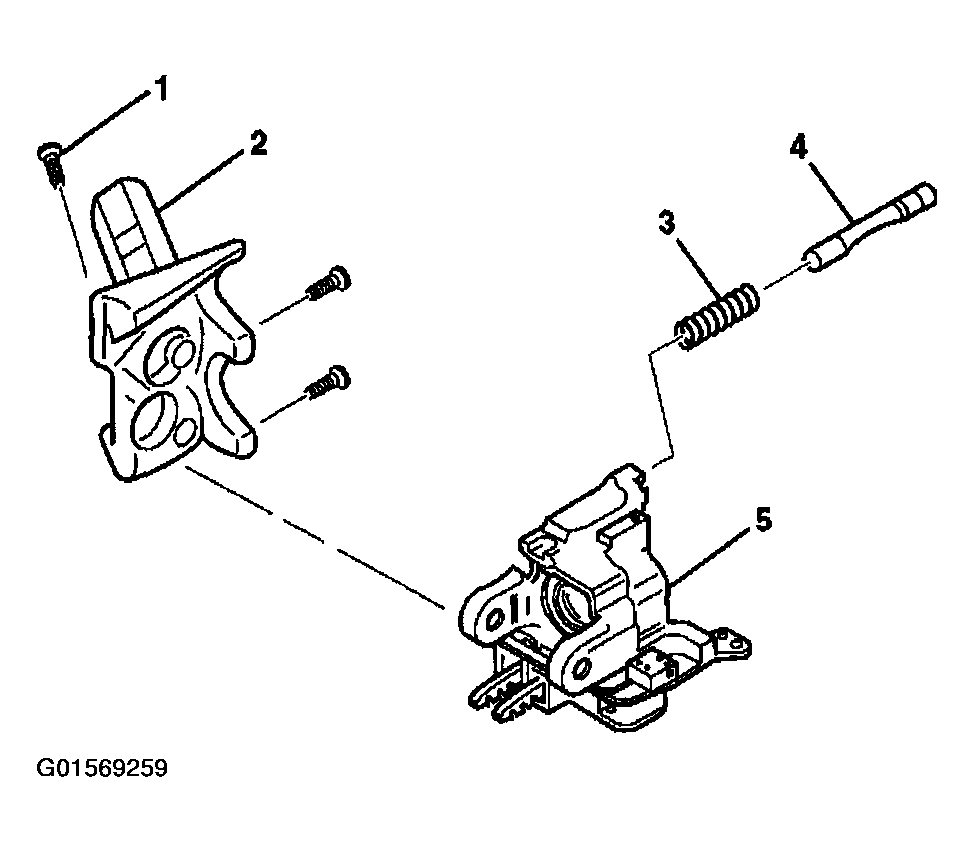

    Fig 1: Installing Lock Bolt Spring Into Steering Column Tilt Head Assembly
    G01569259Courtesy of GENERAL MOTORS CORP.
  2. Position the cutout in the lock bolt assembly (4) at the 6 o'clock position.
  3. Install the lock bolt assembly (4) into the steering column tilt head assembly (5).
  4. Push the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly (4) is flush with the steering column tilt head assembly (5).
  5. Align the ignition lock cylinder case assembly (2) with the steering column tilt head assembly (5).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Screw the 3 pan head tapping screws (1) into the ignition lock cylinder case assembly (2).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  7. Install the ignition switch (1) onto the ignition lock cylinder case assembly.
  8. Screw the 2 tapping screws (2) into the ignition switch (1).

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

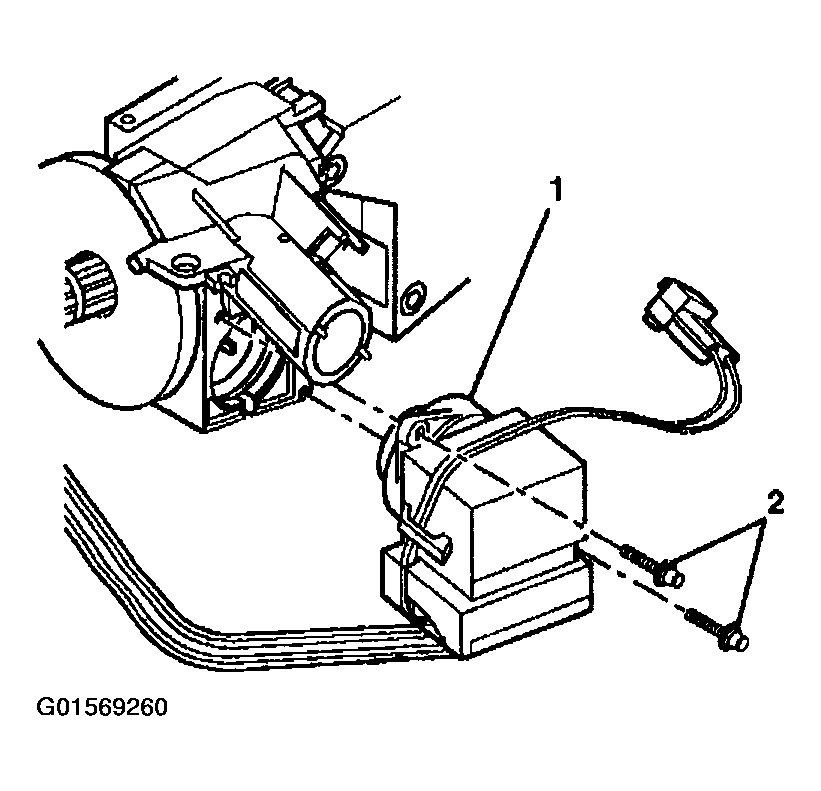

    Fig 2: Installing Ignition Switch Tapping Screws
    G01569260Courtesy of GENERAL MOTORS CORP.
  9. Install the steering wheel theft deterrent lock (2) onto the ignition lock cylinder case assembly (1).

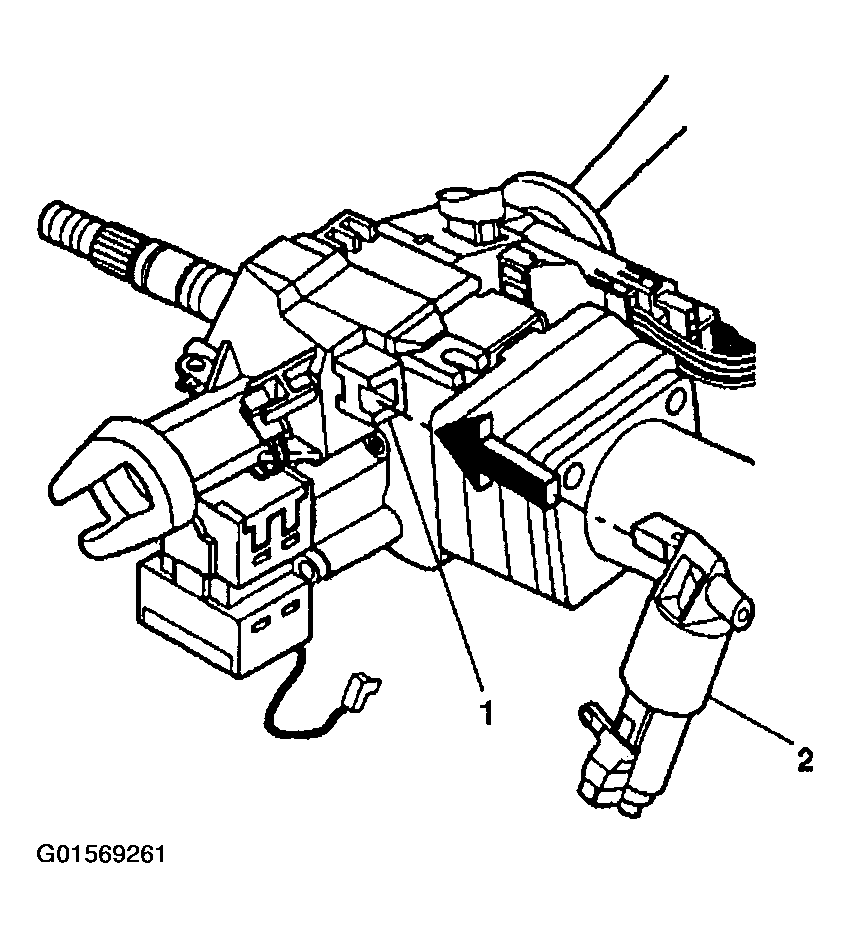

    Fig 3: Installing Steering Wheel Theft Deterrent Lock
    G01569261Courtesy of GENERAL MOTORS CORP.
  10. Screw the TORX® head screw (1) into the steering wheel theft deterrent lock (3).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  11. Reconnect the connector (2) to the steering wheel theft deterrent lock (3).

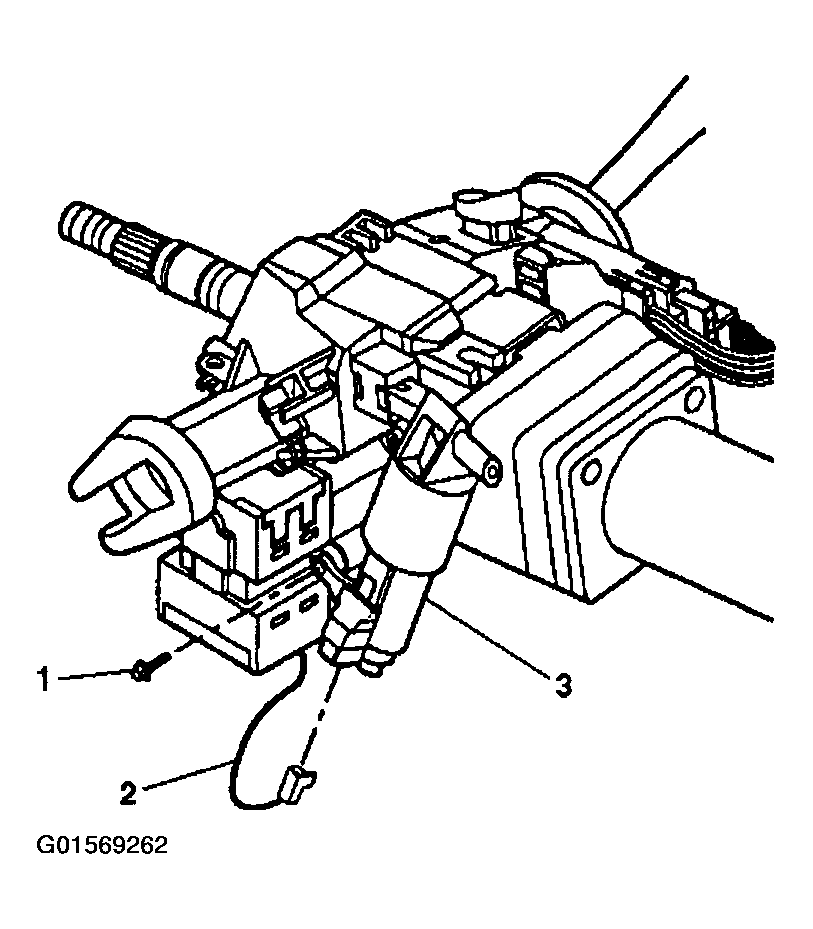

    Fig 4: Connecting Connector To Steering Wheel Theft Deterrent Lock
    G01569262Courtesy of GENERAL MOTORS CORP.
  12. Install the key alarm connector (1) onto the ignition lock cylinder case assembly (2) by doing the following:
    1. 12.1. Push the key alarm connector (1) into the ignition lock cylinder case assembly (2).
    2. 12.2. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector locks into place.
    3. 12.3. Install the steering column lock cylinder set only. Refer to IGNITION LOCK CYLINDER REPLACEMENT  .
    4. 12.4. Install the turn signal cancel cam. Refer to TURN SIGNAL CANCEL CAM AND UPPER BEARING THRUST WASHER  .
    5. 12.5. Install the steering wheel from the steering column. Refer to STEERING WHEEL REPLACEMENT  .
    6. 12.6. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.

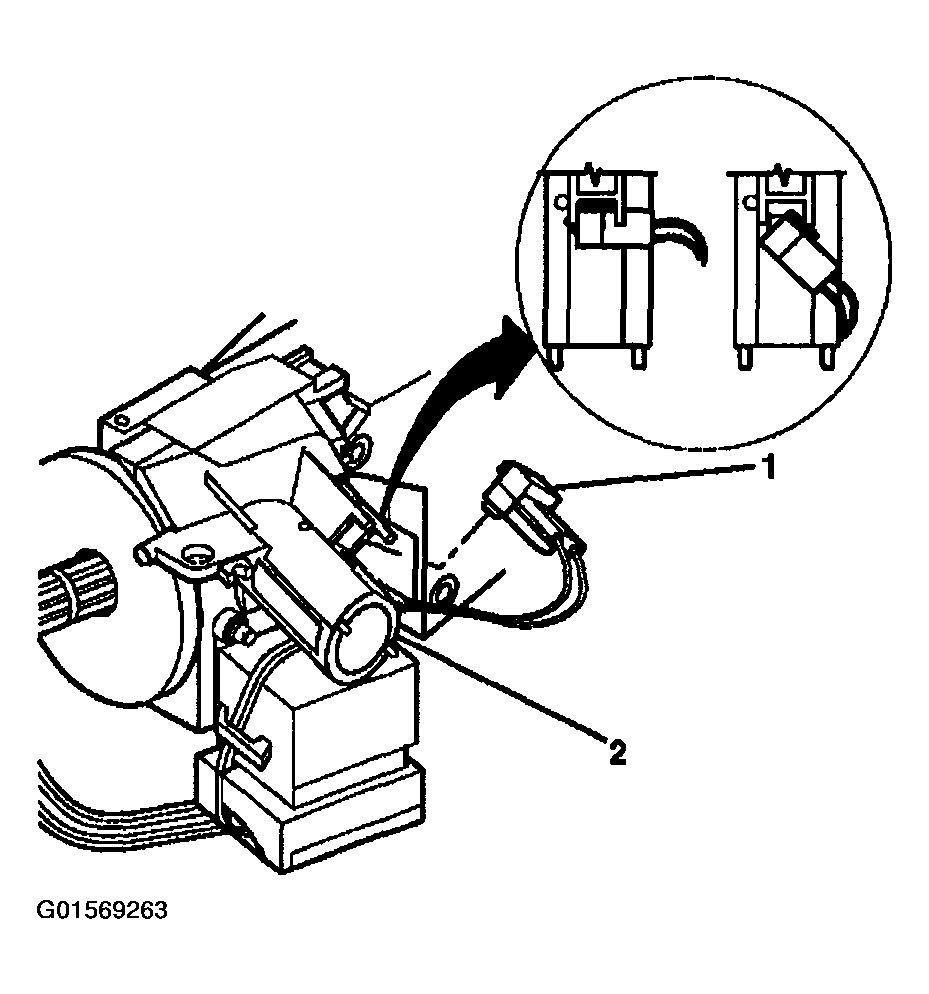

      Fig 5: Installing Key Alarm Connector
      G01569263Courtesy of GENERAL MOTORS CORP.
