Steering Column Disassembled View (Floor Shift)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

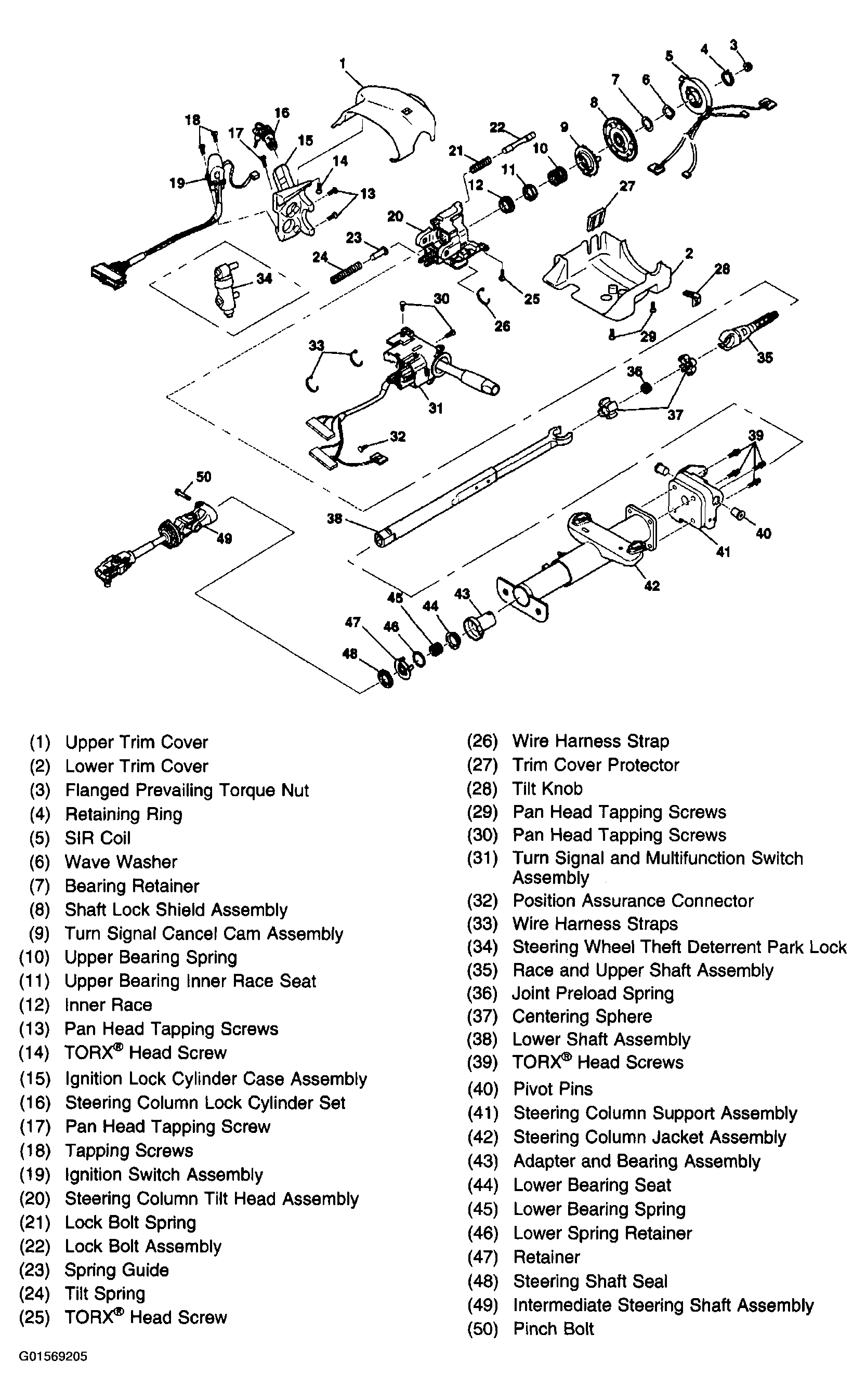

Fig 1: Exploded View Of Tilt Steering Column, Floor Shift

Courtesy of GENERAL MOTORS CORP.
