Sensor Resistance Table (Inside Air Temperature Sensor-Ohms)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

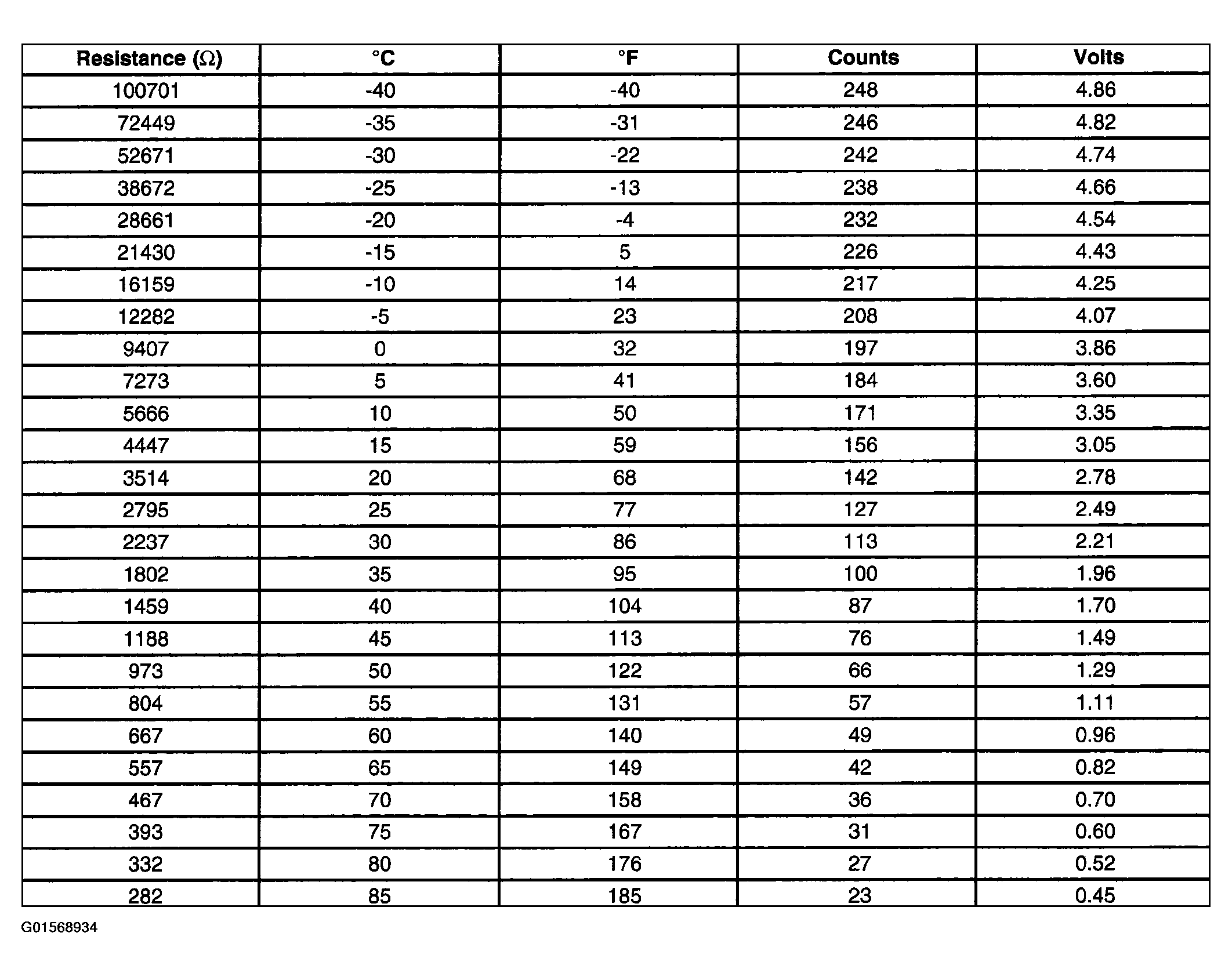

Fig 1: Inside Air Temperature Sensor Resistance (Ohm) Table
G01568934Courtesy of GENERAL MOTORS CORP.
