HVAC Vacuum Schematics

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

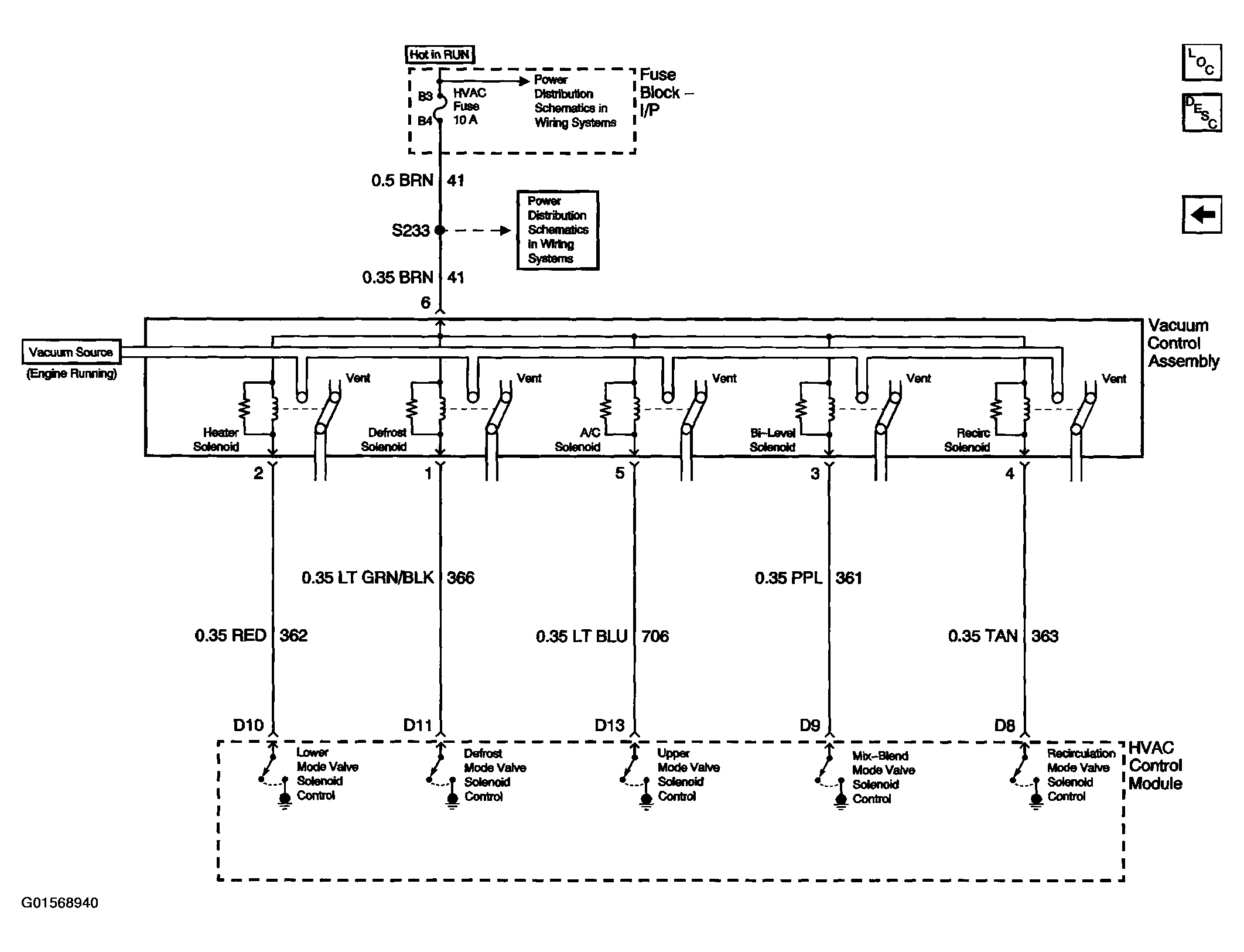

Fig 1: HVAC (Vacuum Solenoids) Schematics Diagram
G01568940Courtesy of GENERAL MOTORS CORP.

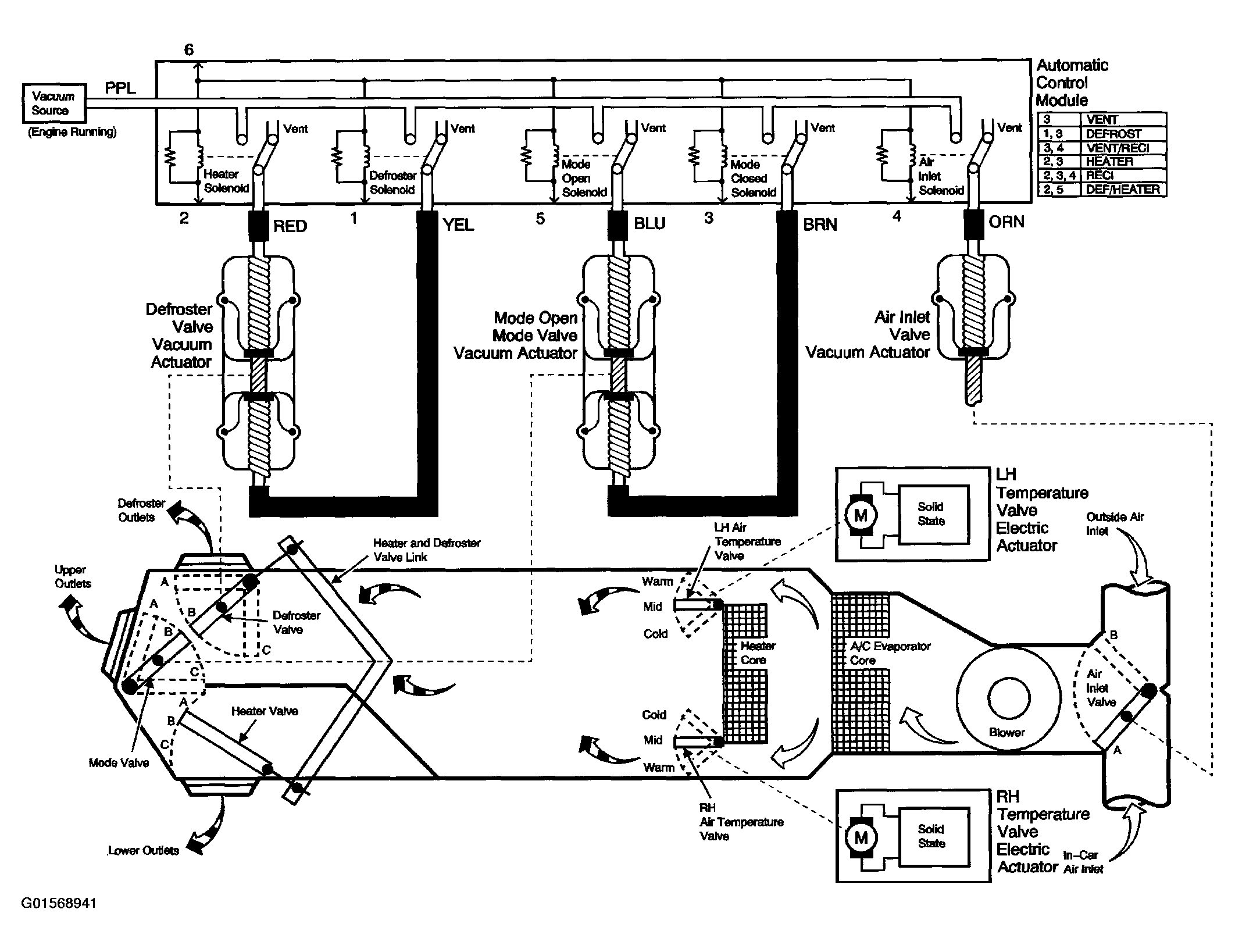

Fig 2: HVAC Vacuum Schematics Diagram
G01568941Courtesy of GENERAL MOTORS CORP.
