Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
  2. Remove the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  3. Disconnect the vacuum hoses from the vacuum tank.
    Fig 1: View Of Vacuum Hoses From Vacuum Tank
    G01569045Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that secure the vacuum tank to the HVAC module.

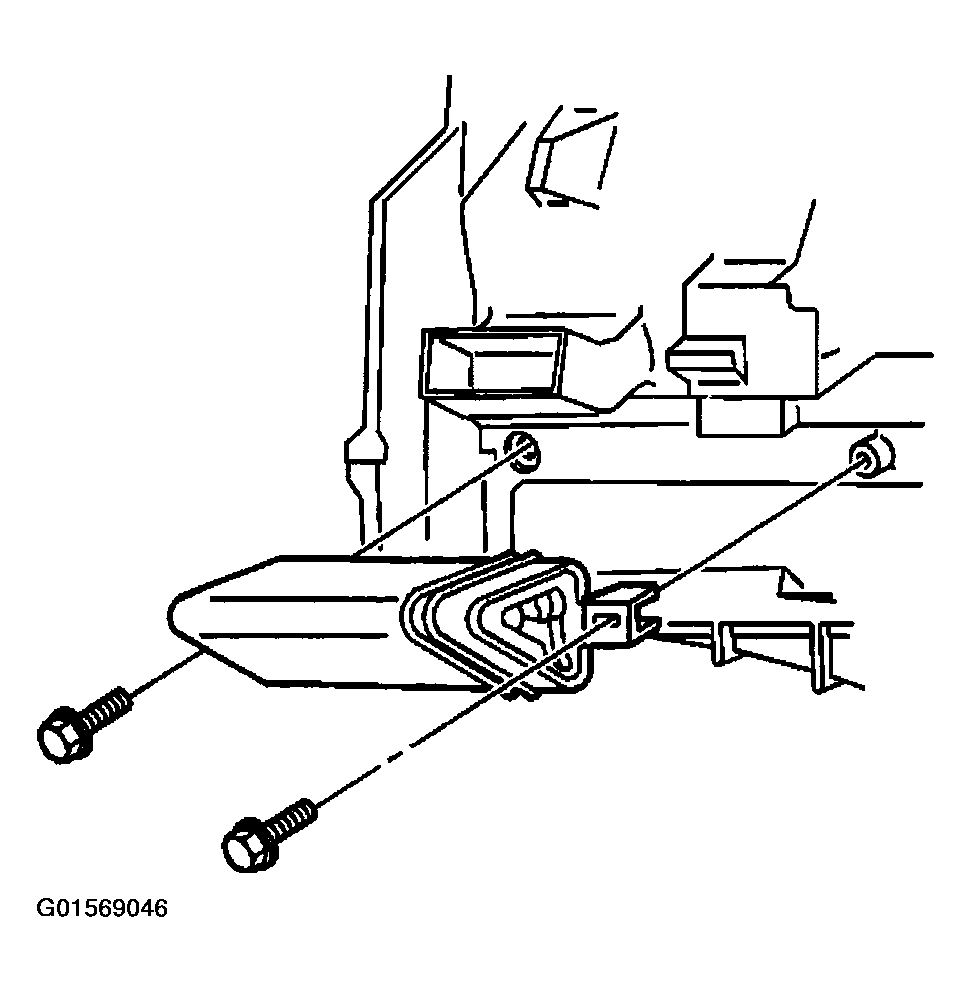

    Fig 2: Removing Vacuum Tank & Mounting Screws
    G01569046Courtesy of GENERAL MOTORS CORP.
  5. Remove the vacuum tank.
