Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vacuum tank to the HVAC control module.

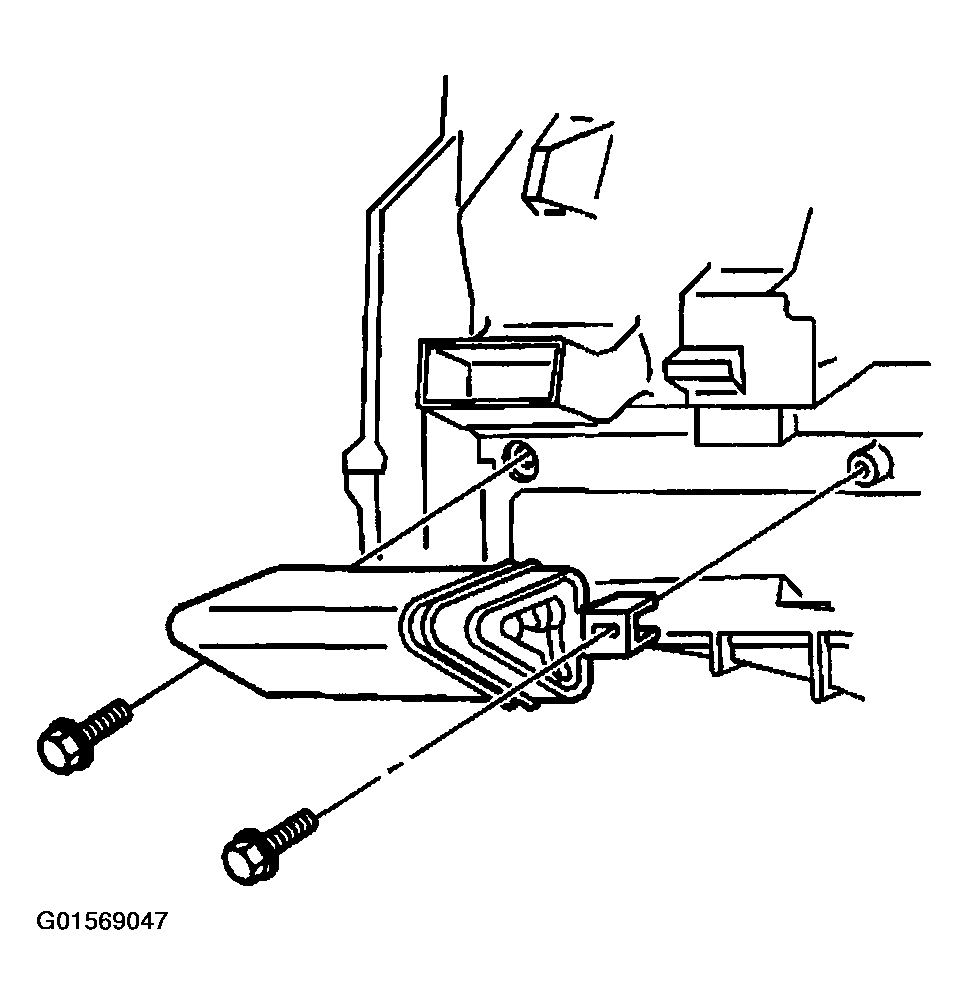

    Fig 1: Installing Vacuum Tank & Mounting Screws
    G01569047Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the vacuum tank.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  3. Connect the vacuum hoses to the vacuum tank.
    Fig 2: Connecting Vacuum Hoses To Vacuum Tank
    G01569048Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
  5. Install the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
