Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector (1) from the ambient air temperature sensor (3) that is located on the right front radiator air baffle.
  2. Remove the push-in retainer (2) from the ambient air temperature sensor.
  3. Remove the ambient air temperature sensor (3) from the radiator air baffle.

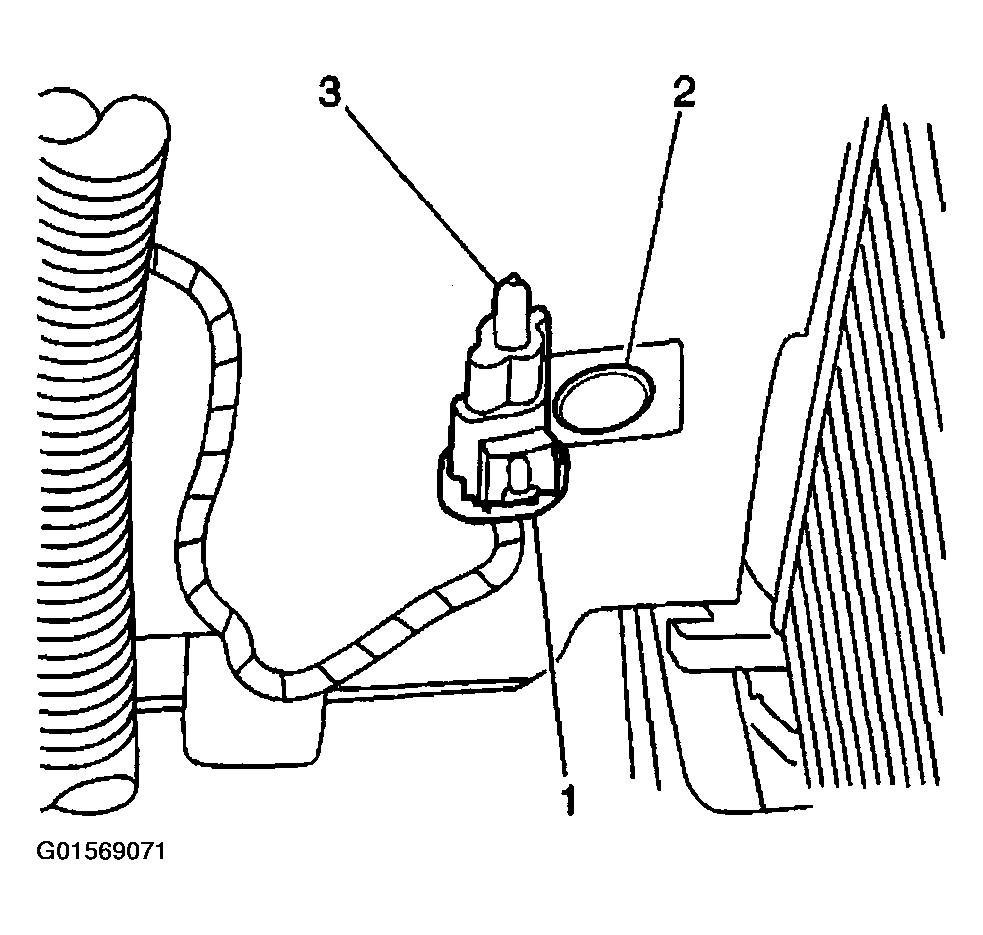

    Fig 1: View Of Ambient Air Temperature Sensor
    G01569071Courtesy of GENERAL MOTORS CORP.
