Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages and Console.
  3. Disconnect the electrical connector from the left air temperature actuator.
  4. Remove the mounting screws from the left air temperature actuator.
    Fig 1: Disconnecting Electrical Connector From Left Air Temperature Actuator
    G01569035Courtesy of GENERAL MOTORS CORP.
  5. Remove the left air temperature actuator.

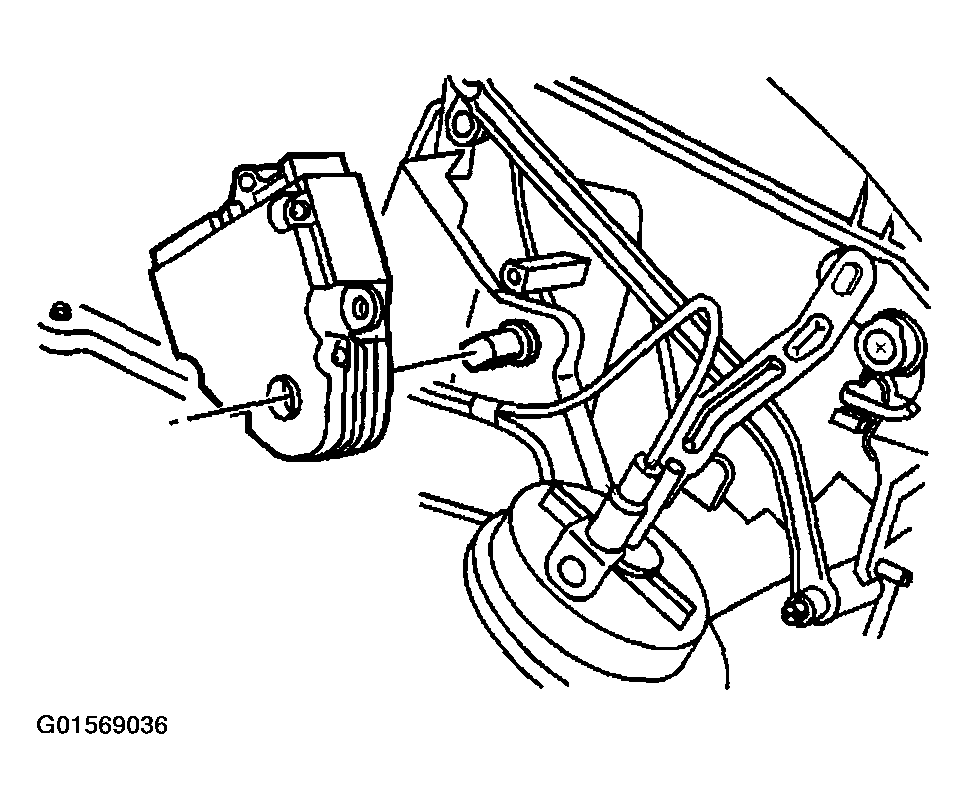

    Fig 2: Removing Left Air Temperature Actuator
    G01569036Courtesy of GENERAL MOTORS CORP.
