Vacuum Control System Diagnostic

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

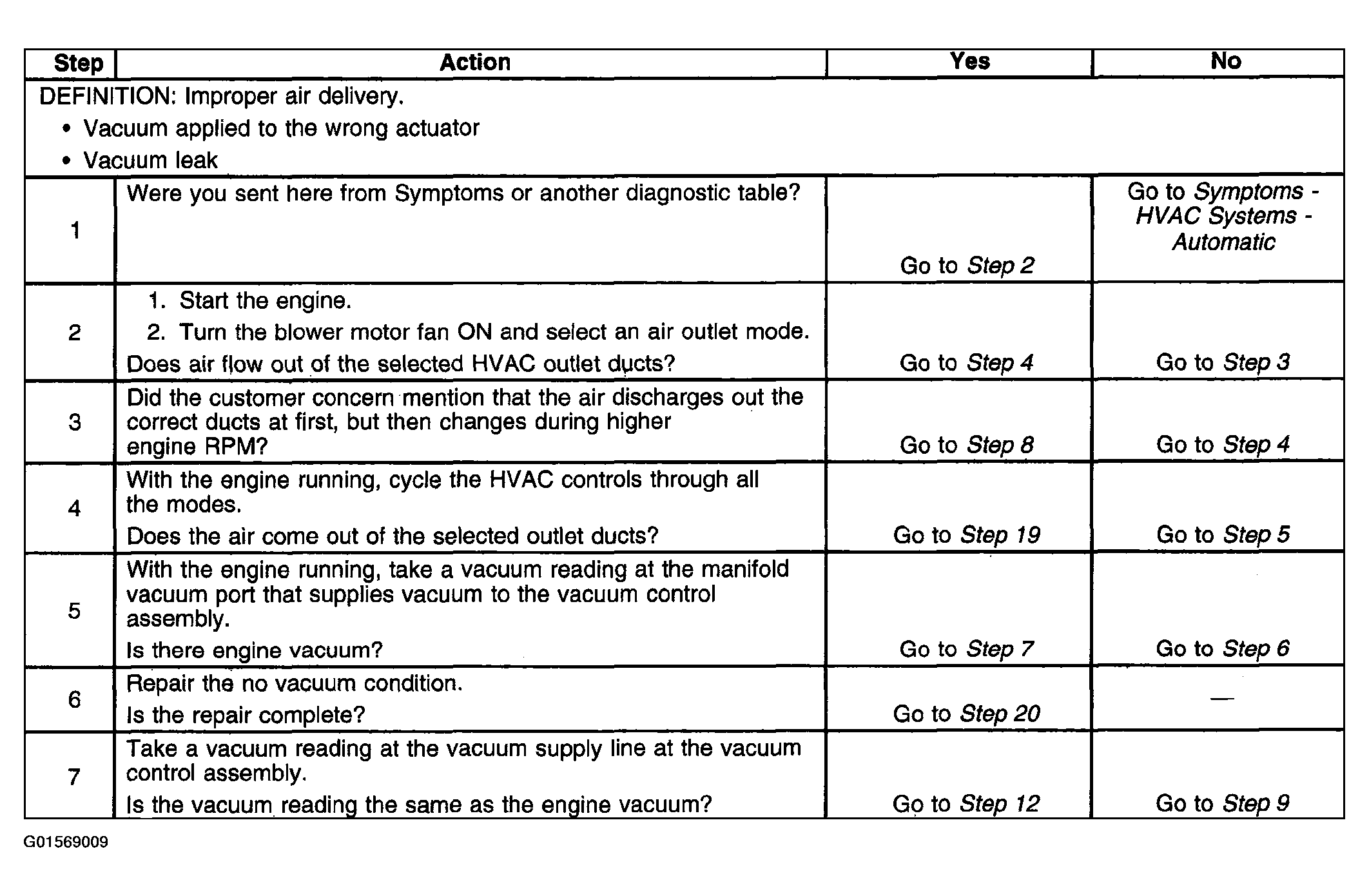

Fig 1: Vacuum Control System (Steps 1 - 7)
G01569009Courtesy of GENERAL MOTORS CORP.

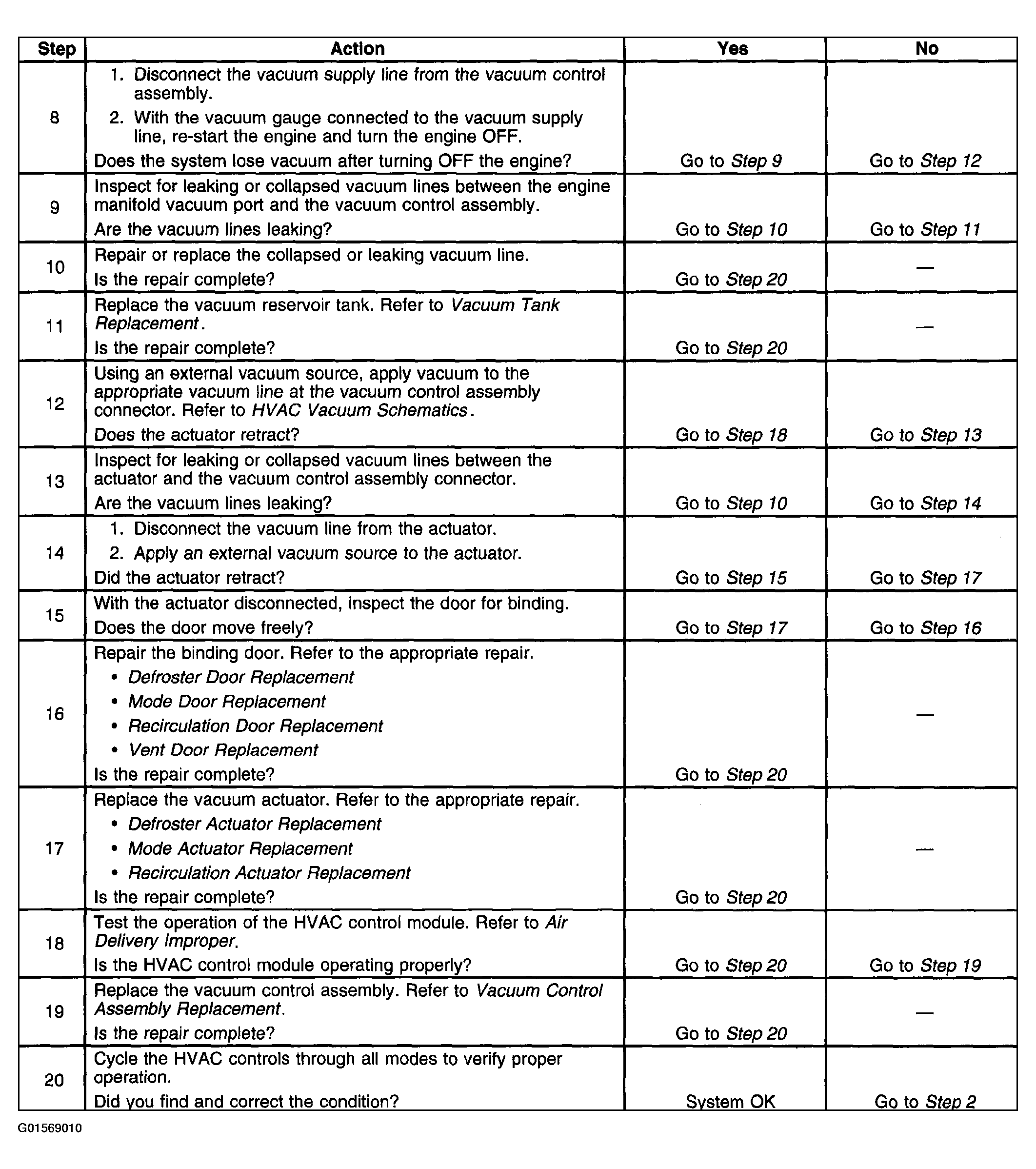

Fig 2: Vacuum Control System (Steps 8 - 20)
G01569010Courtesy of GENERAL MOTORS CORP.
