Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster actuator to the defroster door arm and snap into place on the HVAC module.

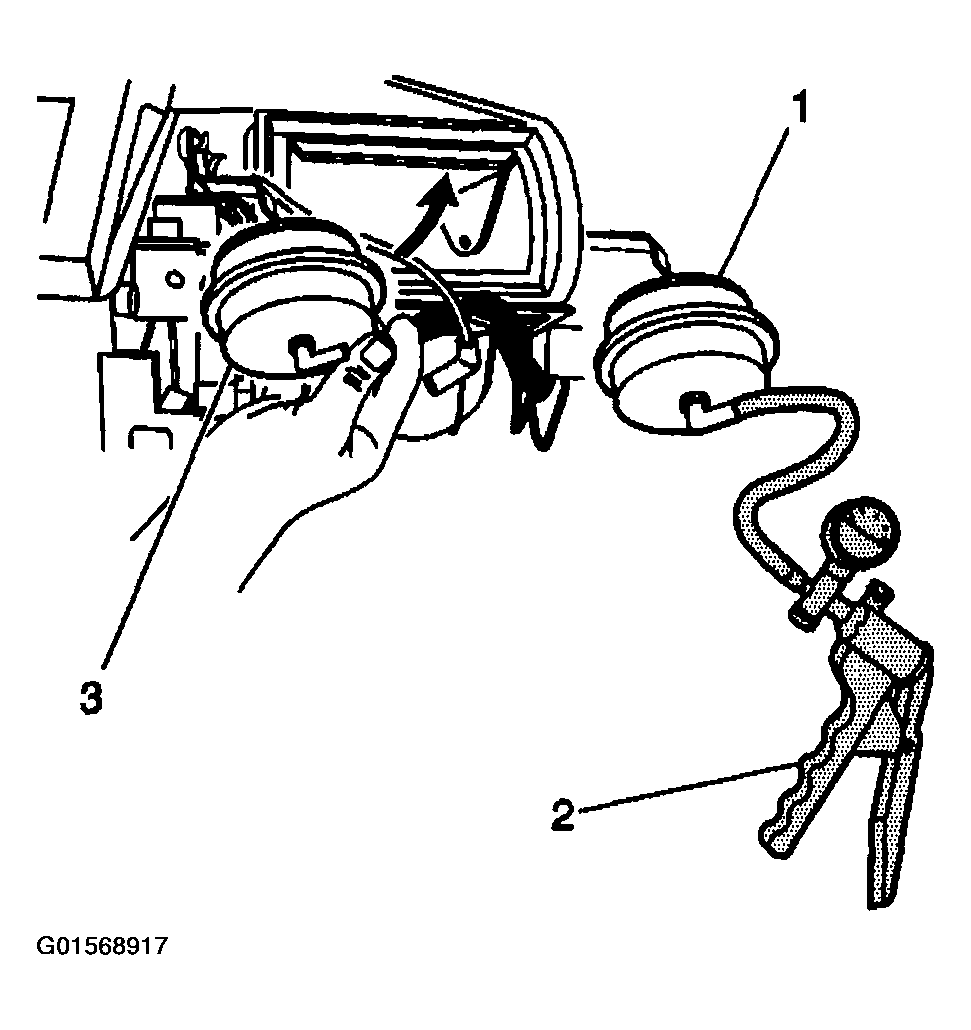

    Fig 1: Installing Defroster Actuator To Defroster Door Arm
    G01568917Courtesy of GENERAL MOTORS CORP.
  2. Connect the vacuum line to the actuator.
  3. Remove the hand vacuum pump (2) and reinstall the vacuum line to the recirculation actuator.
  4. Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL, (I/P) in Instrument Panel, Gages and Console.
  5. Install the right instrument insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
