Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right air temperature actuator, then align the slots in the electric actuator driver to the flats on the shaft.
  2. Align the locating hole to the alignment on the HVAC module case.
  3. Slide the actuator driver on to the shaft. The actuator driver should seat completely on the shaft and the mounting holes should be flush with the mounting bolts on the HVAC module case.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to the right air temperature actuator.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

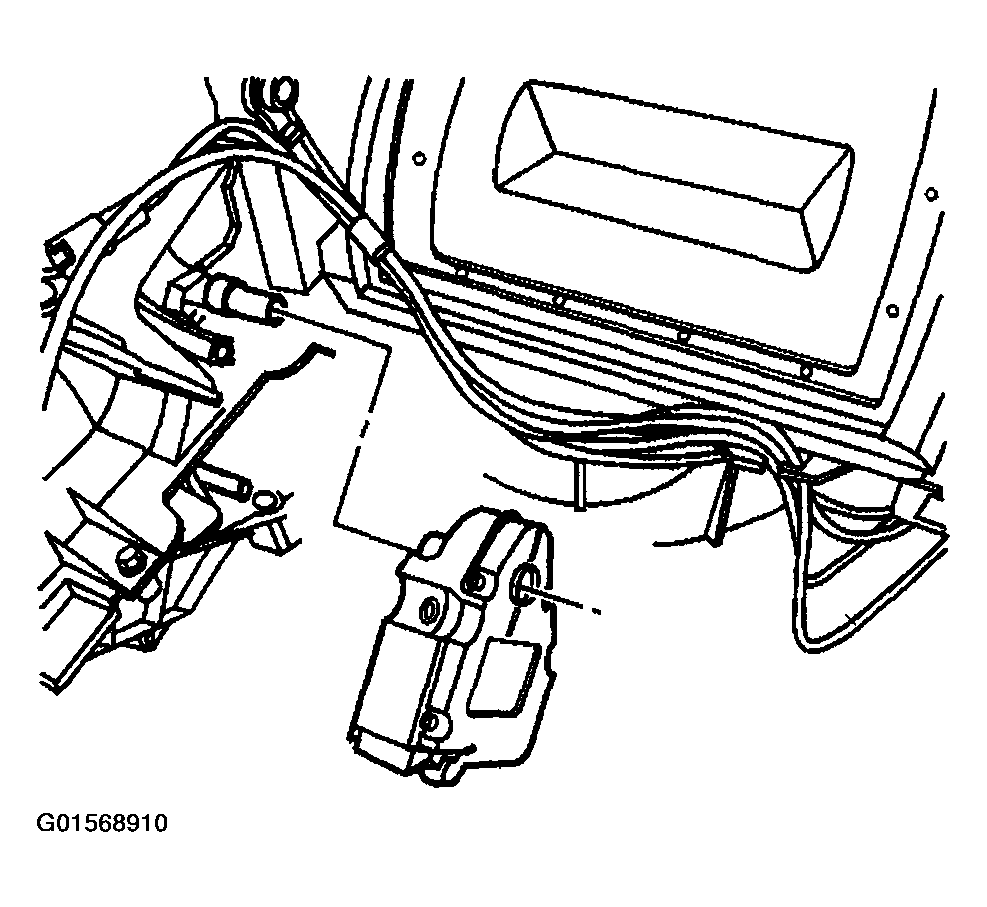

    Fig 1: Installing Right Air Temperature Actuator
    G01568910Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the right air temperature actuator.
  6. Install the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  7. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  8. Calibrate the actuator. Refer to RE-CALIBRATING ACTUATORS .

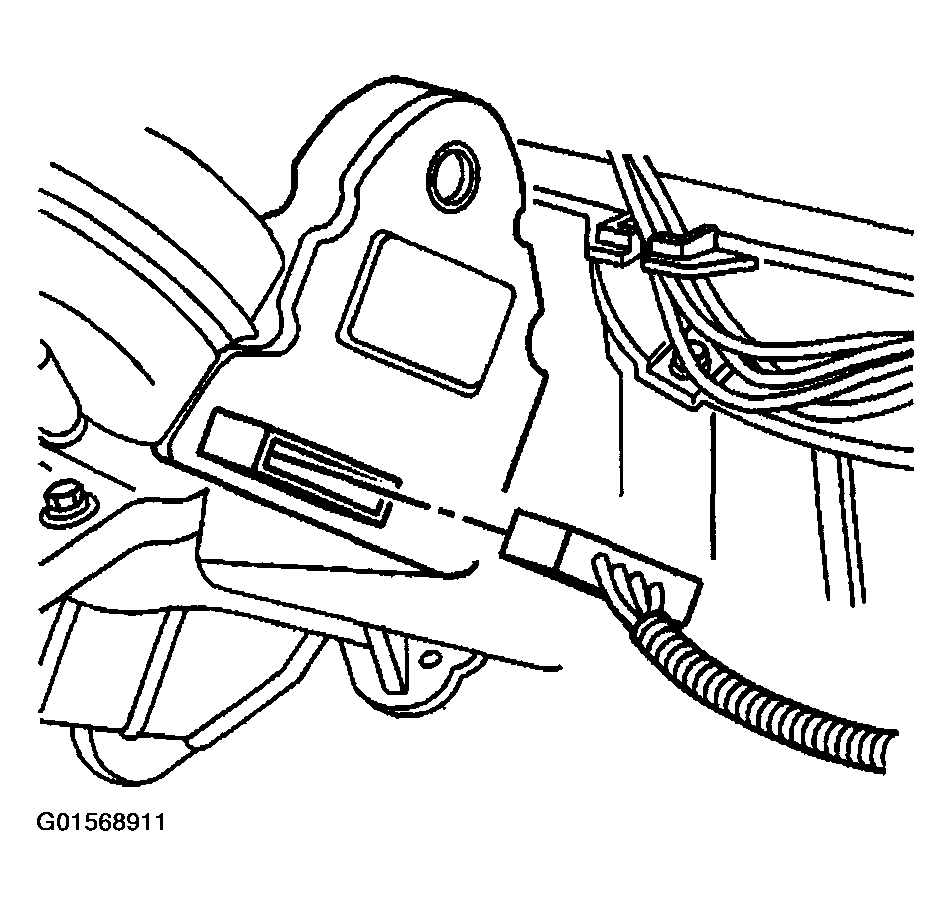

    Fig 2: Connecting Electrical Connector To Right Air Temperature Actuator
    G01568911Courtesy of GENERAL MOTORS CORP.
