Section 1667 (HVAC Systems - Manual)
>>
Diagnostic Information and Procedures
>>
Vacuum Control System Diagnostic
Vacuum Control System Diagnostic
WARNING:
This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

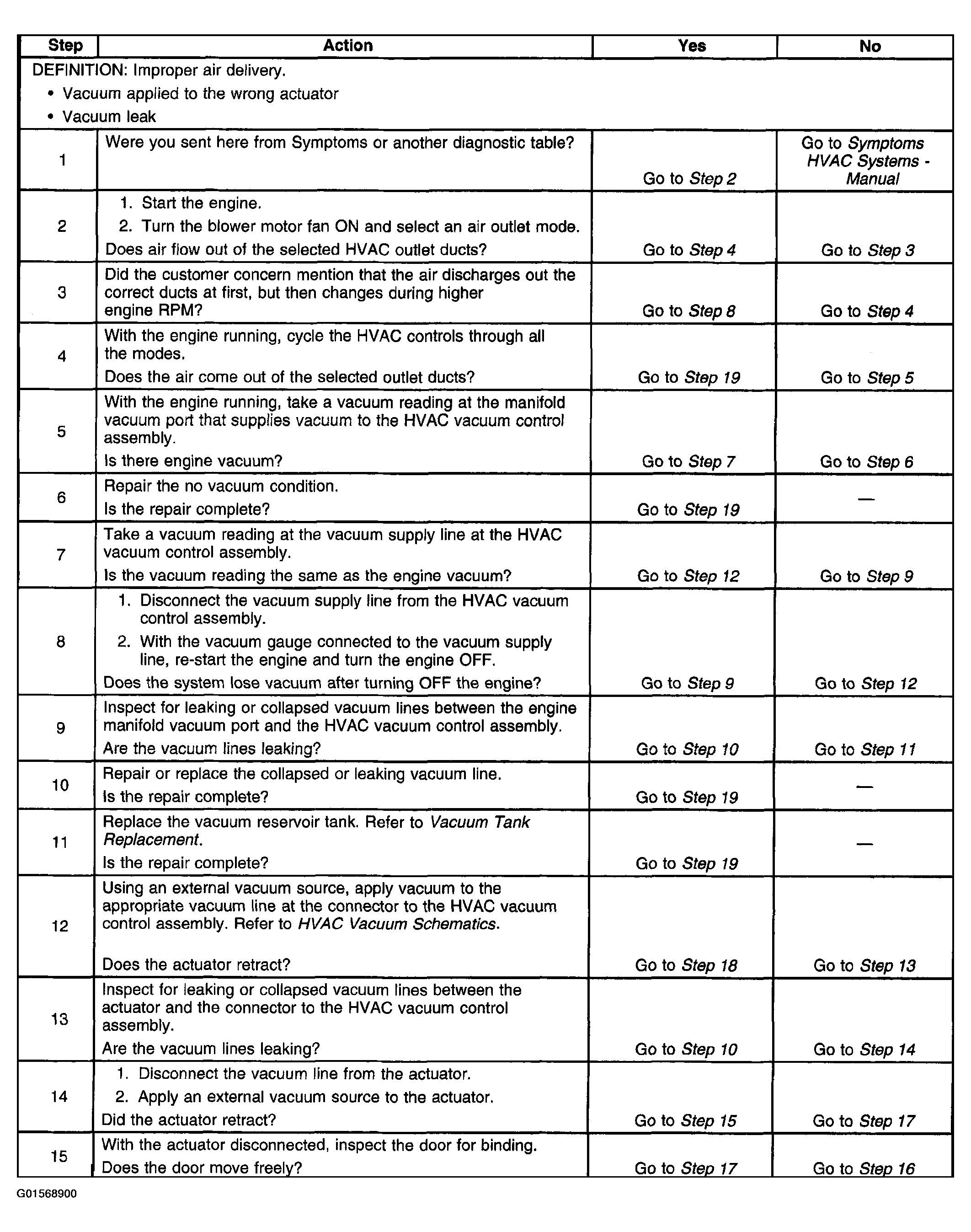

Fig 1: Vacuum Control System (Steps 1 Of 15)
Courtesy of GENERAL MOTORS CORP.

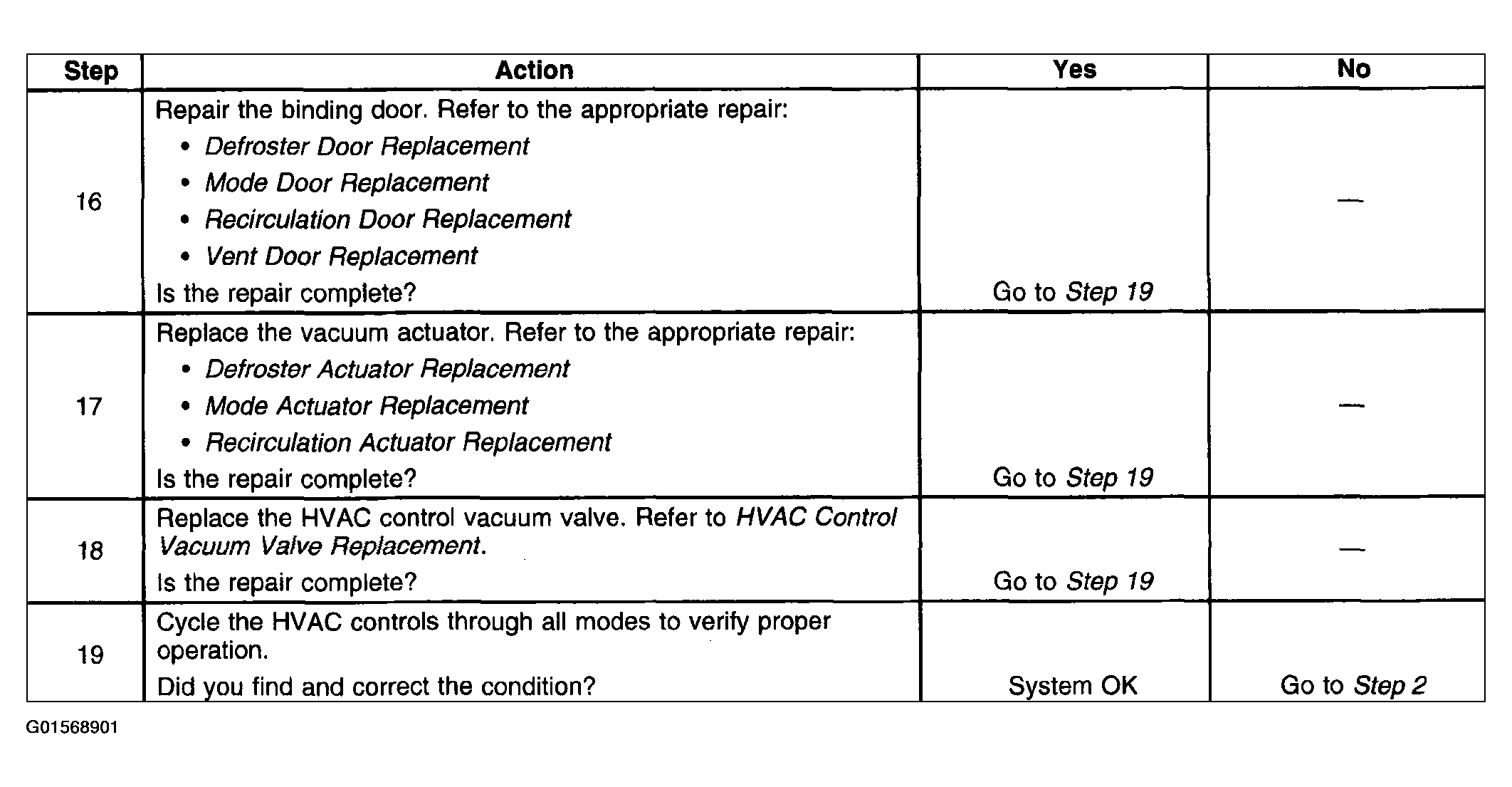

Fig 2: Vacuum Control System (Steps 16 Of 19)
Courtesy of GENERAL MOTORS CORP.
