Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel trim pad. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  2. Remove the passenger side SIR inflator module. Refer to AIR BAG MODULES
  3. Remove the brake pedal. Refer to BRAKE PEDAL ASSEMBLY in Disc & Drum.
  4. Disconnect any ground wires, as necessary.
  5. Remove the nuts and bolts from the steering column support bracket.
  6. Remove the steering column support bracket from the cross vehicle beam.
  7. Remove the screws from the right and left side air distribution ducts.

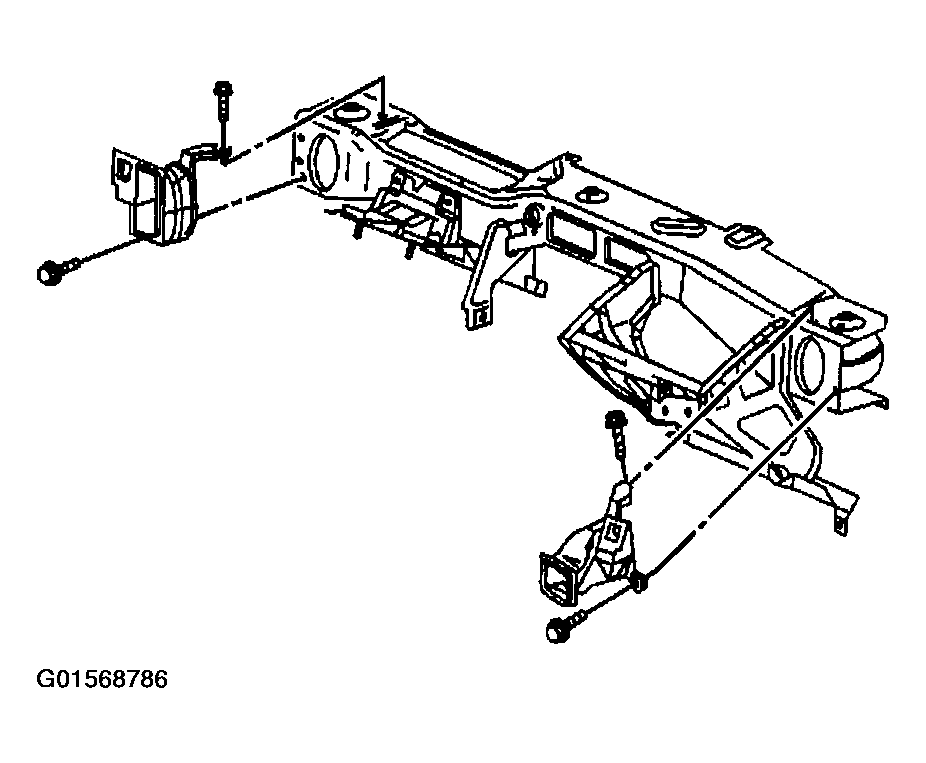

    Fig 1: Removing Screws From Right & Left Side Air Distribution Ducts
    G01568786Courtesy of GENERAL MOTORS CORP.
  8. Remove the air distribution ducts.
  9. Remove the bolts from the relay bracket and position the relay bracket aside.

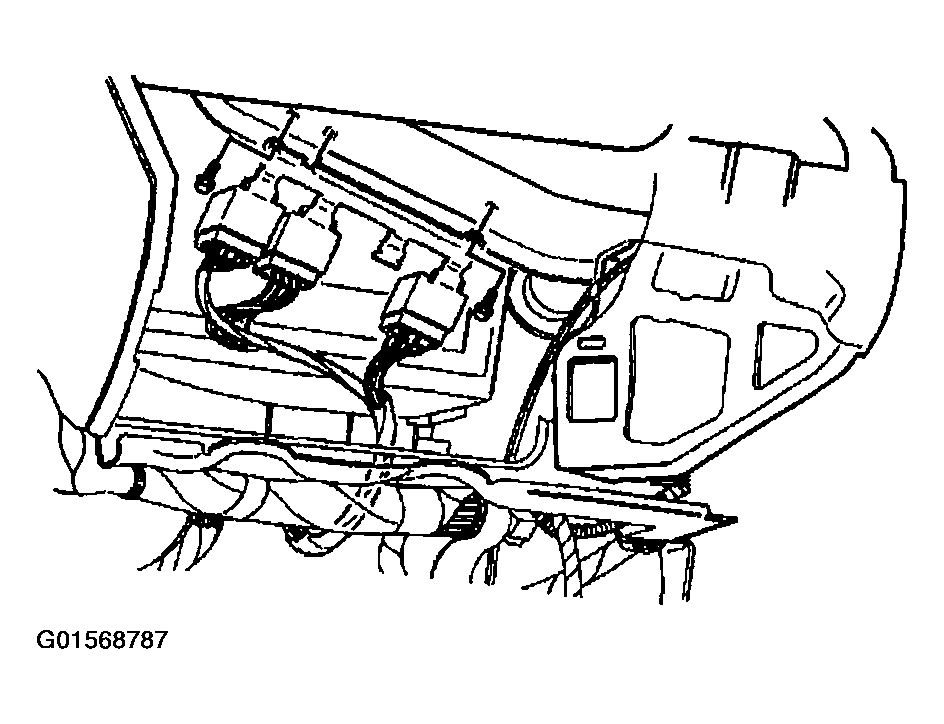

    Fig 2: Removing Bolts From Relay Bracket
    G01568787Courtesy of GENERAL MOTORS CORP.
  10. Remove the bolts from the BCM bracket and position the BCM bracket aside.

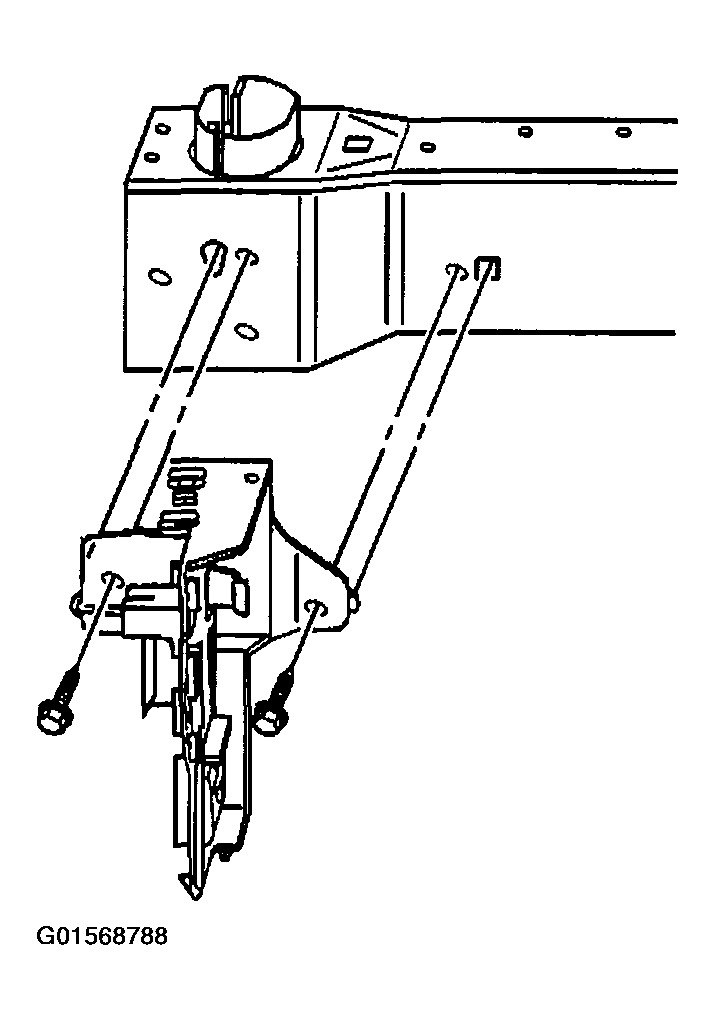

    Fig 3: Removing Bolts From BCM Bracket
    G01568788Courtesy of GENERAL MOTORS CORP.
  11. Release the wiring harness retaining clips from the cross vehicle beam and position the wiring harness aside.
  12. Remove the two screws below the fuse block that hold the main harness connector to the cross vehicle beam.
  13. Remove the bolts from the center support bracket of the HVAC module.

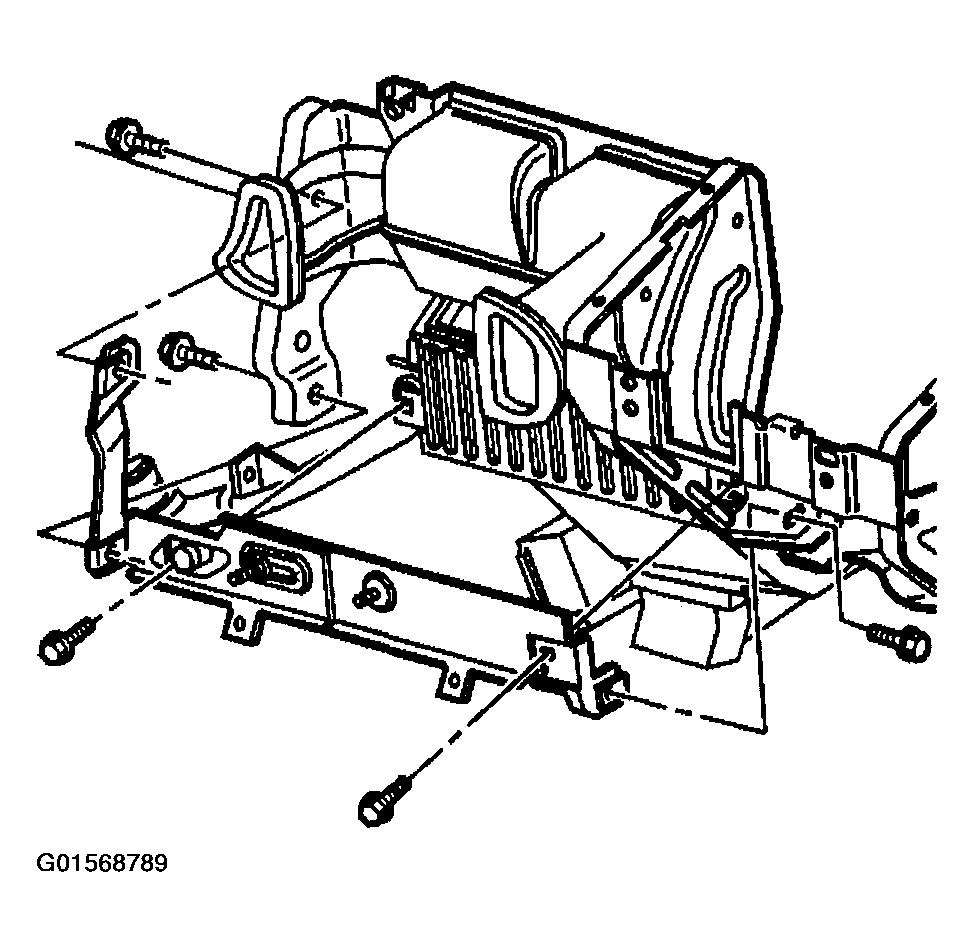

    Fig 4: Removing Center Support Bracket & Mounting Bolts Of HVAC Module
    G01568789Courtesy of GENERAL MOTORS CORP.
  14. Remove the center support bracket of the HVAC module.

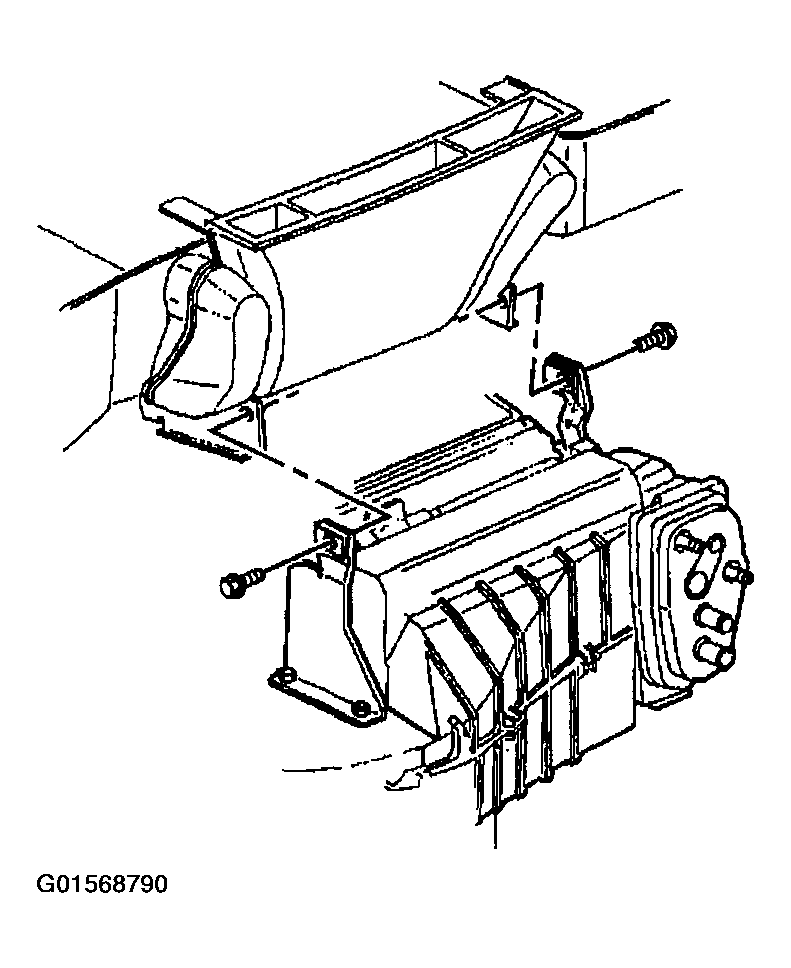

  15. Remove the bolts from the upper support brackets of the HVAC module.
    Fig 5: Removing Bolts From Upper Support Brackets Of HVAC Module
    G01568790Courtesy of GENERAL MOTORS CORP.
  16. Remove the bolts which secure the left cross vehicle beam to the hinge pillar.

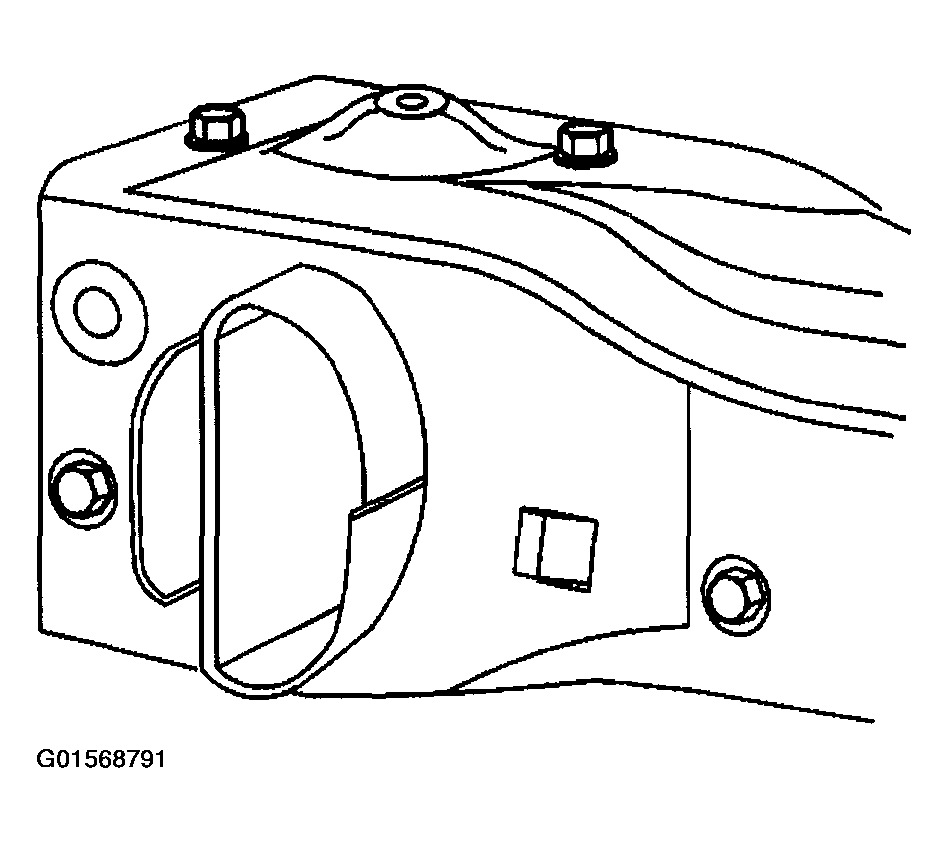

    Fig 6: View Of Bolts Which Secure Left Cross Vehicle Beam To Hinge Pillar
    G01568791Courtesy of GENERAL MOTORS CORP.
  17. Remove the bolts which secure the right cross vehicle beam to the hinge pillar.

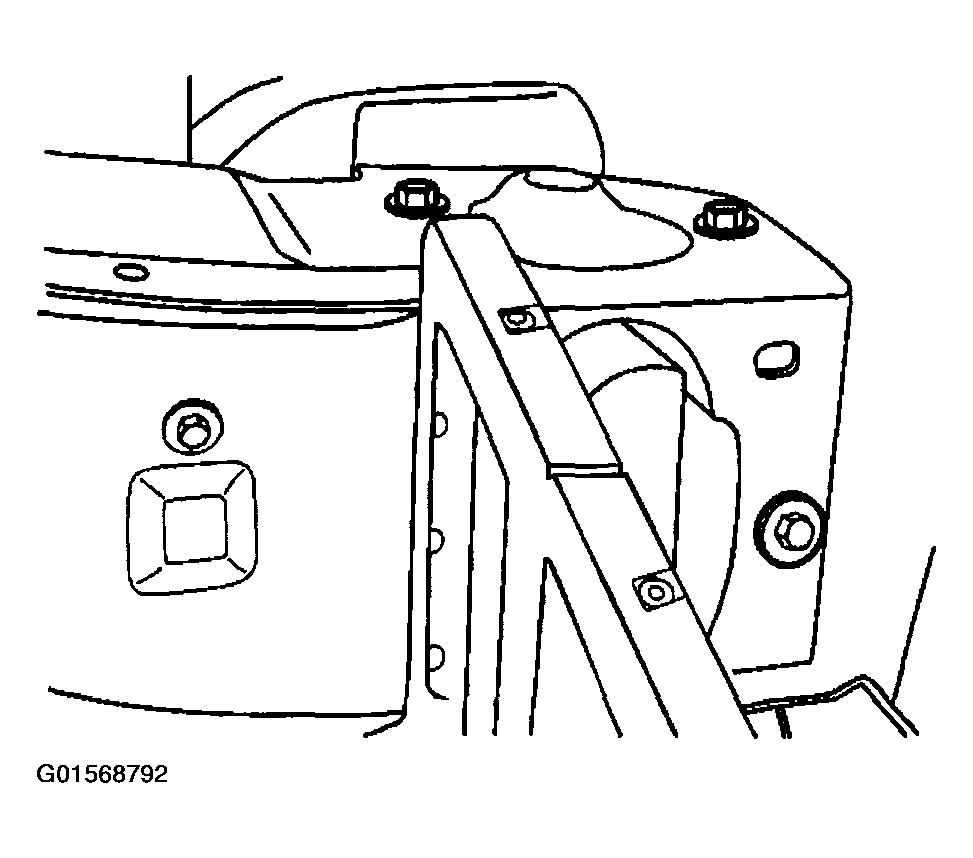

    Fig 7: Locating Bolts Which Secure Right Cross Vehicle Beam To Hinge Pillar
    G01568792Courtesy of GENERAL MOTORS CORP.
  18. Remove the bolt (1) from the cross vehicle beam.

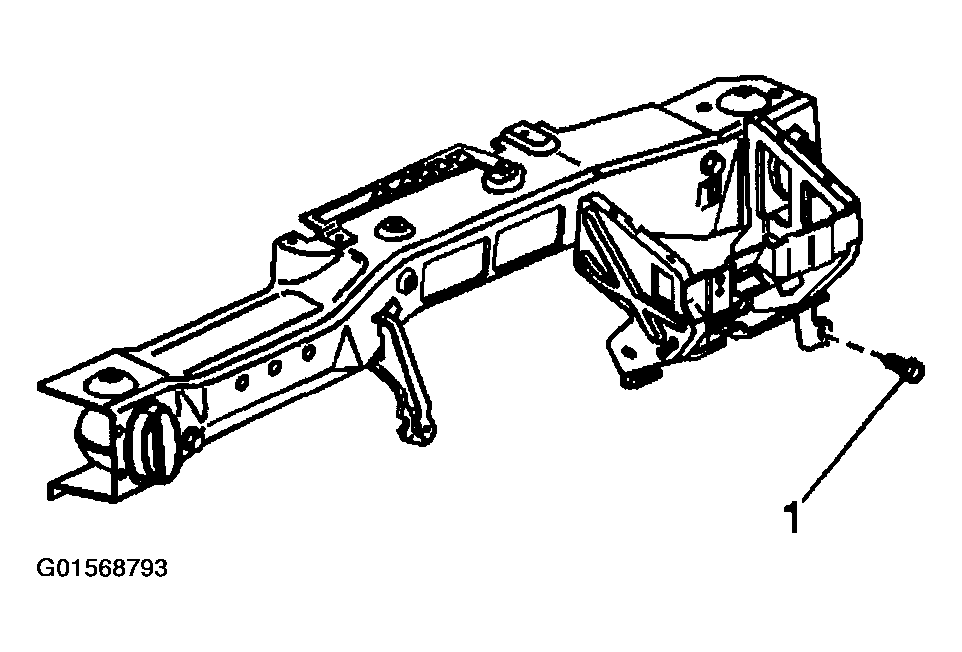

    Fig 8: Removing Bolt From Cross Vehicle Beam
    G01568793Courtesy of GENERAL MOTORS CORP.
  19. Remove the cross vehicle beam from the vehicle.
  20. Disconnect the vacuum lines from the mode actuator.
  21. Lift the lock tab up (1) to remove the actuator.

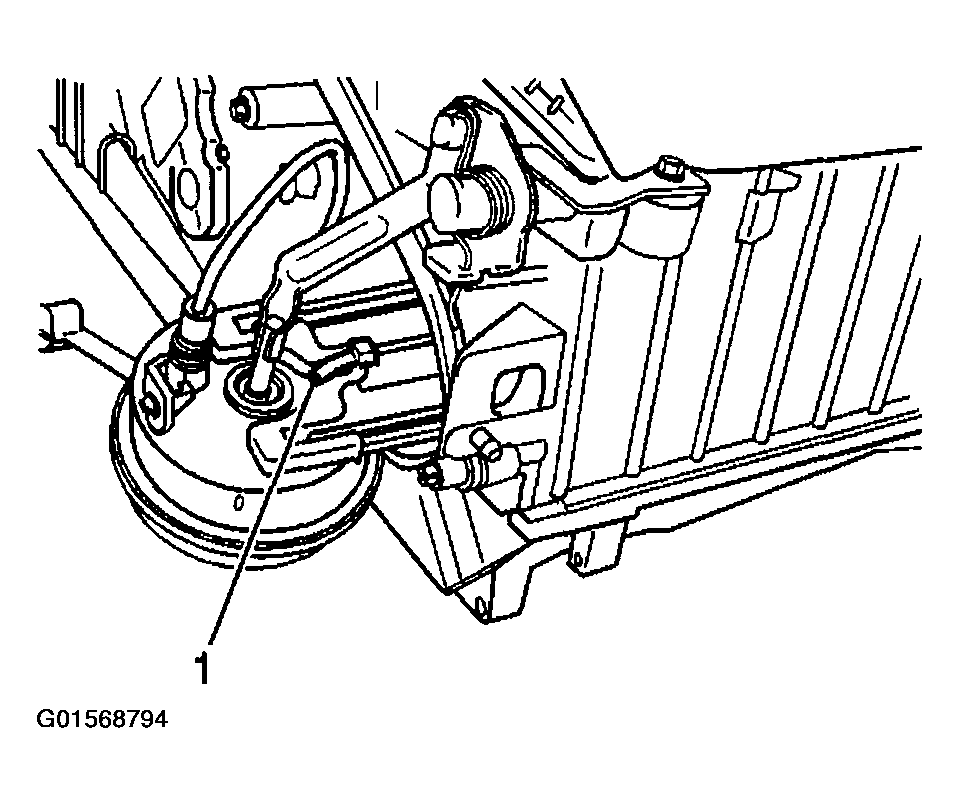

    Fig 9: Lifting Lock Tab Up For Removing Actuator
    G01568794Courtesy of GENERAL MOTORS CORP.
  22. Remove the mode actuator off the slides of the HVAC module assembly.
  23. Disconnect the actuator pushrod from the mode door lever and remove the actuator.

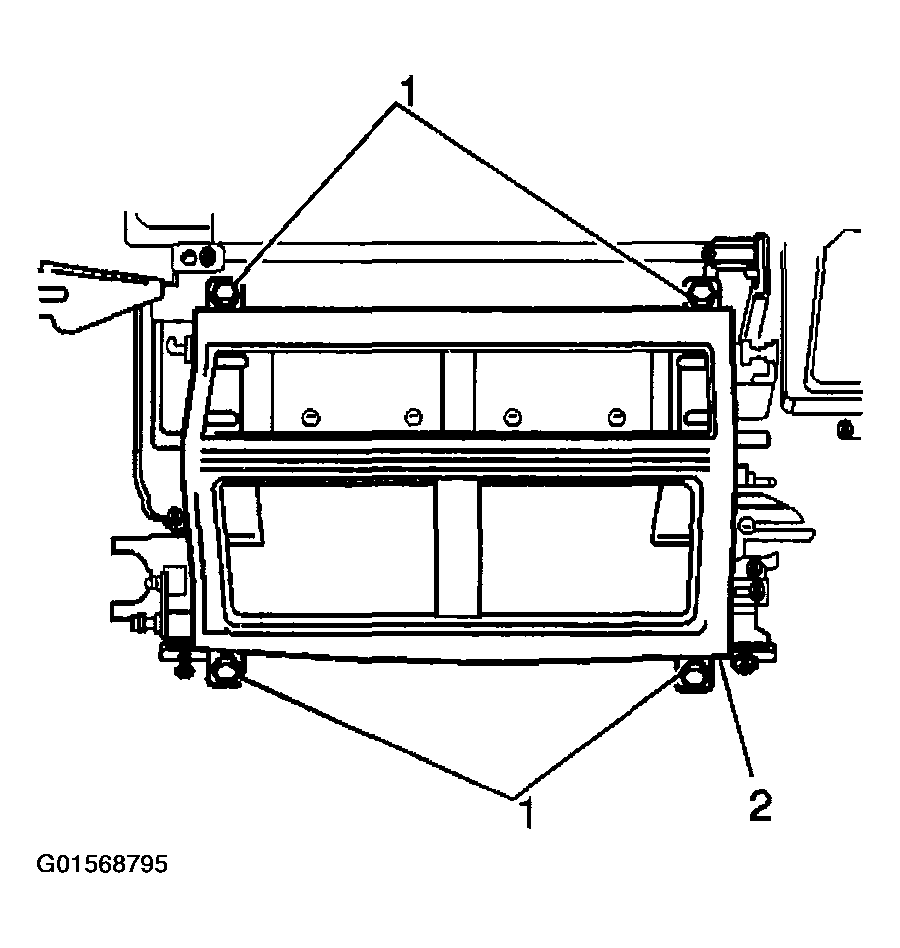

  24. Remove the air distribution case cover retaining screws (1).
    Fig 10: Removing Air Distribution Case Cover & Retaining Screws
    G01568795Courtesy of GENERAL MOTORS CORP.
  25. Remove the air distribution case cover (2).
  26. Remove and discard the air distribution case seal.

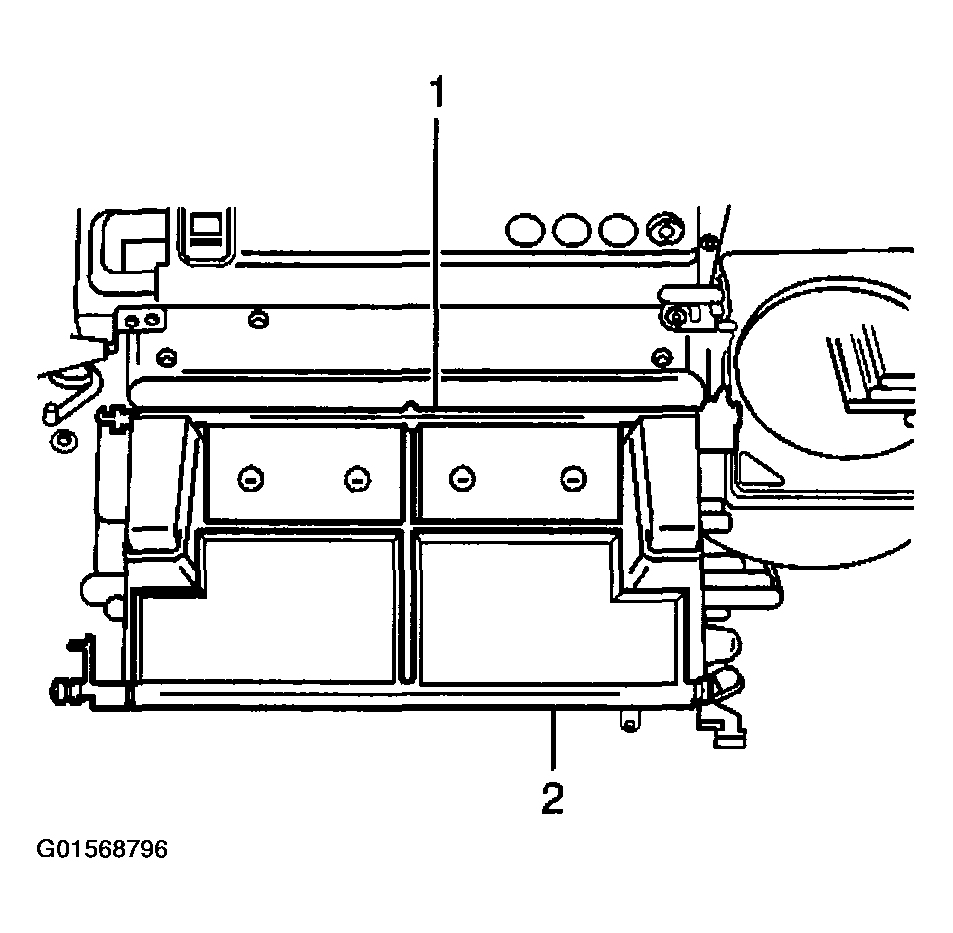

  27. Remove the mode door (2).
    Fig 11: View Of Mode Door
    G01568796Courtesy of GENERAL MOTORS CORP.
