Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C pressure sensor to the condenser tube.
  2. Install the new O-ring onto the condenser tube. Refer to O-RING REPLACEMENT  .
  3. Install the condenser tube to the support clip.

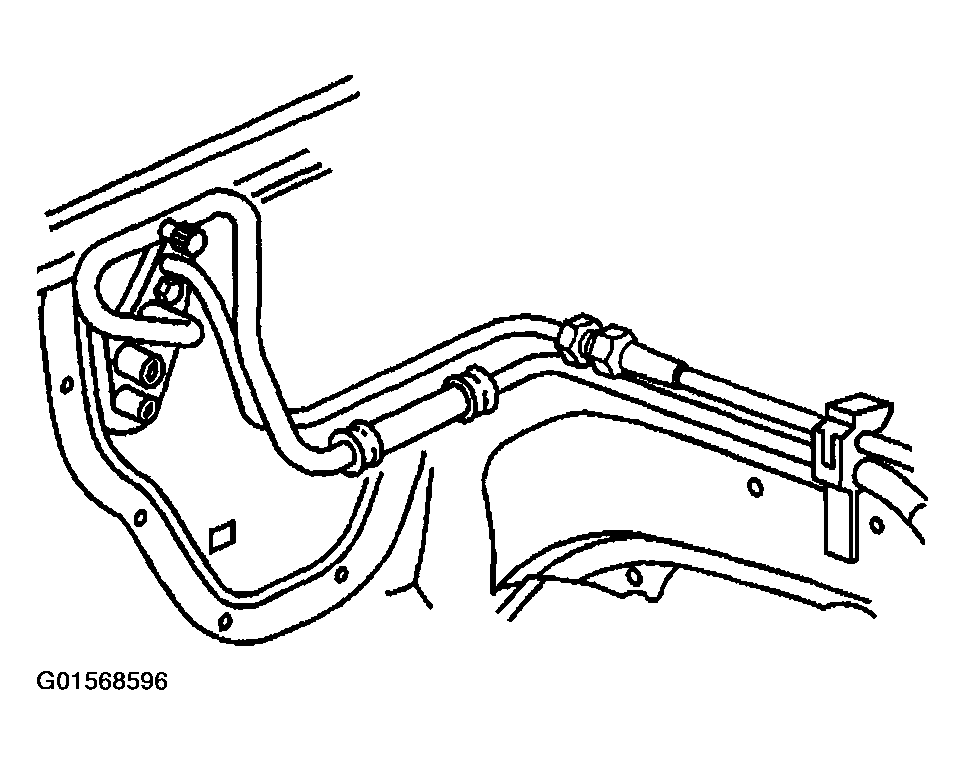

    Fig 1: View Of Condenser Tube & Support Clip
    G01568596Courtesy of GENERAL MOTORS CORP.
  4. Connect the evaporator tube to the condenser tube.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten the evaporator tube nut.

    Tighten

    Tighten the nut to 27 N.m (20 lb ft).

  6. Connect the A/C refrigerant pressure sensor electrical connector.
  7. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  8. Connect the condenser tube to the condenser.
  9. Tighten the condenser tube nut.

    Tighten

    Tighten the nut to 27 N.m (20 lb ft).

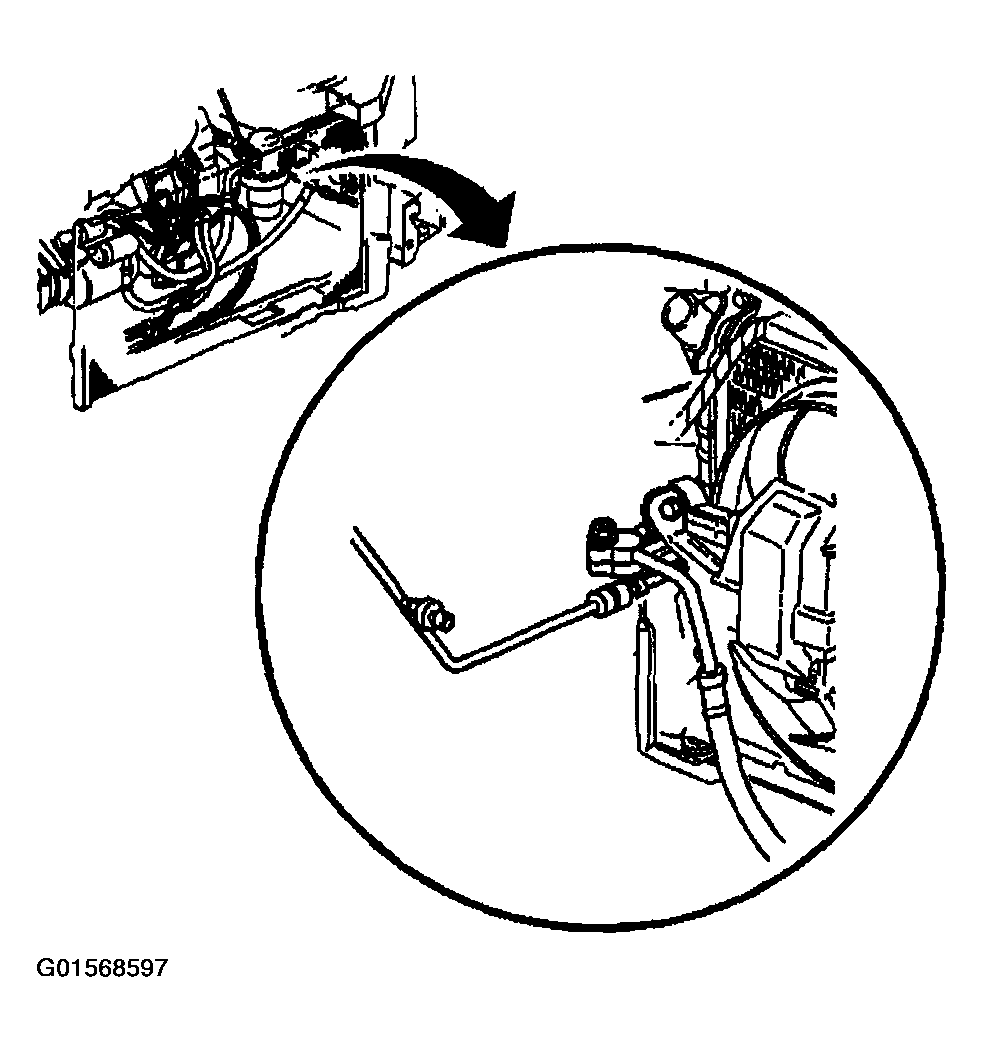

    Fig 2: Connecting Condenser Tube To Condenser
    G01568597Courtesy of GENERAL MOTORS CORP.
  10. Install the lower radiator air baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER in Engine Cooling.
  11. Install the vacuum brake booster. Refer to VACUUM BRAKE BOOSTER in Disc & Drum.
  12. Install the air cleaner assembly.
  13. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  14. Leak test the fittings of the component using J 39400-A  .
