Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the condenser, add refrigerant oil to the condenser. Refer to REFRIGERANT SYSTEM CAPACITIES  for system capacity information.
  2. Install the upper rubber mounts on the condenser.

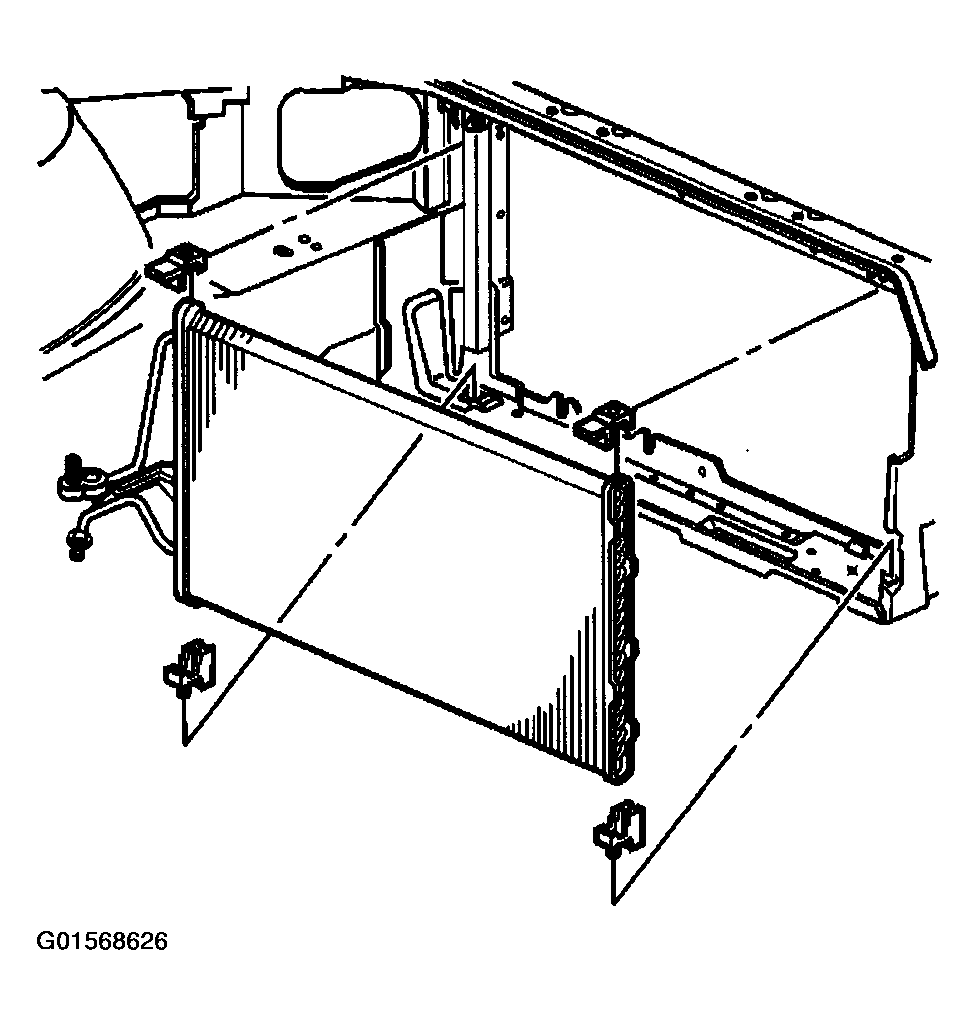

    Fig 1: Installing Upper Rubber Mounts On Condenser
    G01568626Courtesy of GENERAL MOTORS CORP.
  3. Install the lower ends of the condenser in to the lower rubber mounts.
    IMPORTANT: Ensure the upper rubber mounts stay in place on the condenser.
  4. Tilt the top of the condenser in to place.
  5. Install the new O-ring seals onto the A/C compressor hose and the condenser tube. Refer to O-RING REPLACEMENT  .
  6. Connect the condenser tube to the condenser.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

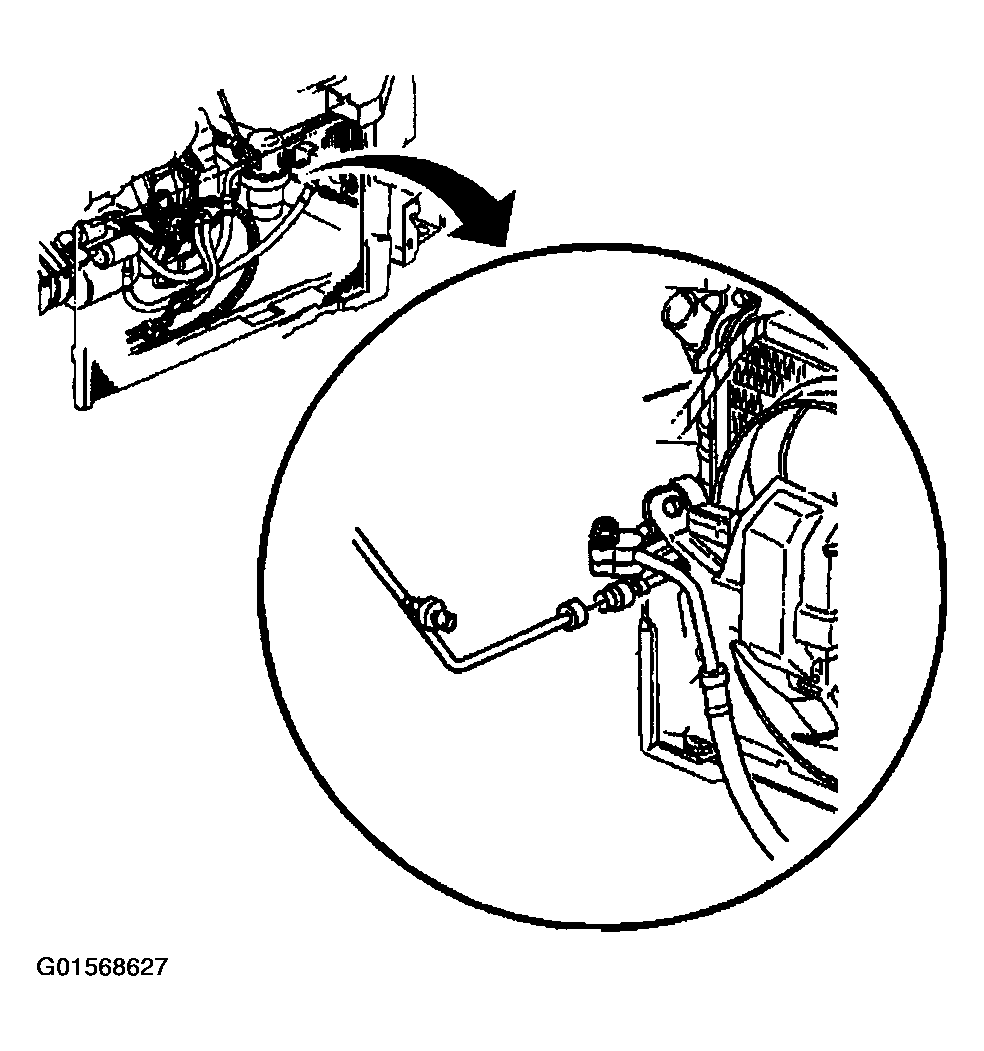

    Fig 2: Connecting Condenser Tube To Condenser
    G01568627Courtesy of GENERAL MOTORS CORP.
  7. Tighten the condenser tube nut.

    Tighten

    Tighten the nut to 27 N.m (20 lb ft).

  8. Connect the A/C compressor hose to the condenser.

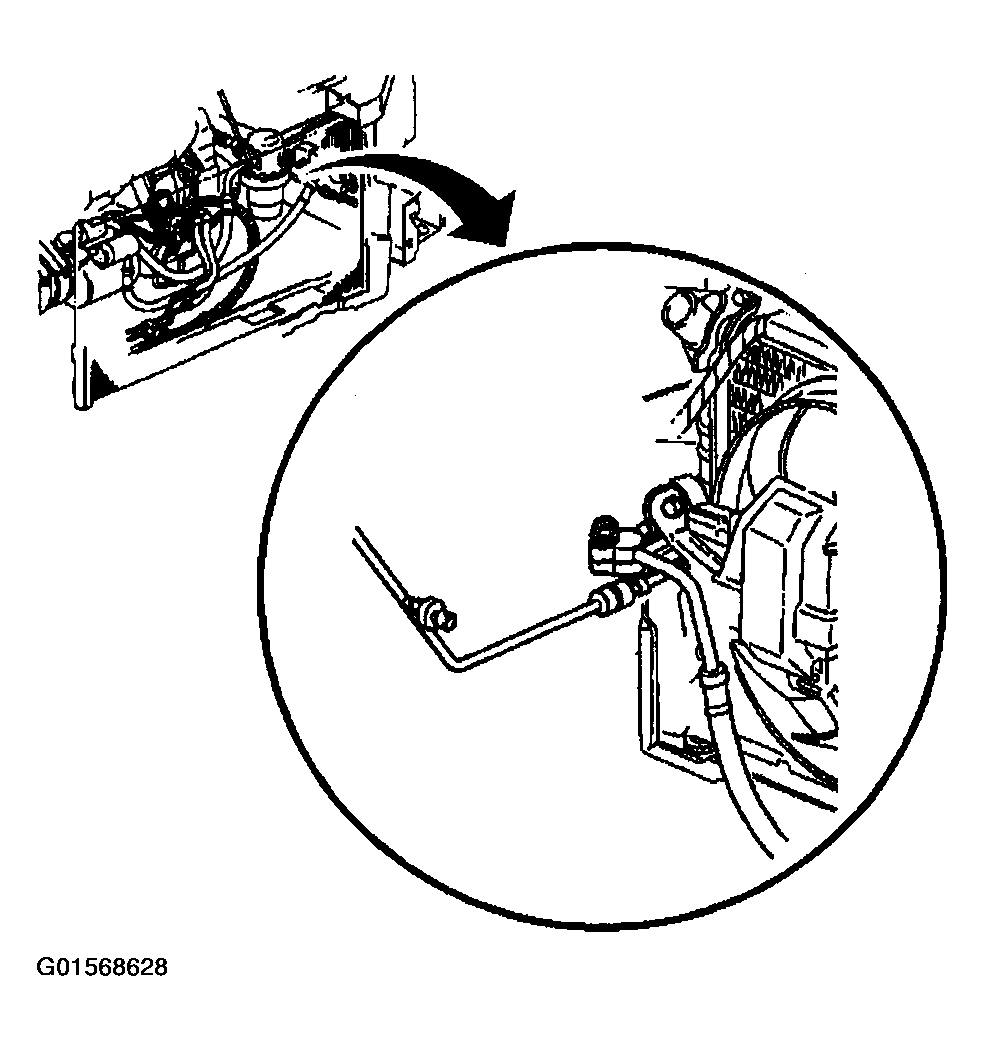

    Fig 3: Connecting A/C Compressor Hose To Condenser
    G01568628Courtesy of GENERAL MOTORS CORP.
  9. Install the A/C compressor hose block fitting nut to the condenser.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

  10. Install the radiator. Refer to RADIATOR REPLACEMENT in Engine Cooling.
  11. Install the front fender upper diagonal. Refer to BRACE REPLACEMENT -- FRONT FENDER UPPER DIAGONAL in Body Front End.
  12. Install the air cleaner assembly.
  13. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  14. Leak test the fittings of the component using J 39400-A  .
