Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the underhood relay center knob (1).

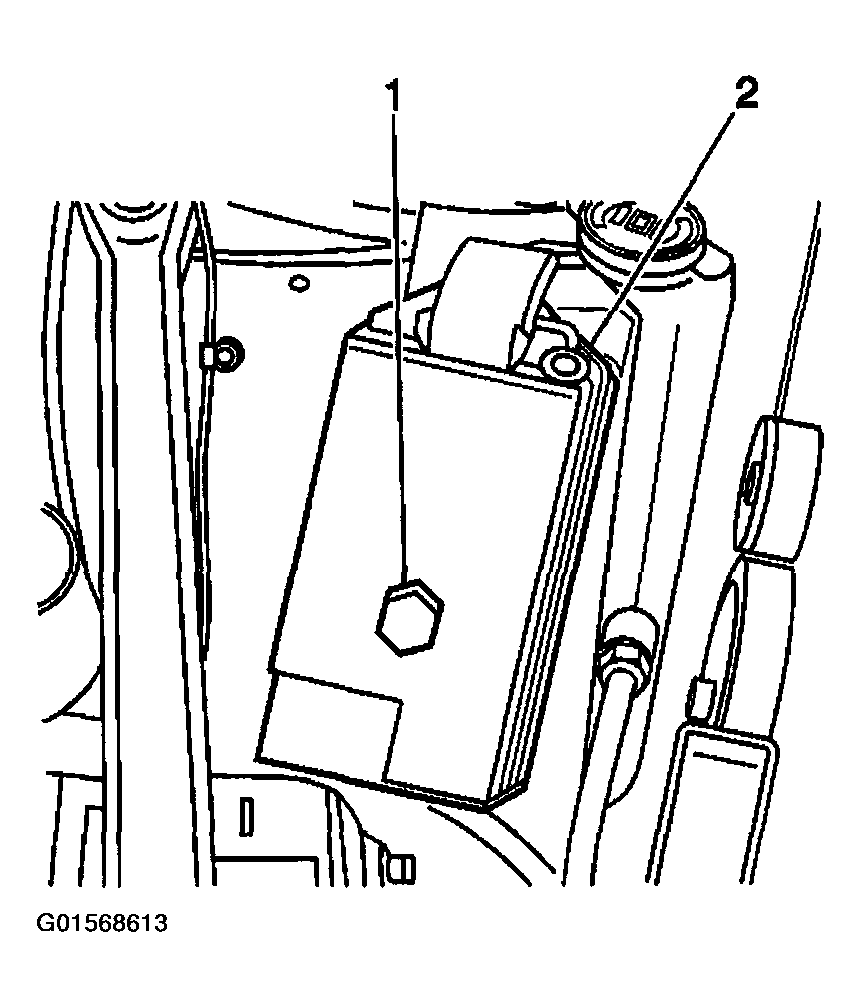

    Fig 1: View Of Underhood Relay Center Knob & Cover
    G01568613Courtesy of GENERAL MOTORS CORP.
  2. Remove the underhood relay center cover (2).
  3. Remove the A/C compressor control relay (15) from the electrical center.

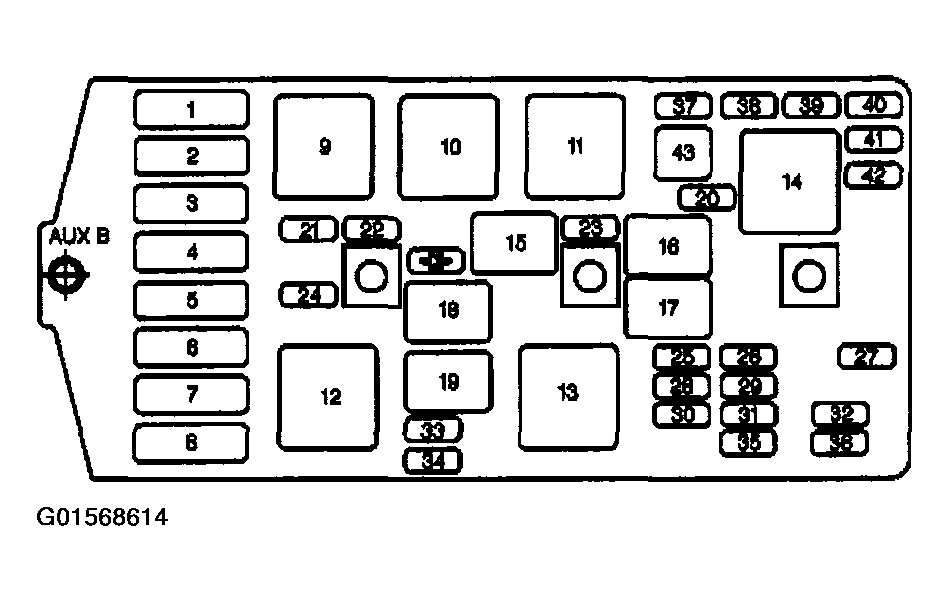

    Fig 2: Identifying A/C Compressor Control Relay From Electrical Center
    G01568614Courtesy of GENERAL MOTORS CORP.
