Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C compressor control relay (15) into the electrical center.

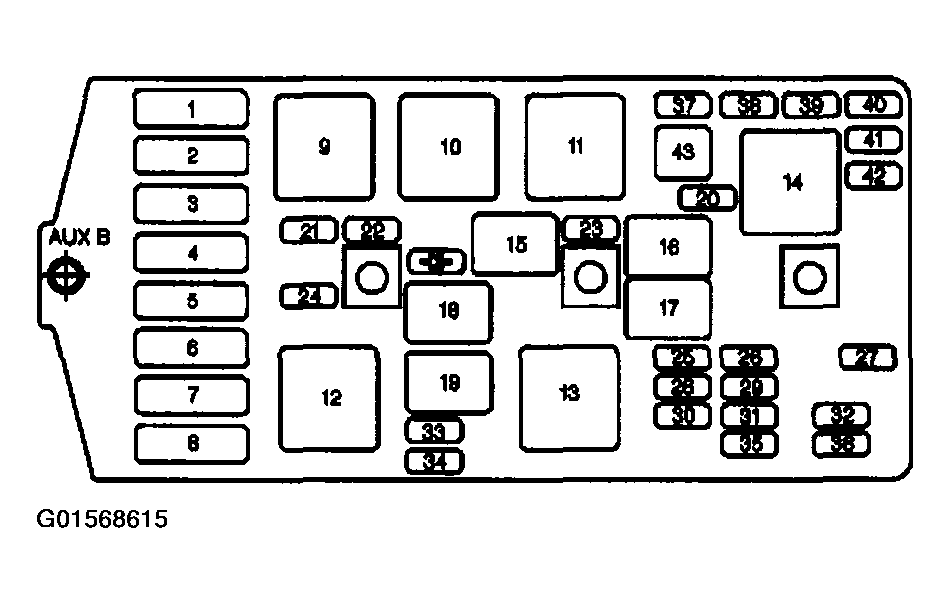

    Fig 1: Identifying A/C Compressor Control Relay From Electrical Center
    G01568615Courtesy of GENERAL MOTORS CORP.
  2. Install the underhood relay cover (2).

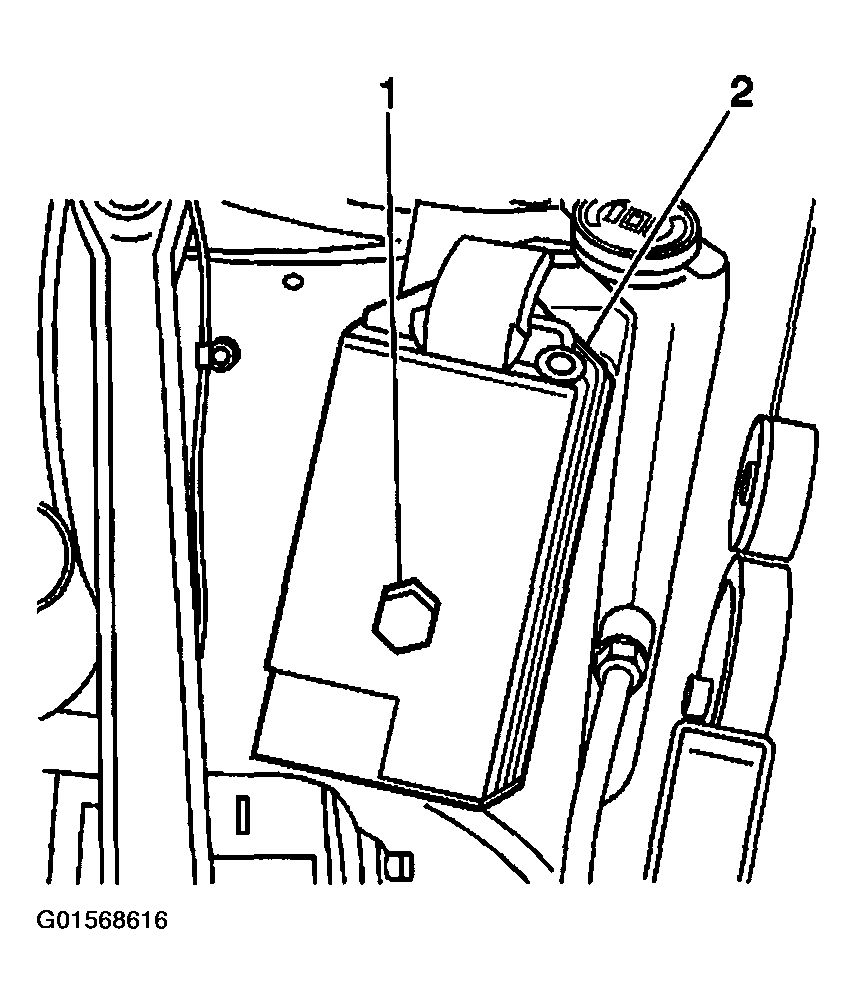

    Fig 2: View Of Underhood Relay Center Knob & Cover
    G01568616Courtesy of GENERAL MOTORS CORP.
  3. Install the underhood relay center knob (1).
