Compressor Pressure Relief Valve Removal (V5 - Direct Mount)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41790 Compressor Holding Fixture. See Special Tools and Equipment .

Install the compressor onto the J 41790 .
Remove the pressure relief valve from the rear head of the compressor.

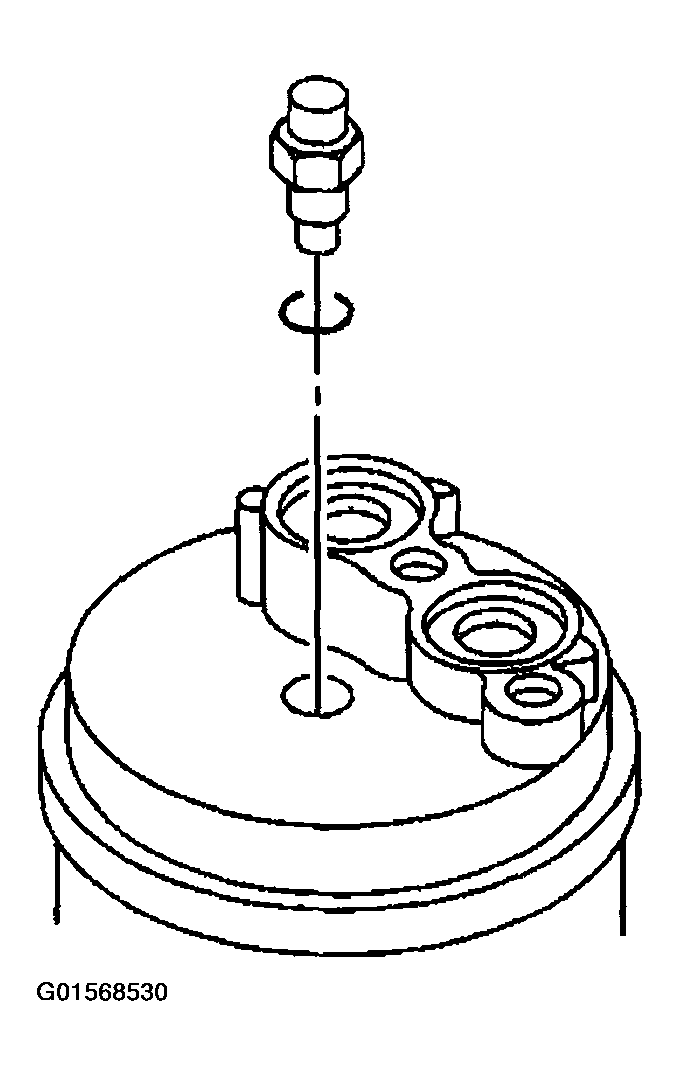

Fig 1: Removing Pressure Relief Valve From Rear Head Of Compressor
Courtesy of GENERAL MOTORS CORP.
