Compressor Control Valve Assembly Removal (V5 - Conventional Mount)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 5403  Snap Ring Pliers. See Special Tools and Equipment .

  1. Remove the control valve retaining ring using the J 5403  .
  2. Remove the control valve assembly (5).

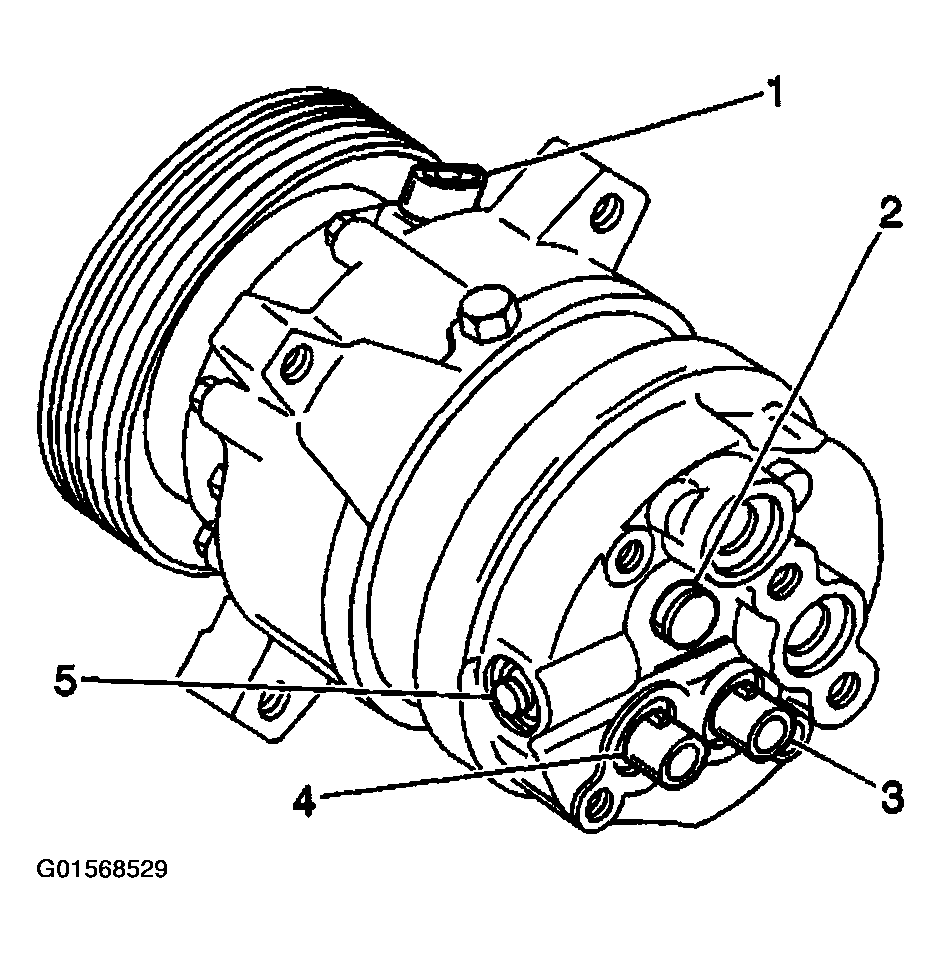

    Fig 1: Removing Control Valve Assembly (V5 - Conventional Mount)
    G01568529Courtesy of GENERAL MOTORS CORP.
