Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41790 Compressor Holding Fixture. See Special Tools and Equipment .
J 41552 Compressor Pulley Puller. See Special Tools and Equipment .
J 33023-A Puller Pilot. See Special Tools and Equipment .
J 33013-B Hub and Drive Plate Remover/Installer. See Special Tools and Equipment .
J 33017 Pulley and Bearing Installer. See Special Tools and Equipment .

Remove the A/C compressor. Refer to COMPRESSOR REPLACEMENT (3.1L) or COMPRESSOR REPLACEMENT (3.8L) .

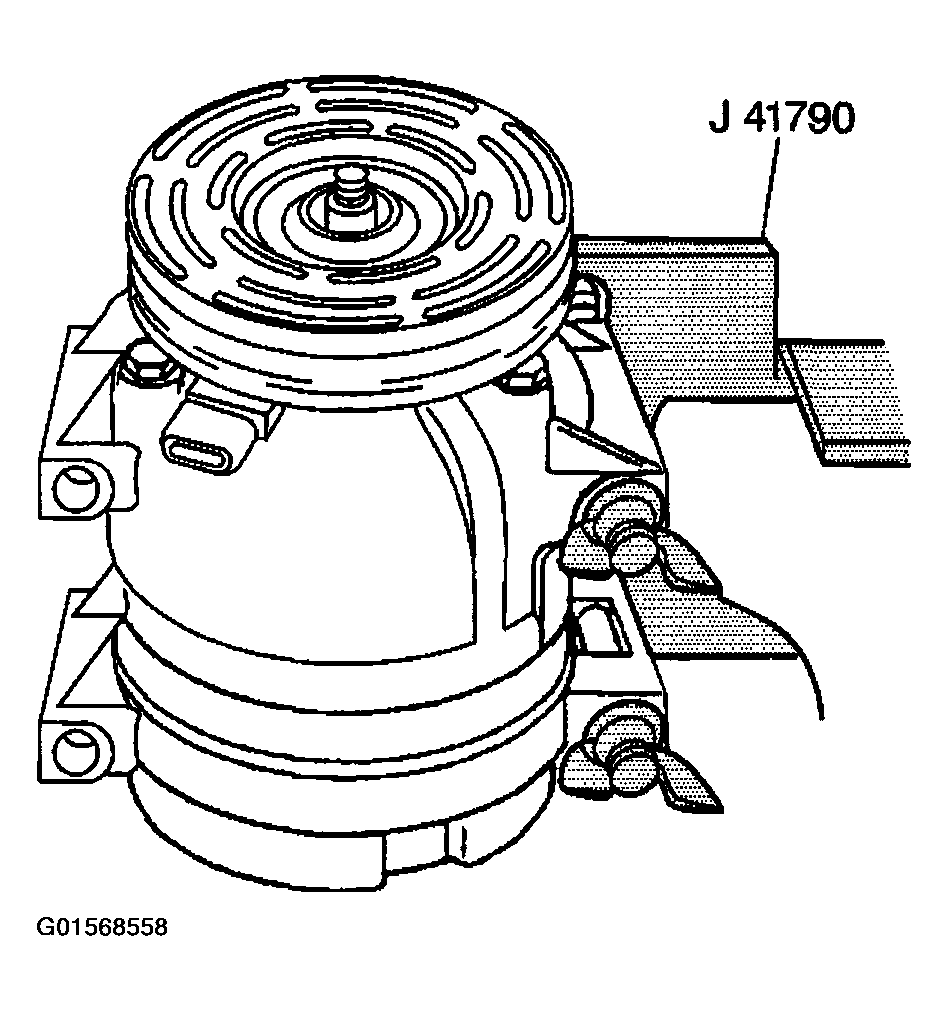

Install the compressor onto the J 41790 .

Fig 1: View Of J 41790 Installed On Compressor
Courtesy of GENERAL MOTORS CORP.
Remove the clutch plate and hub assembly (2).

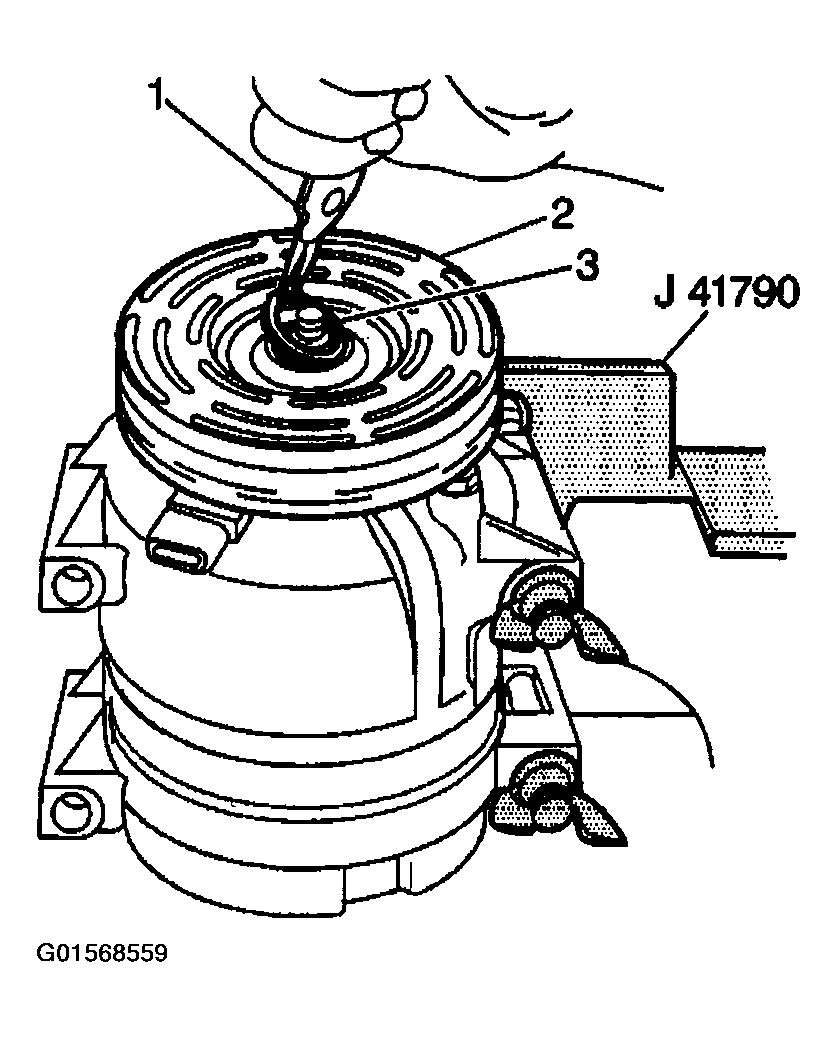

Remove the clutch rotor and bearing assembly retaining ring (3), using external snap ring pliers (1).

Fig 2: Removing Clutch Rotor & Bearing Assembly Retaining Ring Using External Snap Ring Pliers
Courtesy of GENERAL MOTORS CORP.

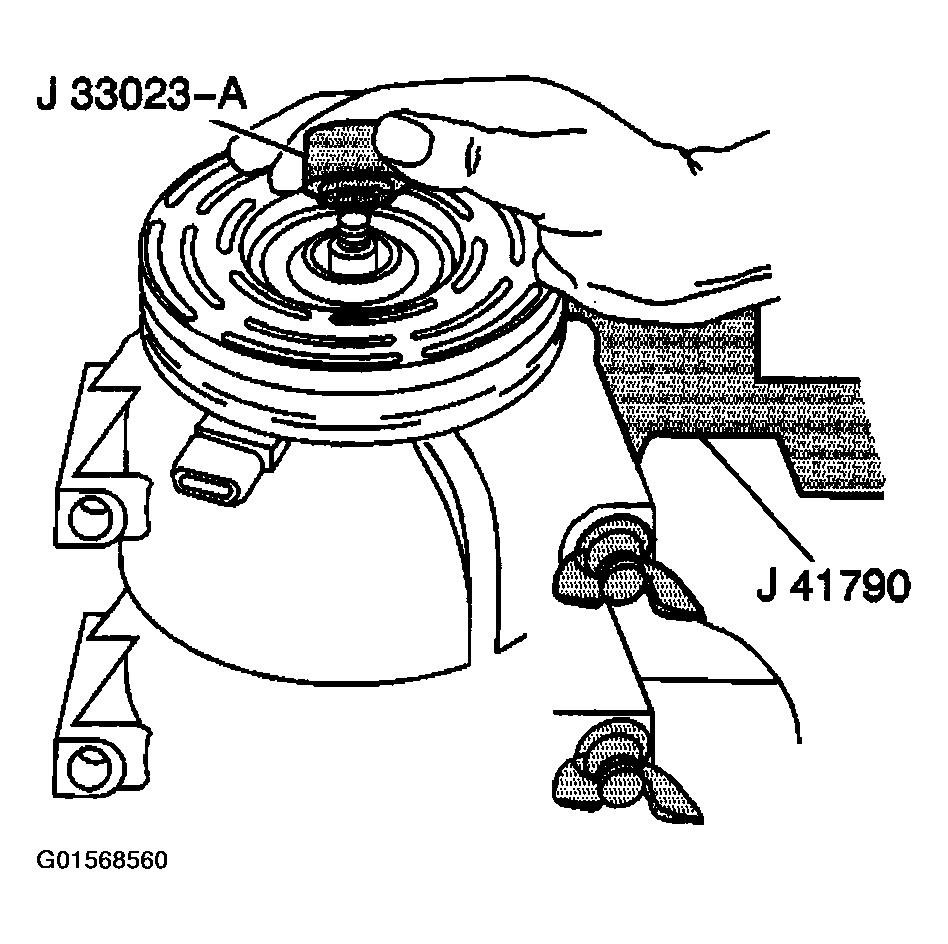

Place the J 33023-A on the clutch rotor.

Fig 3: Placing J 33023-A On Clutch Rotor
Courtesy of GENERAL MOTORS CORP.

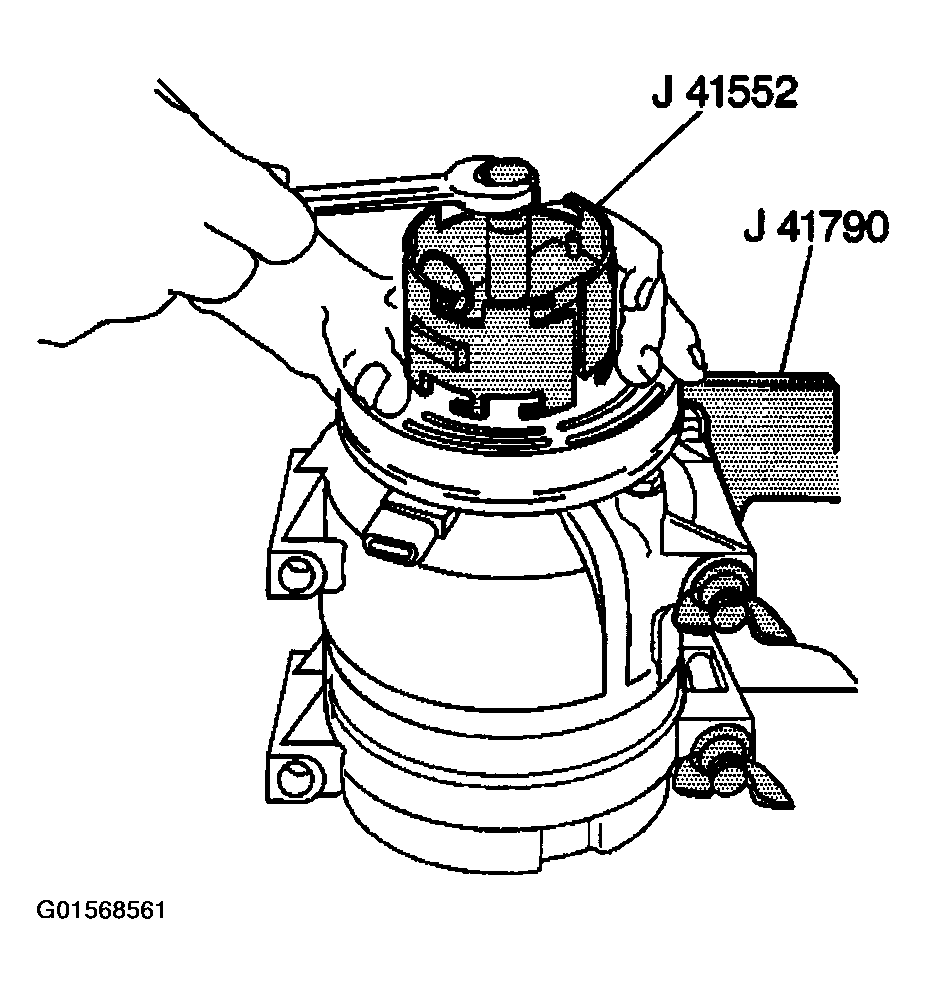

Install the J 41552 down into the inner circle of slots in the rotor.
Turn the compressor pulley puller clockwise in the slots to engage the puller tangs with the rotor.

Fig 4: Installing J 41552 Down Into Inner Circle Of Slots In Rotor
Courtesy of GENERAL MOTORS CORP.
Hold the compressor pulley puller in place and use a wrench to turn the center forcing screw against the puller pilot to remove the clutch rotor and bearing assembly.
