Clutch Rotor and/or Bearing Install (V5 - Direct Mount)

Tools Required

• J 33013-B  Hub and Drive Plate Remover/Installer. See Special Tools and Equipment .
• J 33017  Pulley and Bearing Installer. See Special Tools and Equipment .
• J 41790  Compressor Holding Fixture. See Special Tools and Equipment .

1. Position the clutch rotor and bearing assembly (2) onto the compressor.
2. Position the J 33017  and bearing (1) from the J 33013-B  directly over the inner race of the bearing.
3. Place the washer (3) onto the body of J 33013-B  .
4. Remove the center screw from the body of the hub and drive plate installer.
5. Install the center screw into the opposite end of the hub and drive plate installer.
6. Back the body of the hub and drive plate installer tool off enough to allow the center screw to be threaded onto the end of the compressor shaft.
7. Thread the center screw several turns onto the end of the compressor shaft.

   Do not tighten the center screw on the compressor shaft.

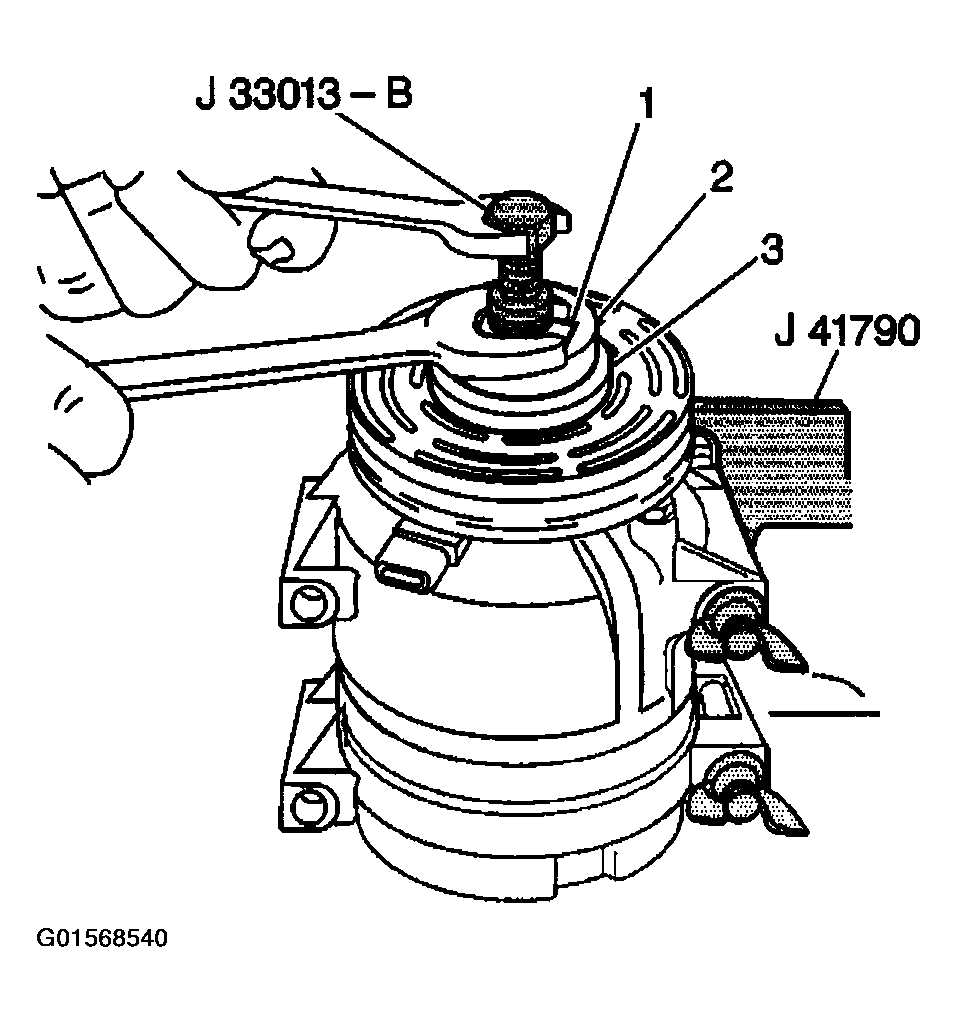

   Fig 1: Installing Clutch Rotor & Bearing Assembly Onto Compressor

   Courtesy of GENERAL MOTORS CORP.
8. Hold the center screw with a wrench.
9. Tighten the hex portion of the hub and drive plate installer body several turns.
10. Remove the J 33013-B  from the clutch rotor and bearing assembly.
11. Ensure that the clutch rotor and bearing (2) is pressed onto the nose of the compressor far enough to clear the groove for the retaining ring.

    If the clutch rotor and bearing does not clear the groove, repeat steps  7,  8 and  9.

12. Install the clutch rotor and bearing retaining ring (3) using external snap ring pliers (1).

    Ensure that the chamfer side of the retaining ring is facing up when the retaining ring is being installed.

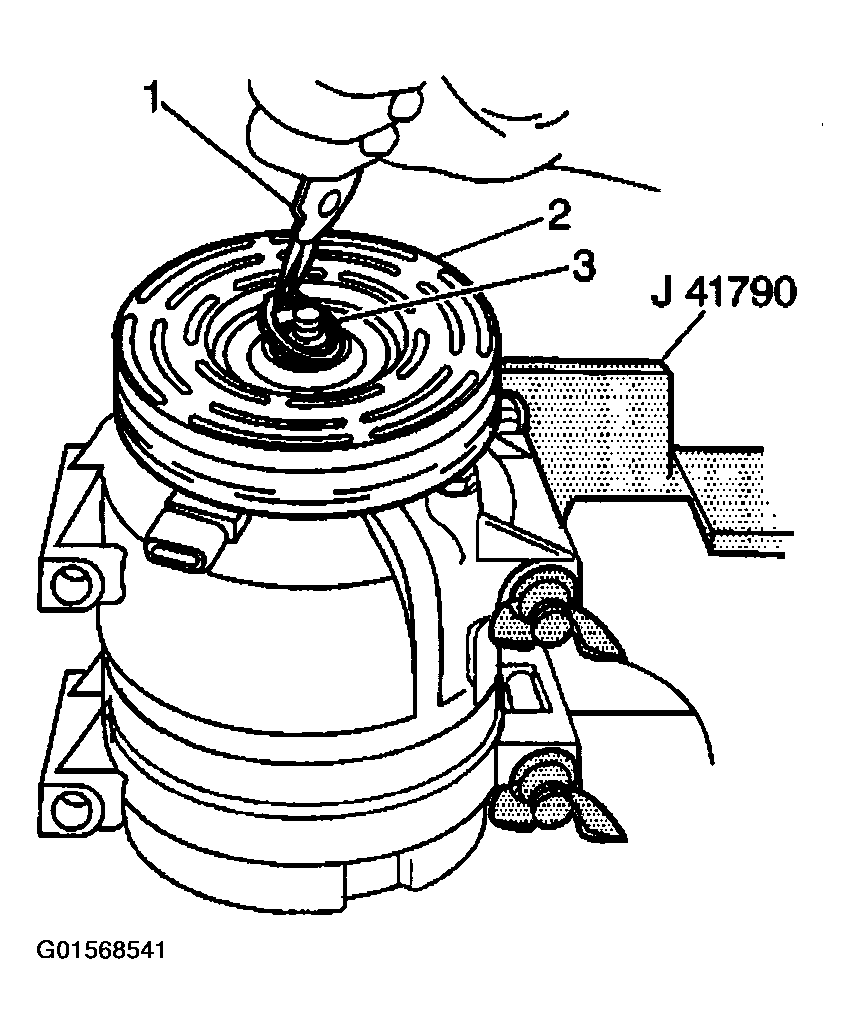

    Fig 2: Installing Clutch Rotor & Bearing Retaining Ring Using External Snap Ring Pliers

    Courtesy of GENERAL MOTORS CORP.
13. Install the clutch plate and hub assembly.
14. Remove the compressor from the J 41790  .
