Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the blower motor resistor.

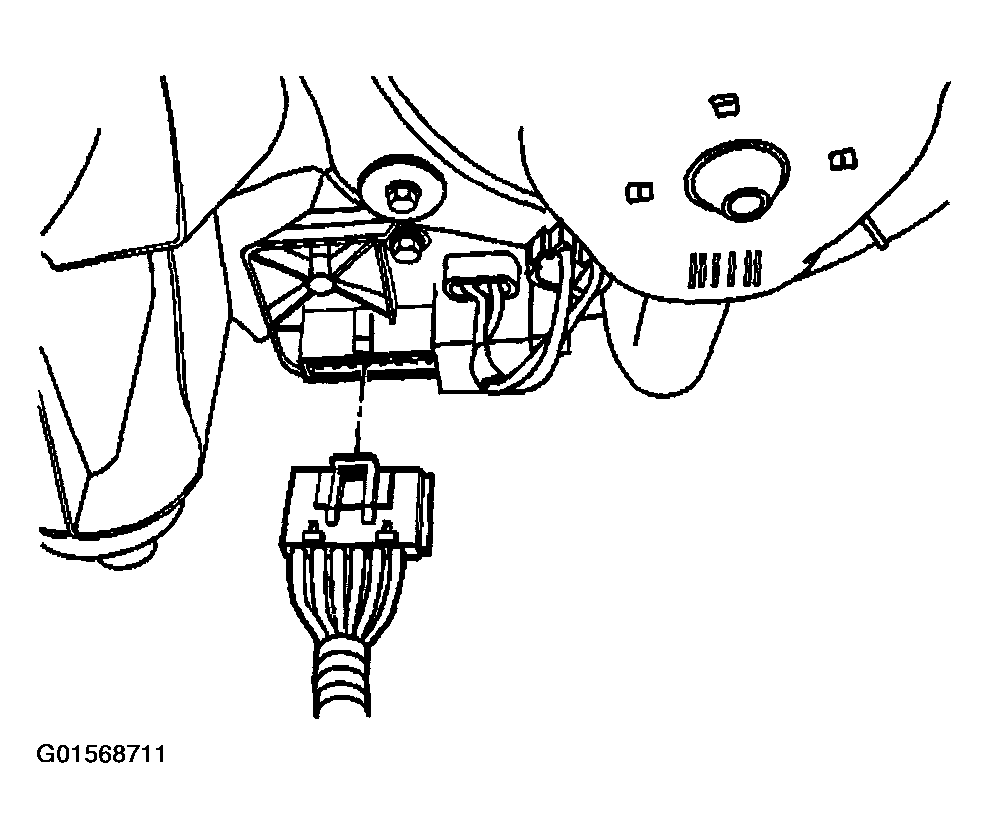

    Fig 1: Disconnecting Electrical Connector From Blower Motor Resistor
    G01568711Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the blower motor.

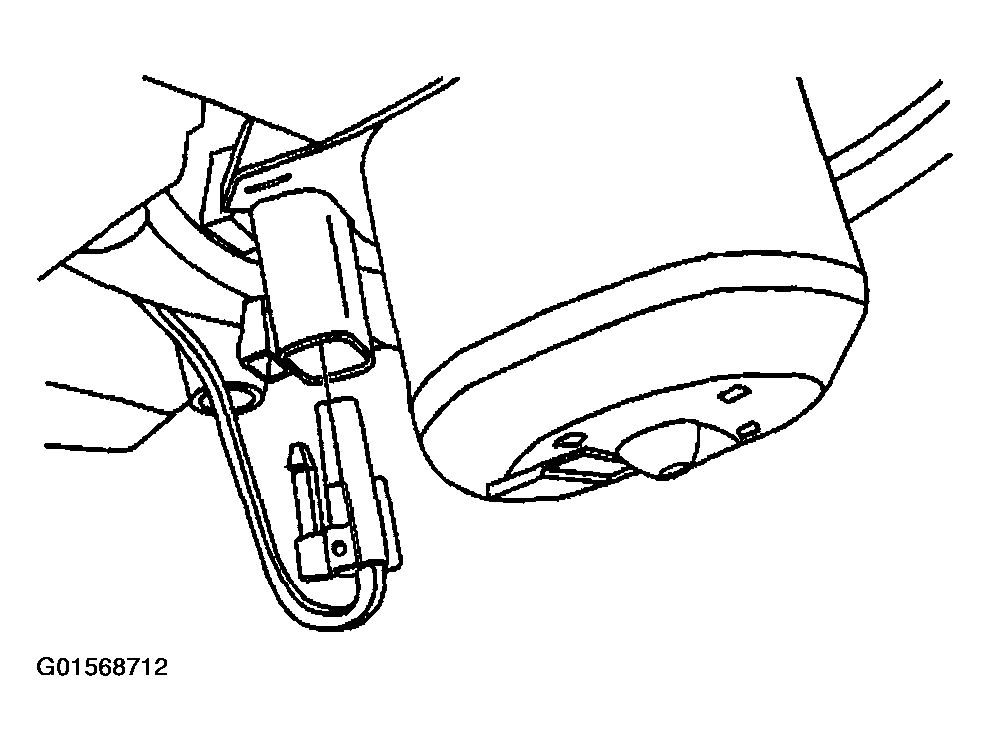

    Fig 2: Disconnecting Electrical Connector From Blower Motor
    G01568712Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The blower motor resistor opening is slotted. Access is extremely limited.
  4. Loosen both screws from the forward blower motor resistor.
  5. Remove the screws from the rear blower motor resistor.
  6. Remove the blower motor resistor.

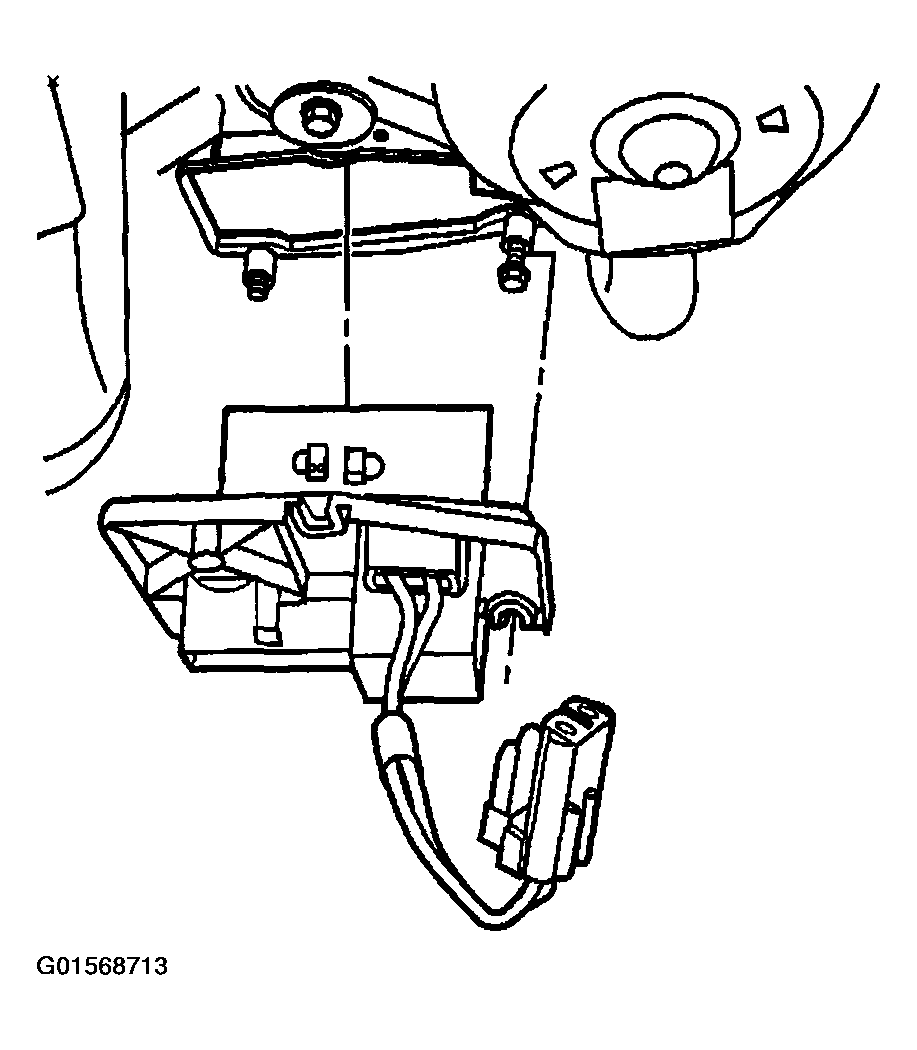

    Fig 3: Removing Blower Motor Resistor
    G01568713Courtesy of GENERAL MOTORS CORP.
