Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
  2. Release the instrument panel harness retainer and move the harness to one side.
  3. Disconnect the blower motor electrical connector.

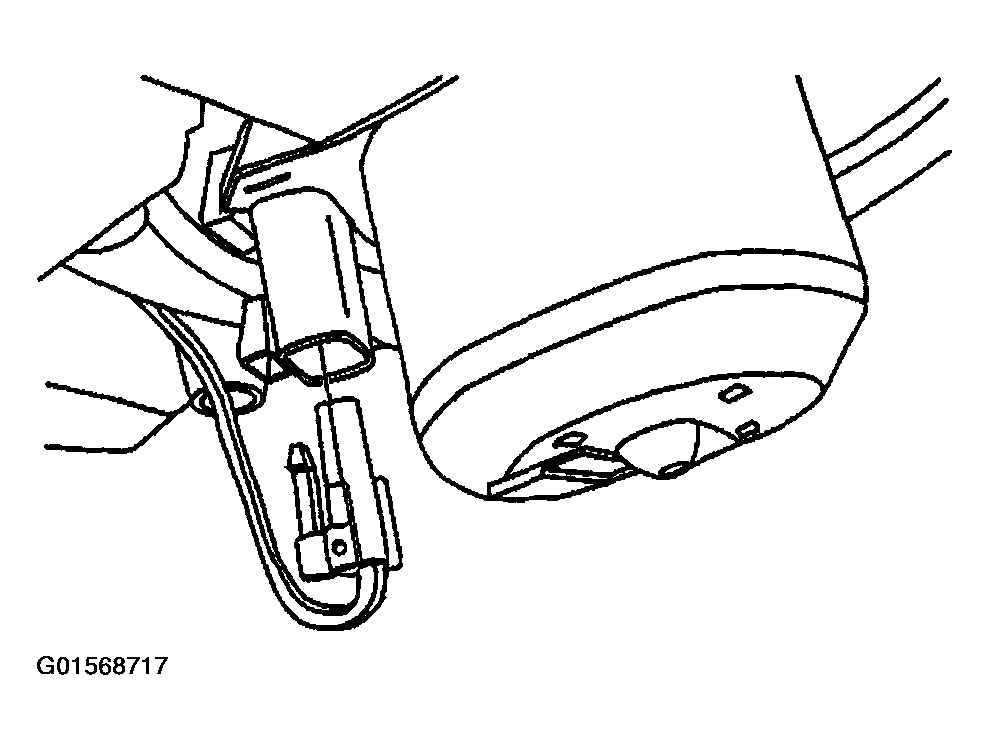

    Fig 1: Disconnecting Blower Motor Electrical Connector
    G01568717Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the blower motor cooling hose.
  5. Remove the mounting screws from the blower motor.
  6. Remove the blower motor.

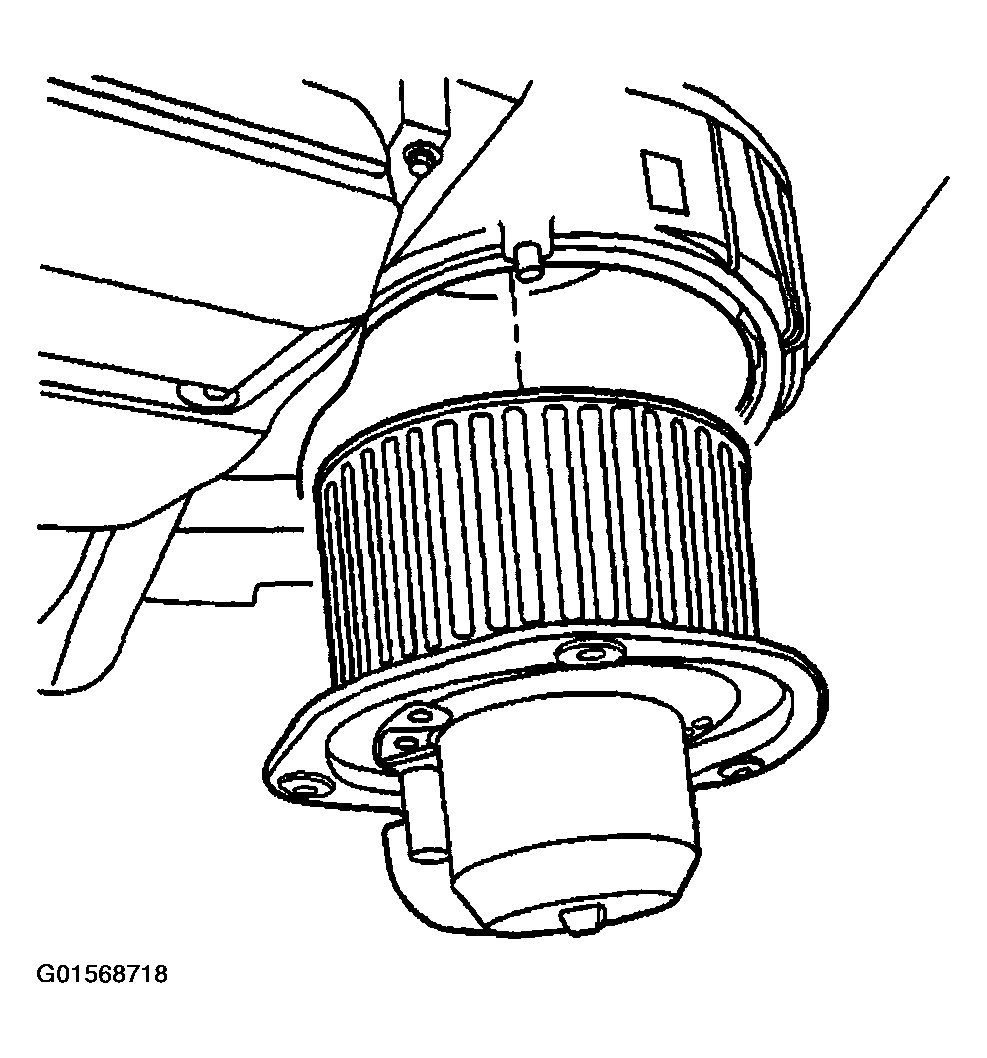

    Fig 2: Removing Blower Motor
    G01568718Courtesy of GENERAL MOTORS CORP.
