Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor.

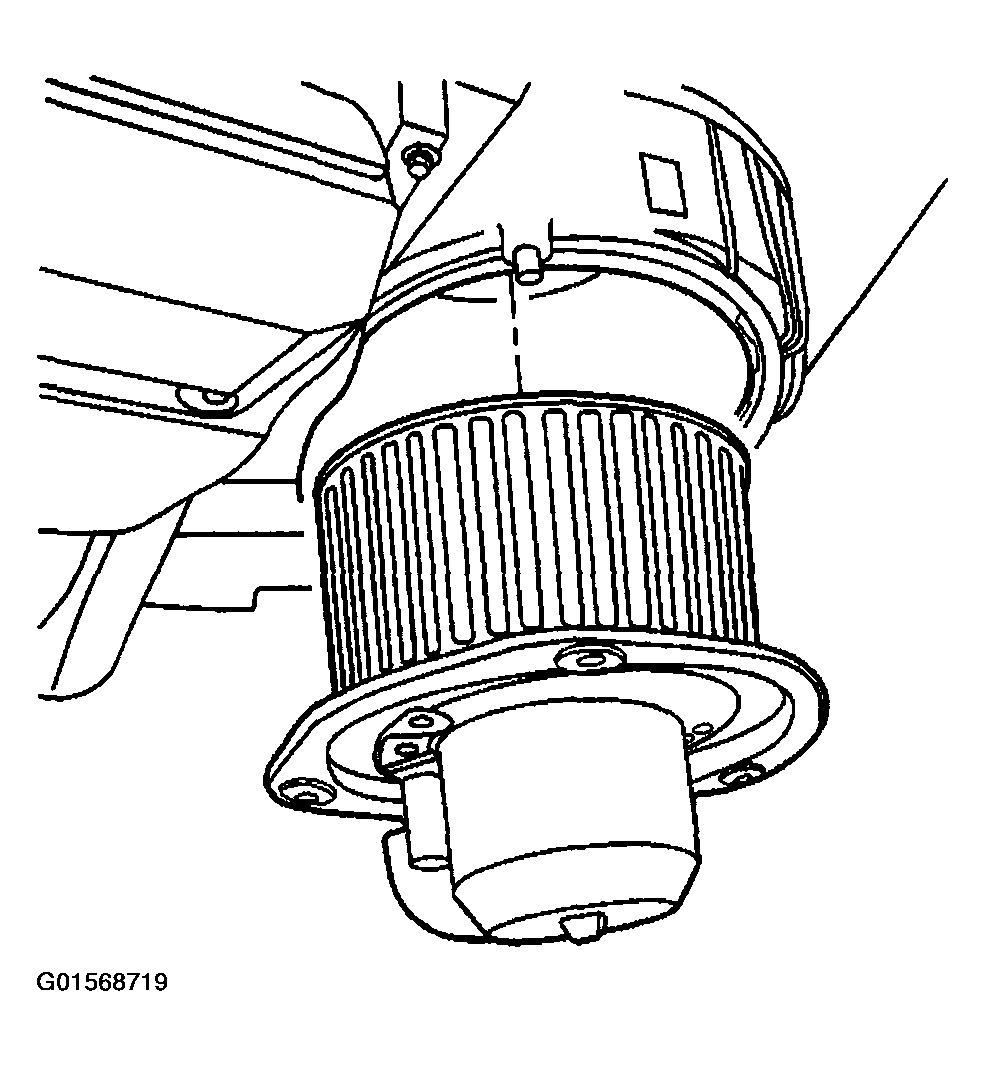

    Fig 1: Installing Blower Motor
    G01568719Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor screws.

    Tighten

    Tighten the screws to 1.3 N.m (12 lb in).

  3. Connect the blower motor cooling hose.
  4. Connect the blower motor electrical connector.

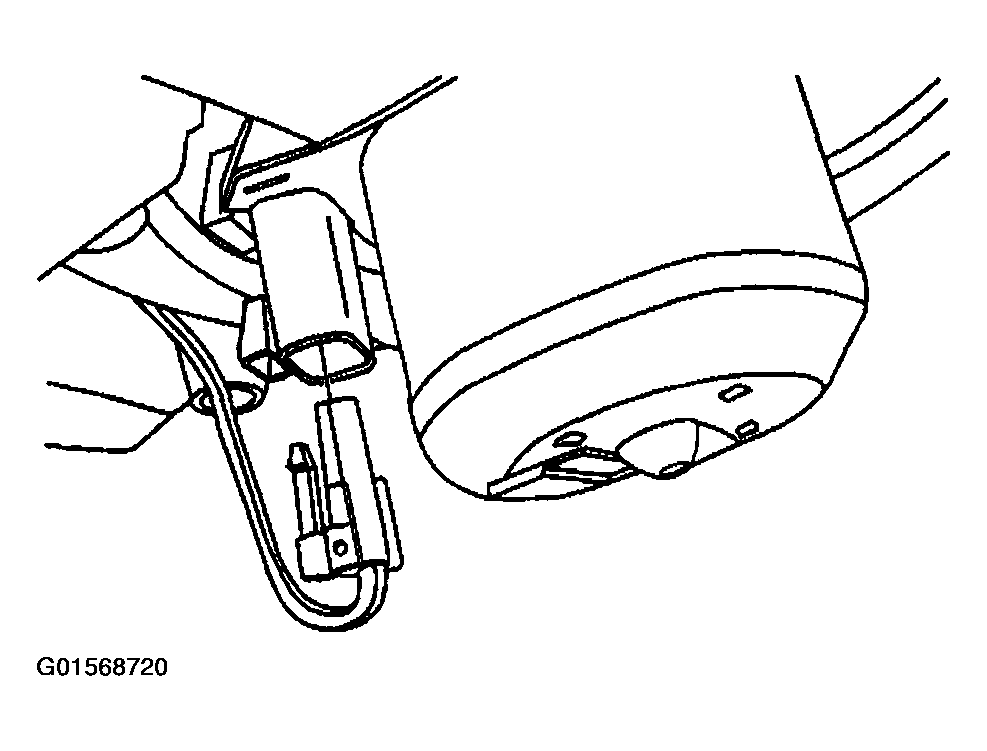

    Fig 2: Connecting Blower Motor Electrical Connector
    G01568720Courtesy of GENERAL MOTORS CORP.
  5. Install the instrument panel harness into the harness retainer.
  6. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
