Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor carpet. Refer to CARPET REPLACEMENT -- FRONT in Interior Trim.
  2. Release the rear floor air outlet duct (1) from the floor.

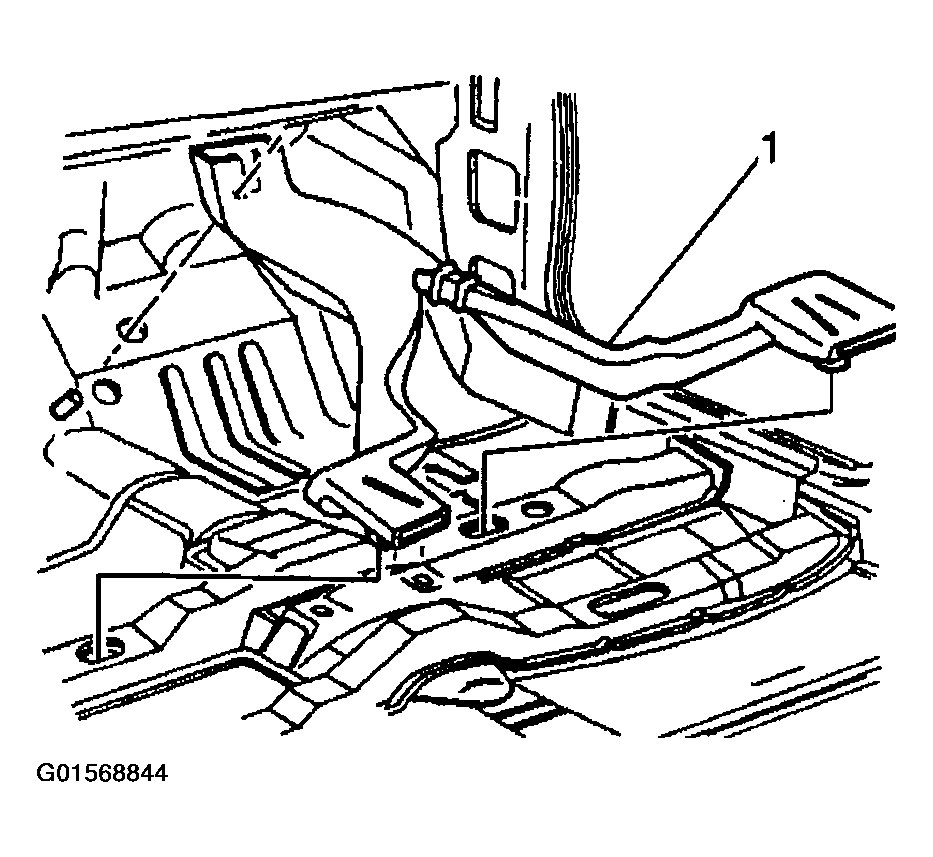

    Fig 1: Releasing Rear Floor Air Outlet Duct From Floor
    G01568844Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the rear floor air outlet duct from the heater outlet cover.
  4. Remove the rear floor air outlet duct.
