Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear floor air outlet duct (1).

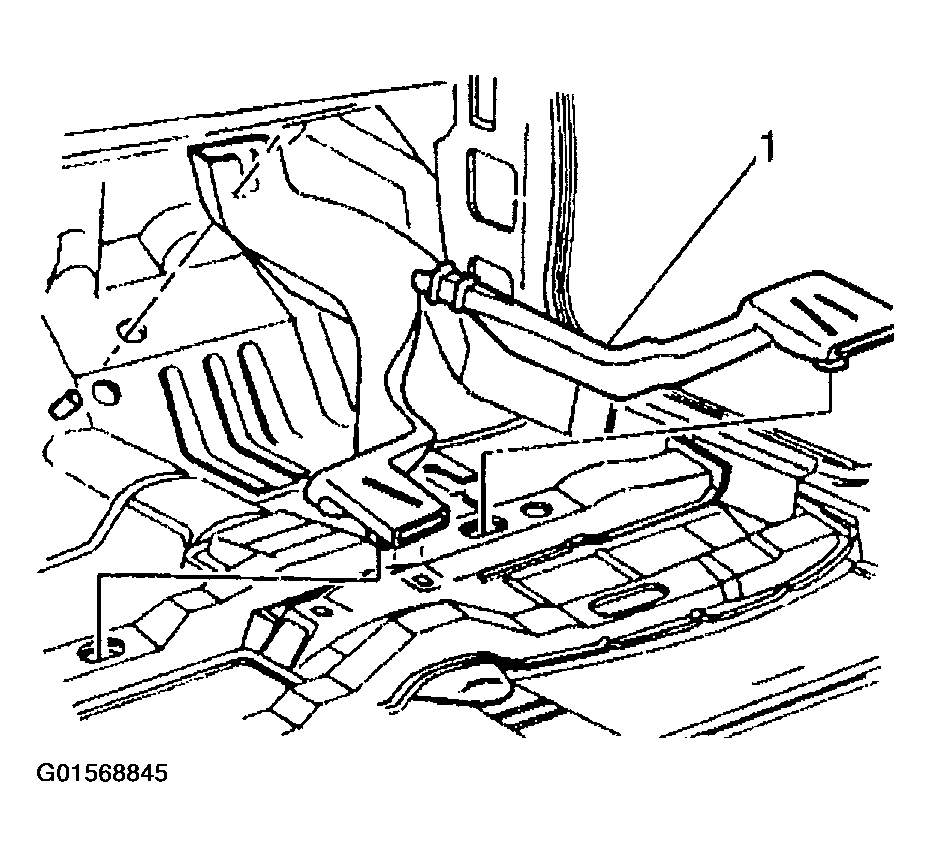

    Fig 1: Installing Rear Floor Air Outlet Duct
    G01568845Courtesy of GENERAL MOTORS CORP.
  2. Connect the rear floor air outlet duct from the heater outlet cover.
  3. Position the floor duct into holes in floor reinforcement and press into place.
  4. Install the floor carpet. Refer to CARPET REPLACEMENT -- FRONT in Interior Trim.
