Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel trim pad. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  2. Remove the center air duct mounting screw.

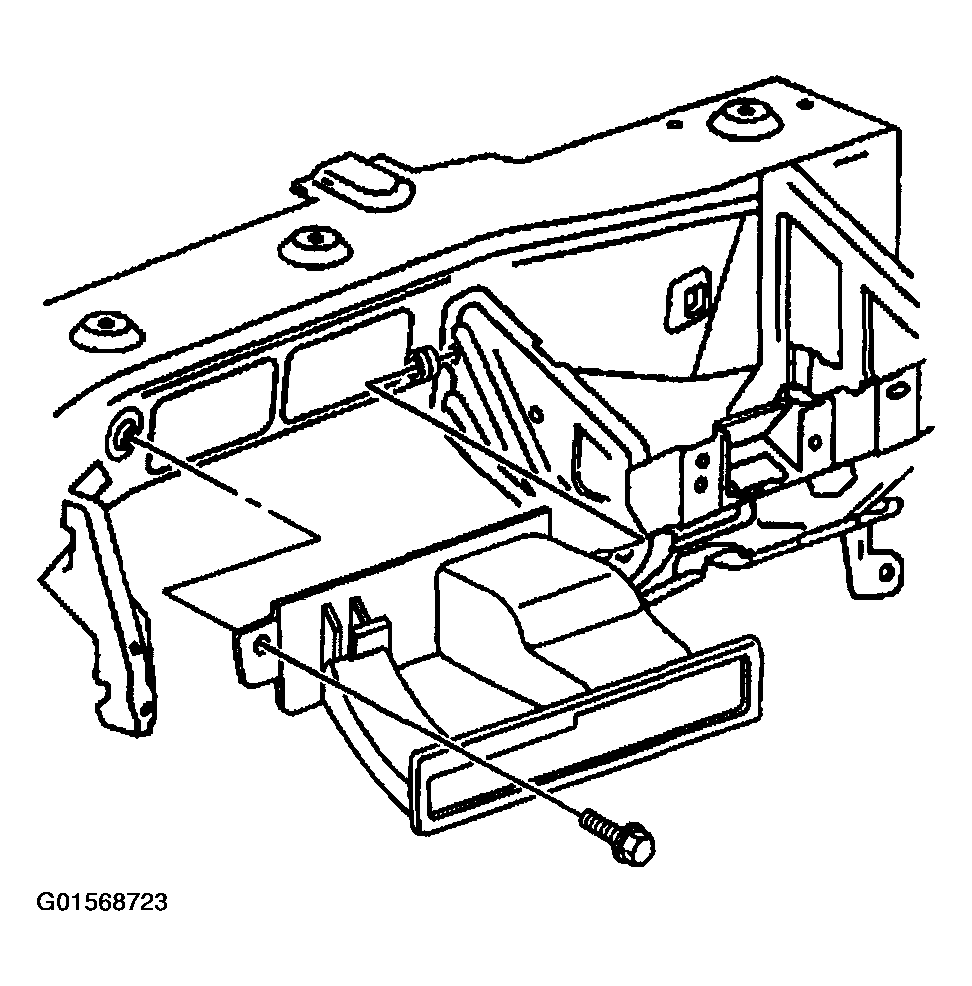

    Fig 1: Removing Center Air Duct Mounting Screw
    G01568723Courtesy of GENERAL MOTORS CORP.
  3. Remove the center air duct distribution.
  4. Remove the side air ducts mounting screws and side air distribution ducts.

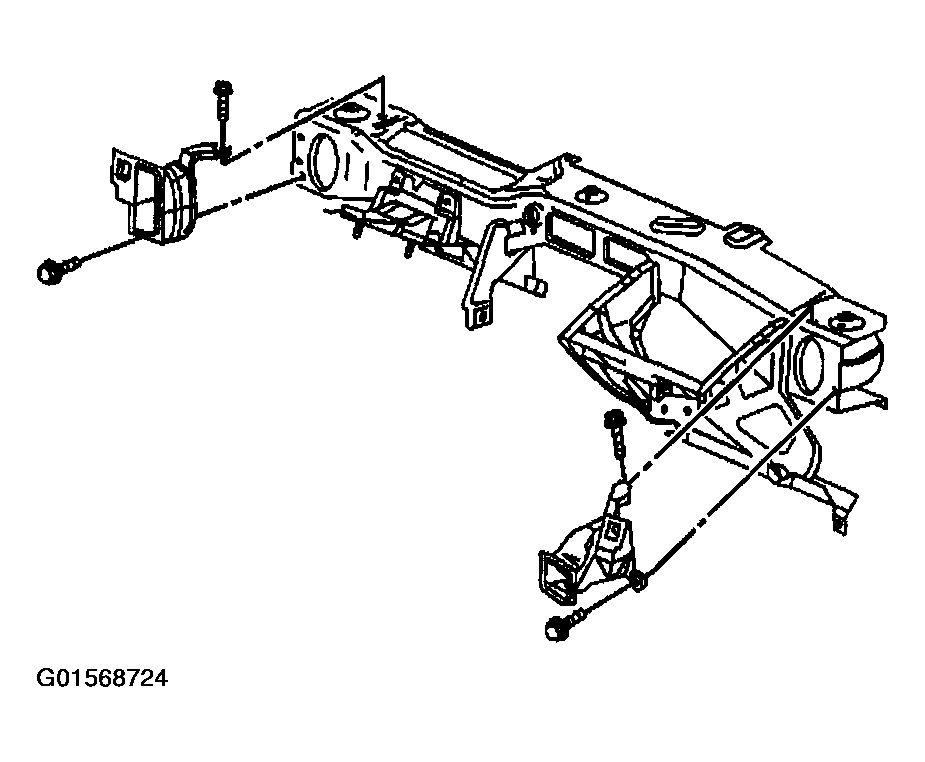

    Fig 2: Removing Side Air Distribution Ducts & Mounting Screws
    G01568724Courtesy of GENERAL MOTORS CORP.
