Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. .
  2. Disconnect the A/C refrigerant pressure sensor from the electrical connector.

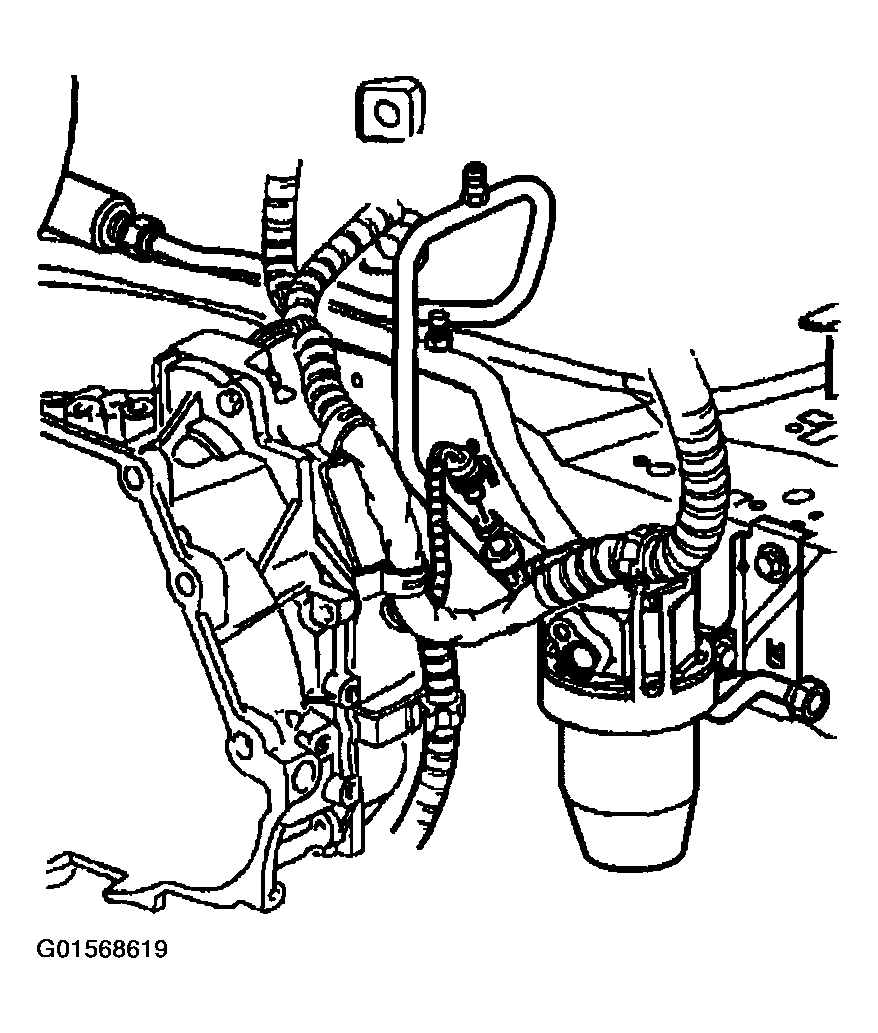

    Fig 1: Disconnecting A/C Refrigerant Pressure Sensor From Electrical Connector
    G01568619Courtesy of GENERAL MOTORS CORP.
  3. Remove the A/C refrigerant pressure sensor from the condenser tube.
    Fig 2: Removing A/C Refrigerant Pressure Sensor From Condenser Tube
    G01568620Courtesy of GENERAL MOTORS CORP.
