Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Remove the air cleaner assembly.
  3. Loosen the accumulator hose nut (2) from the accumulator.
    Fig 1: Disconnecting Accumulator Hose Nut From Accumulator
    G01568629Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the accumulator hose from the accumulator.
  5. Remove the A/C compressor hose block fitting nut (1) from the accumulator.

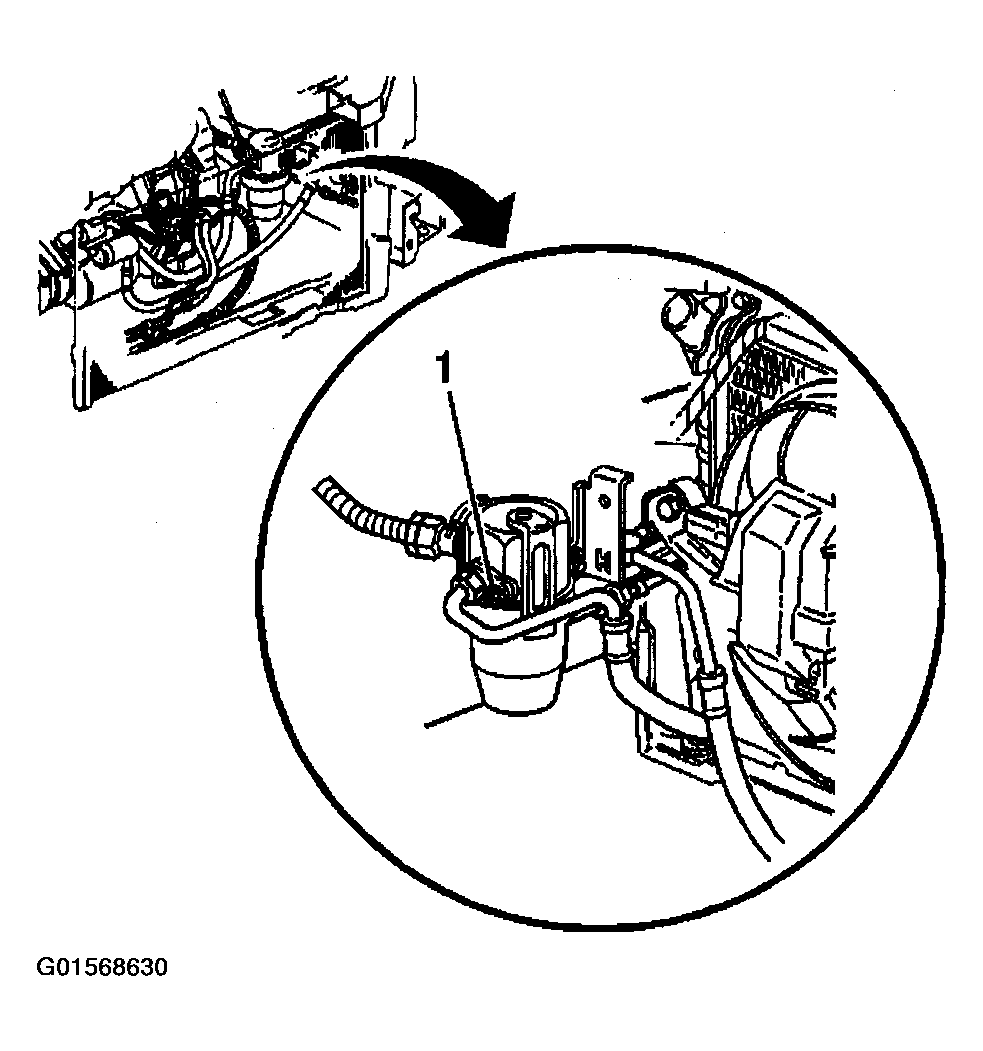

    Fig 2: Disconnecting A/C Compressor Hose Block Fitting Nut From Accumulator
    G01568630Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the A/C compressor hose from the accumulator.
  7. Remove the accumulator bracket retaining bolt.

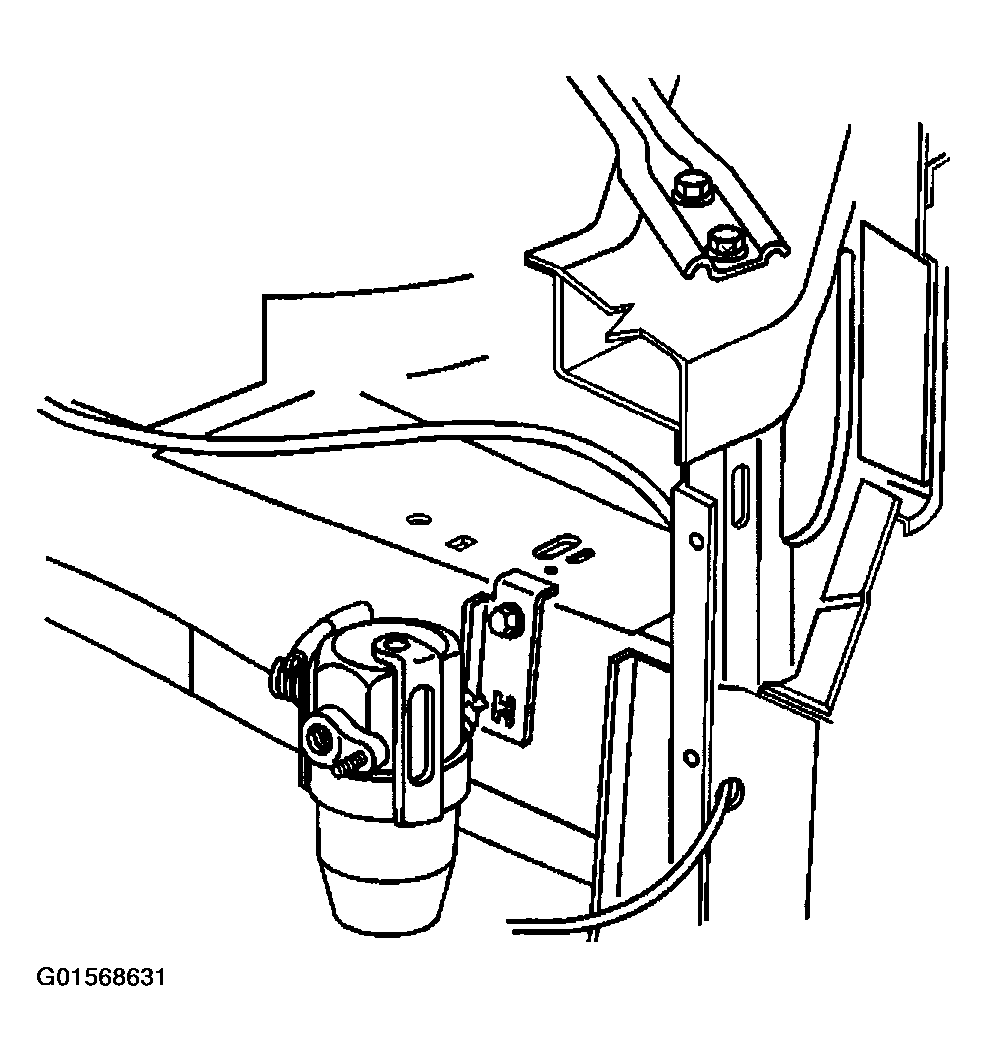

    Fig 3: Locating Accumulator Bracket Retaining Bolt
    G01568631Courtesy of GENERAL MOTORS CORP.
  8. Remove the accumulator bracket bolt clamp.
  9. Remove the accumulator from the mounting bracket.

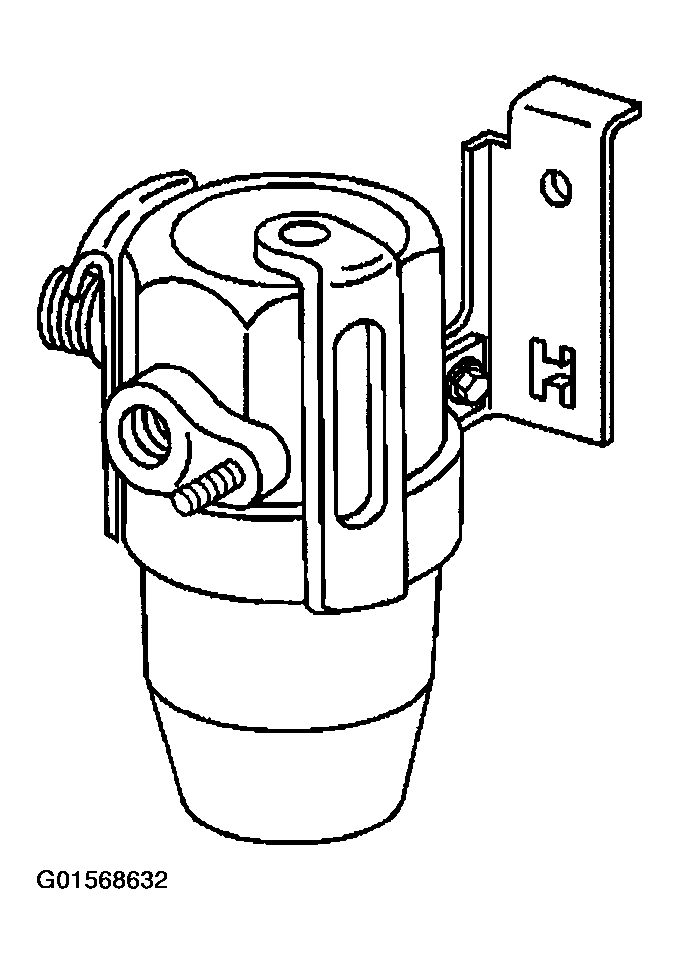

    Fig 4: View Of Accumulator & Mounting Bracket
    G01568632Courtesy of GENERAL MOTORS CORP.
