Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

If replacing the accumulator, add refrigerant oil to the accumulator. Refer to REFRIGERANT SYSTEM CAPACITIES for system capacity information.
Install the accumulator to the mounting bracket.

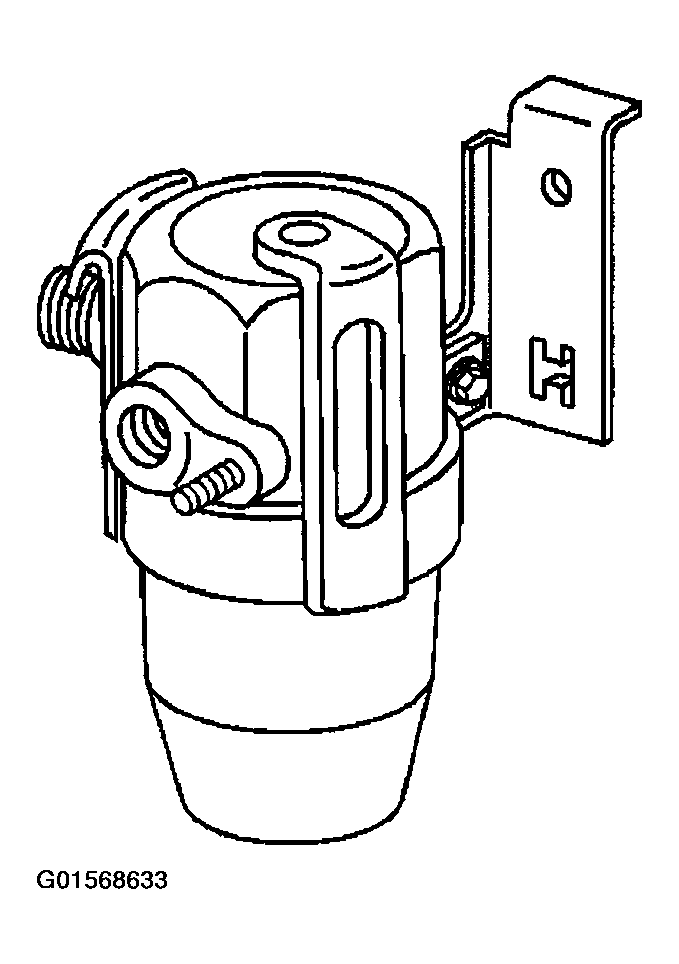

Fig 1: View Of Accumulator & Mounting Bracket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten the accumulator bracket bolt clamp.
Tighten

Tighten the bolt to 4 N.m (36 lb in).
Install the accumulator.
Install the accumulator bracket retaining bolt.
Tighten

Tighten the bolt to 4 N.m (36 lb in).

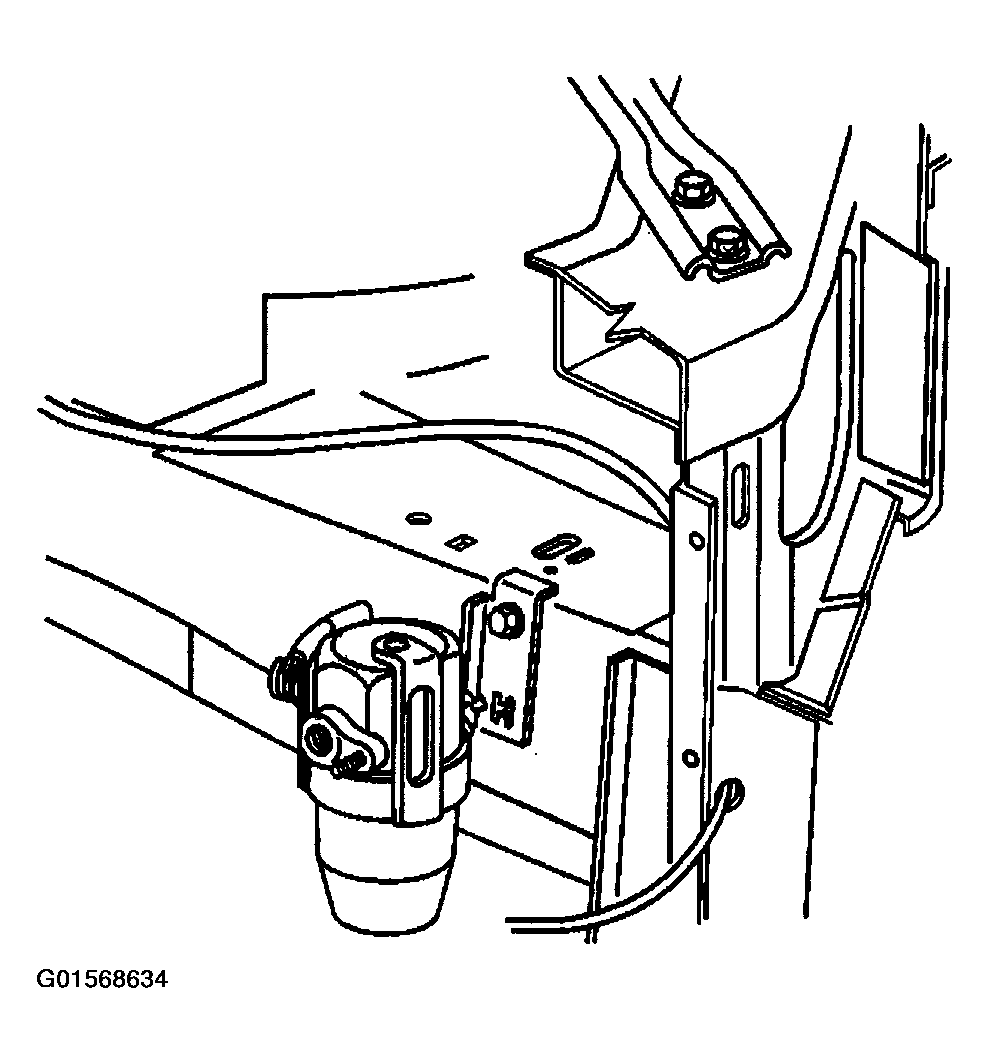

Fig 2: Locating Accumulator Bracket Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
Install the new O-ring seals onto the A/C compressor hose and the accumulator hose. Refer to O-RING REPLACEMENT .
Connect the accumulator hose onto the accumulator.
Tighten the accumulator hose nut (2).
Tighten

Tighten the nut to 47 N.m (35 lb ft).

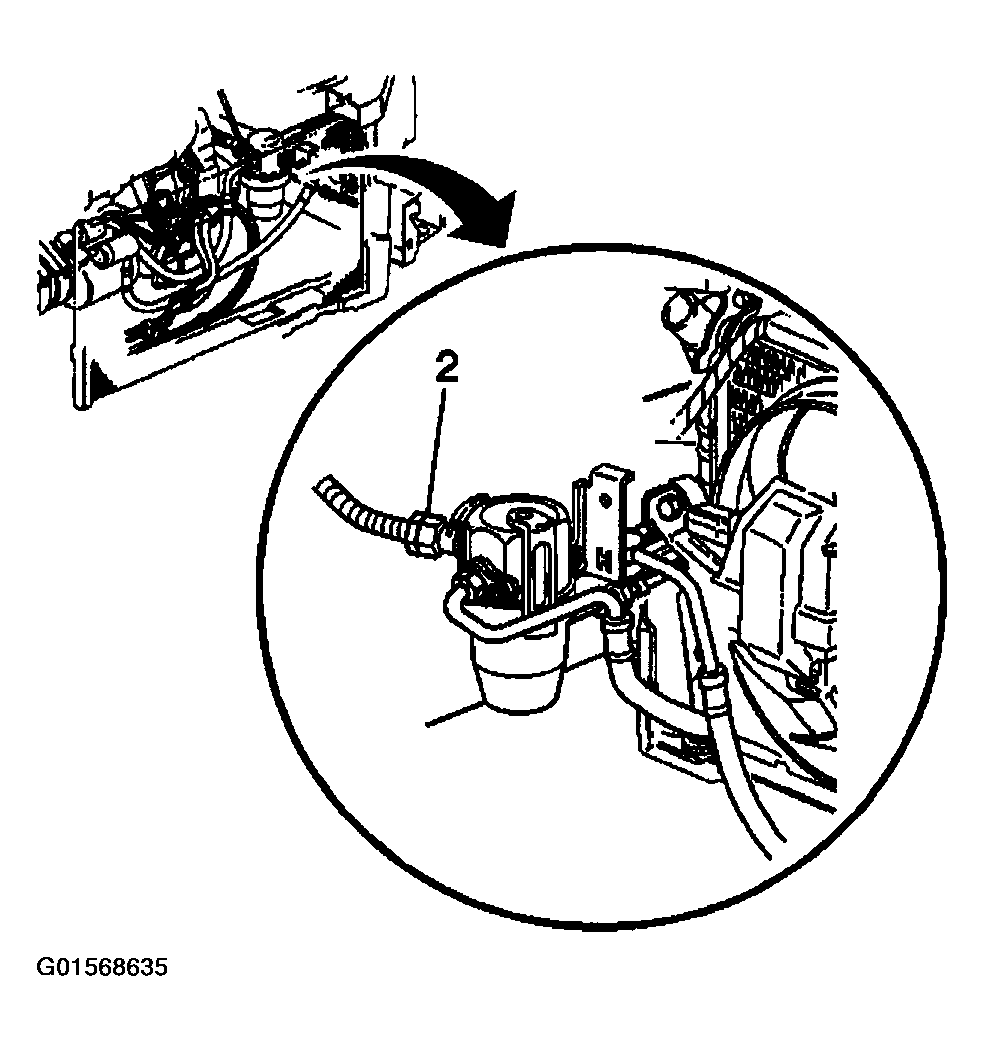

Fig 3: Connecting Accumulator Hose Onto Accumulator
Courtesy of GENERAL MOTORS CORP.
Connect the A/C compressor hose to the accumulator.
Install the A/C compressor hose nut (1) onto the accumulator.
Tighten

Tighten the nut to 16 N.m (12 lb ft).

Fig 4: Connecting A/C Compressor Hose Nut To Accumulator
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner assembly.
Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
Leak test the fittings of the component using J 39400-A.
