Defrosting Insufficient

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

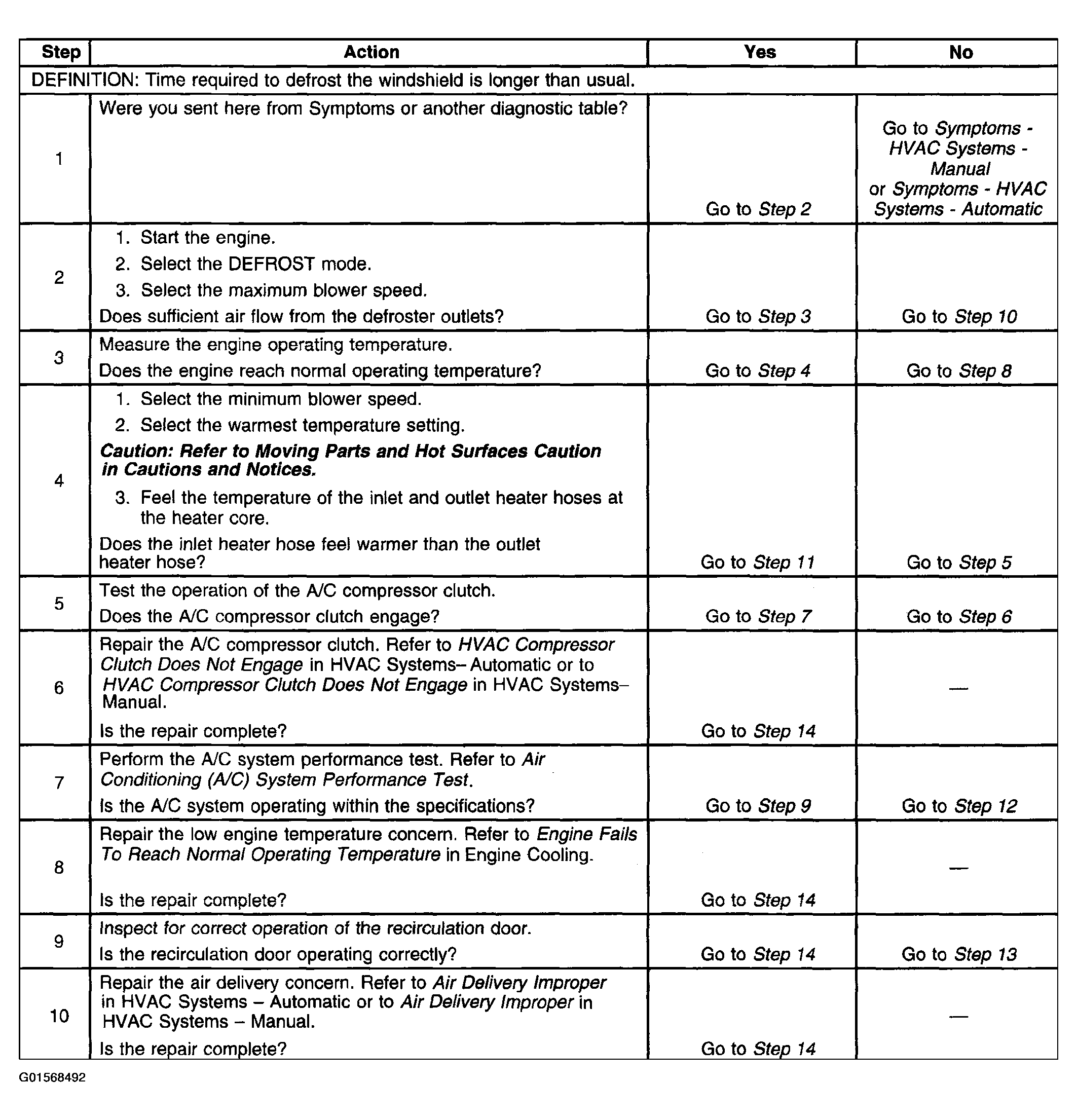

Fig 1: Defrosting Insufficient Diagnostic (Steps 1-10)
G01568492Courtesy of GENERAL MOTORS CORP.

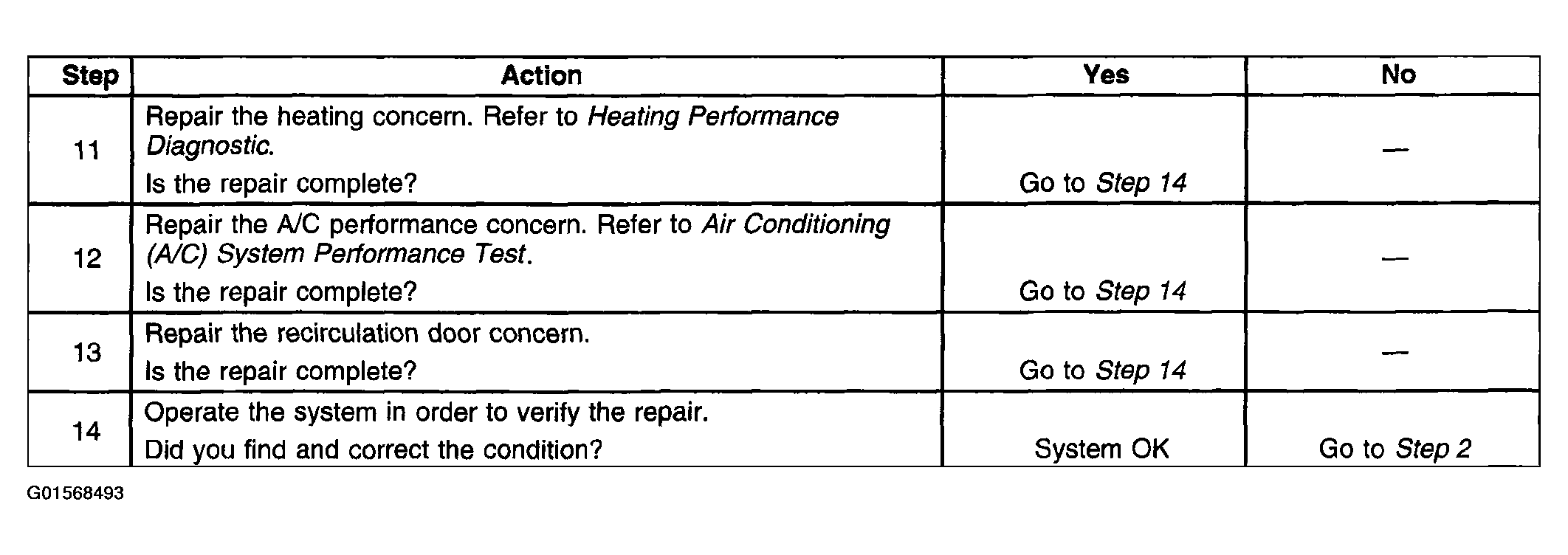

Fig 2: Defrosting Insufficient Diagnostic (Steps 11-14)
G01568493Courtesy of GENERAL MOTORS CORP.
