Rear Parking Assist Schematics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

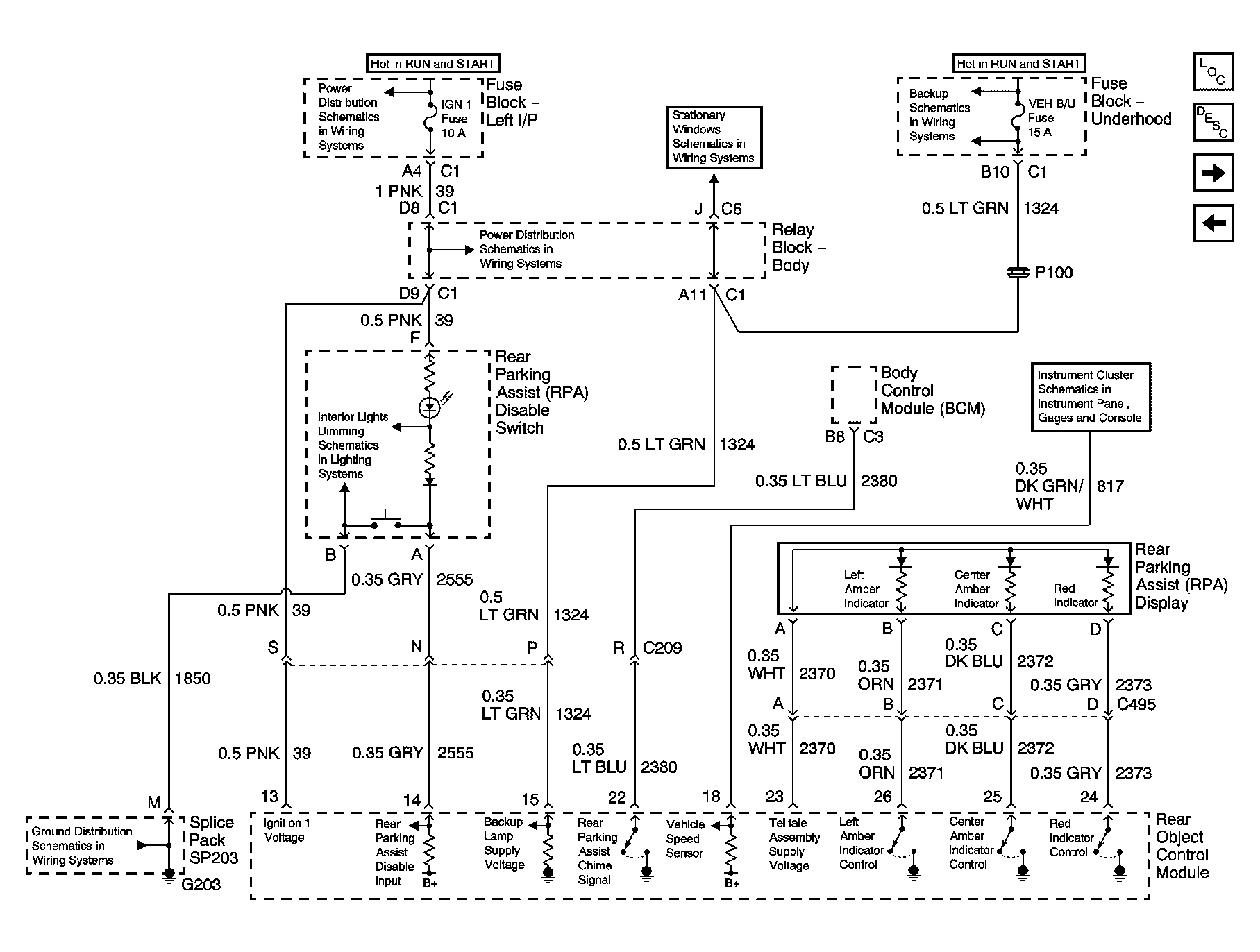

Fig 1: Rear Parking Assist (RPA) Display, RPA Disable Switch, Control Module Schematics - Escalade

Courtesy of GENERAL MOTORS CORP.

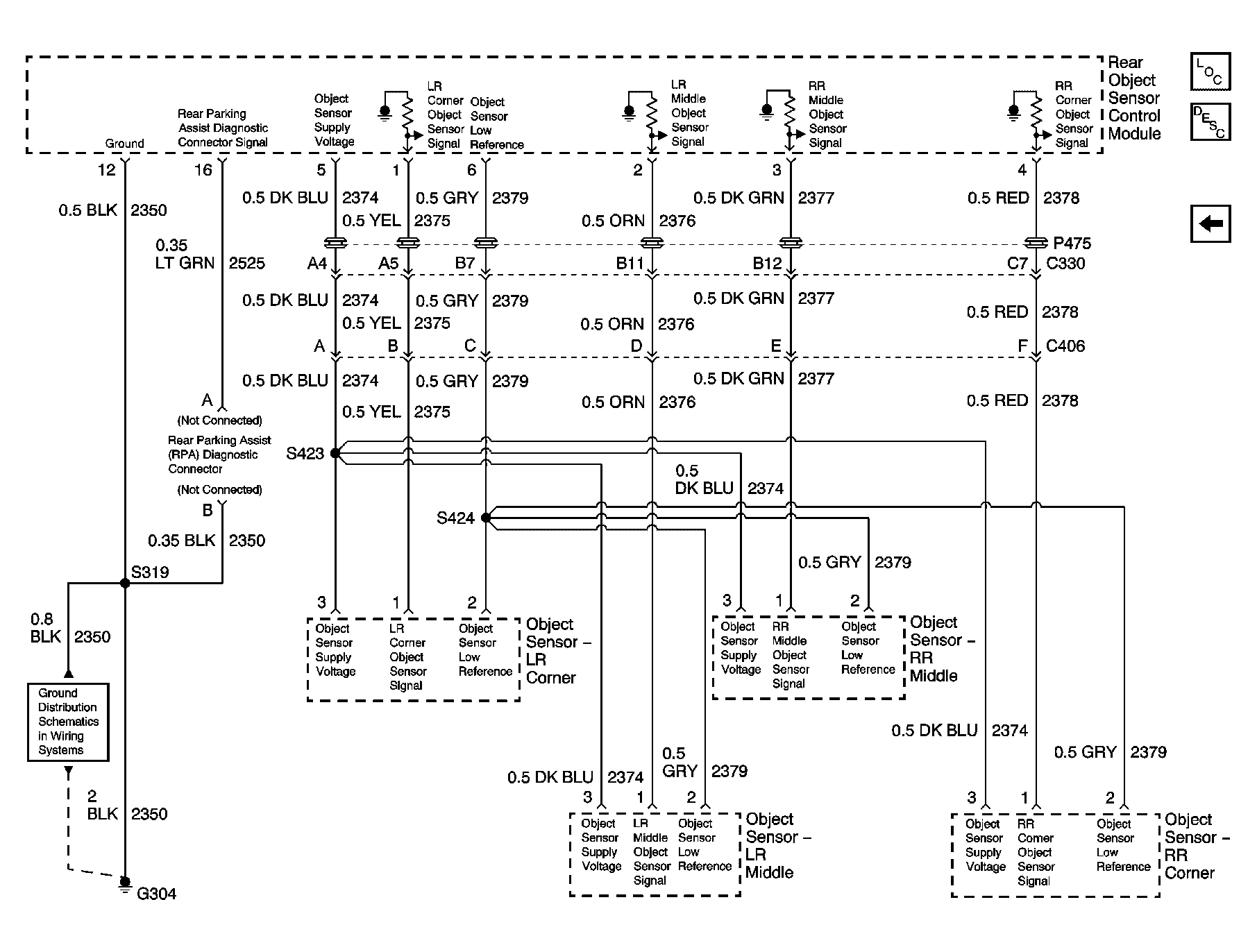

Fig 2: Rear Object Sensor Control Module and Object Sensors Schematics - Escalade

Courtesy of GENERAL MOTORS CORP.

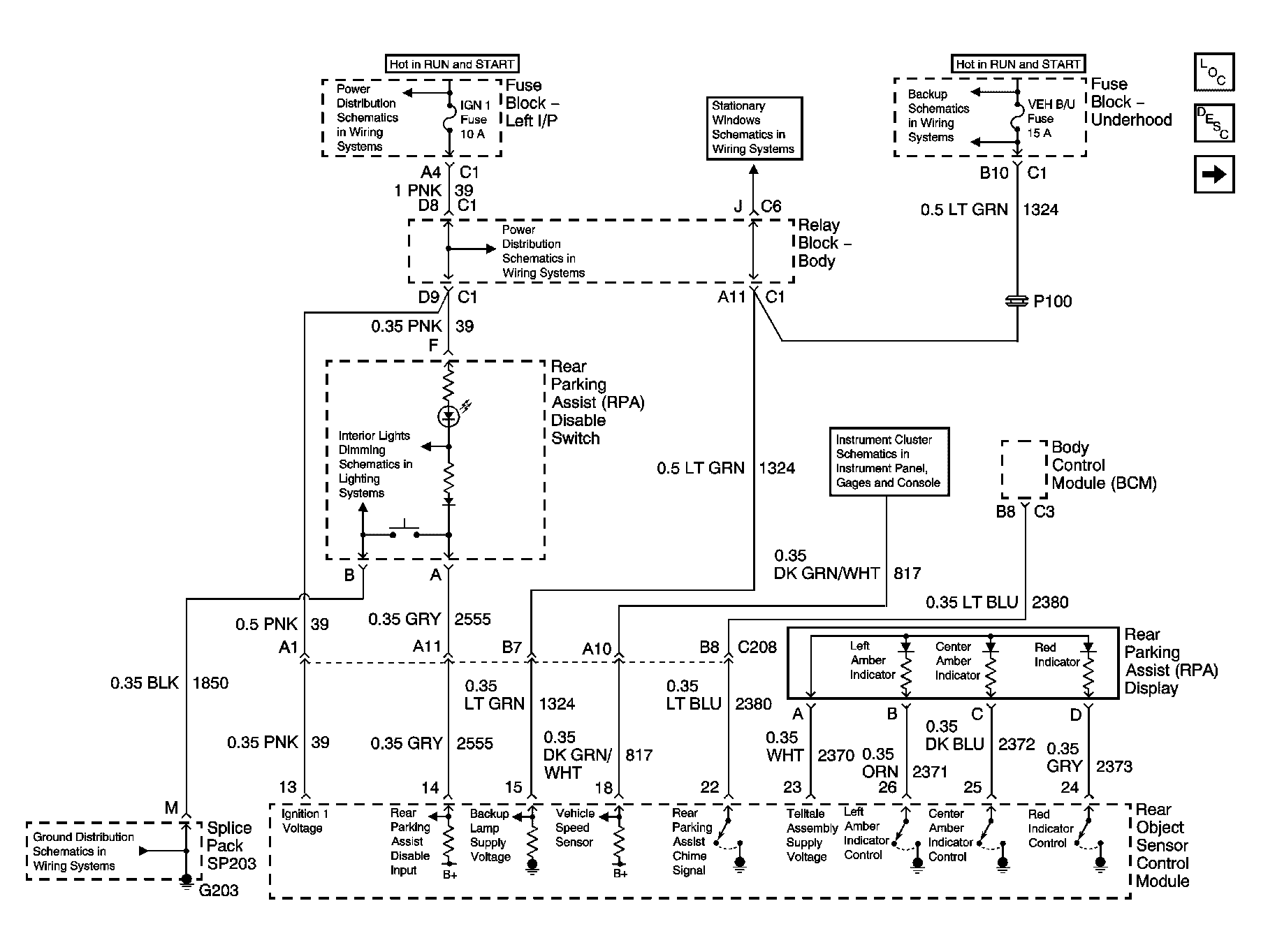

Fig 3: Rear Parking Assist (RPA) Disable Switch and RPA Display Schematics - Escalade EXT

Courtesy of GENERAL MOTORS CORP.

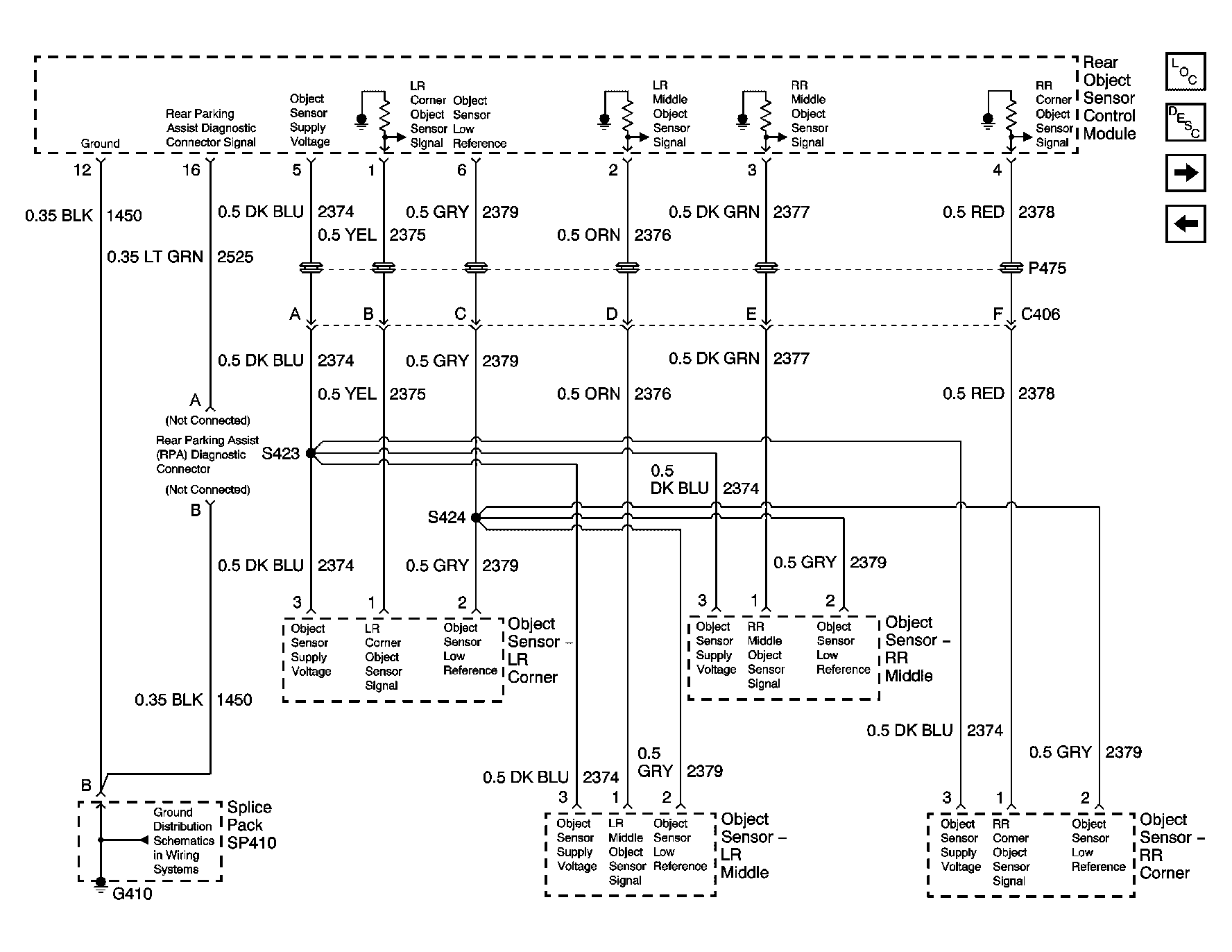

Fig 4: Rear Object Sensor Control Module and Object Sensors Schematics - Escalade EXT

Courtesy of GENERAL MOTORS CORP.
