Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

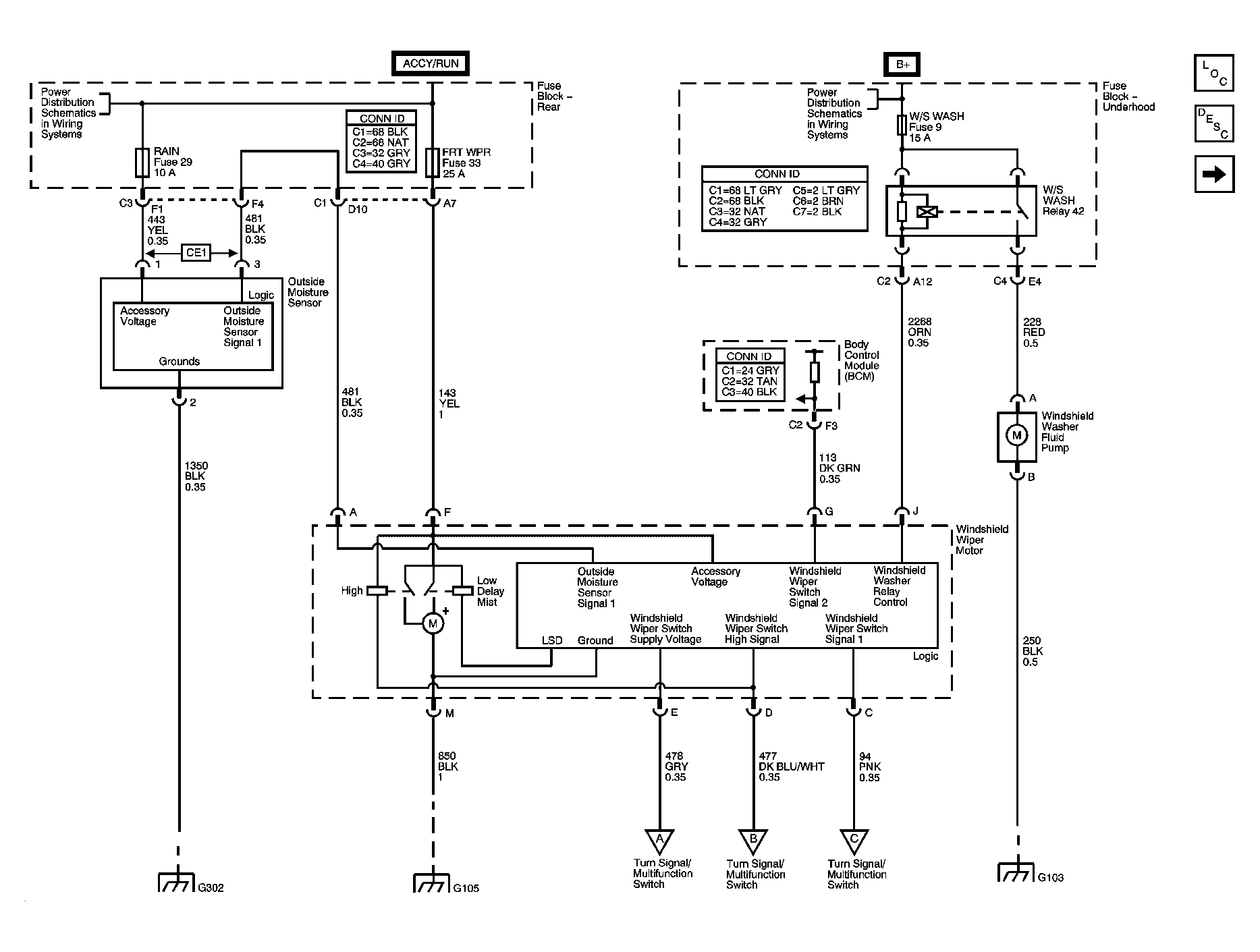

Fig 1: Wiper Motor, Washer Control, & Outside Moisture Sensor Schematics

Courtesy of GENERAL MOTORS CORP.

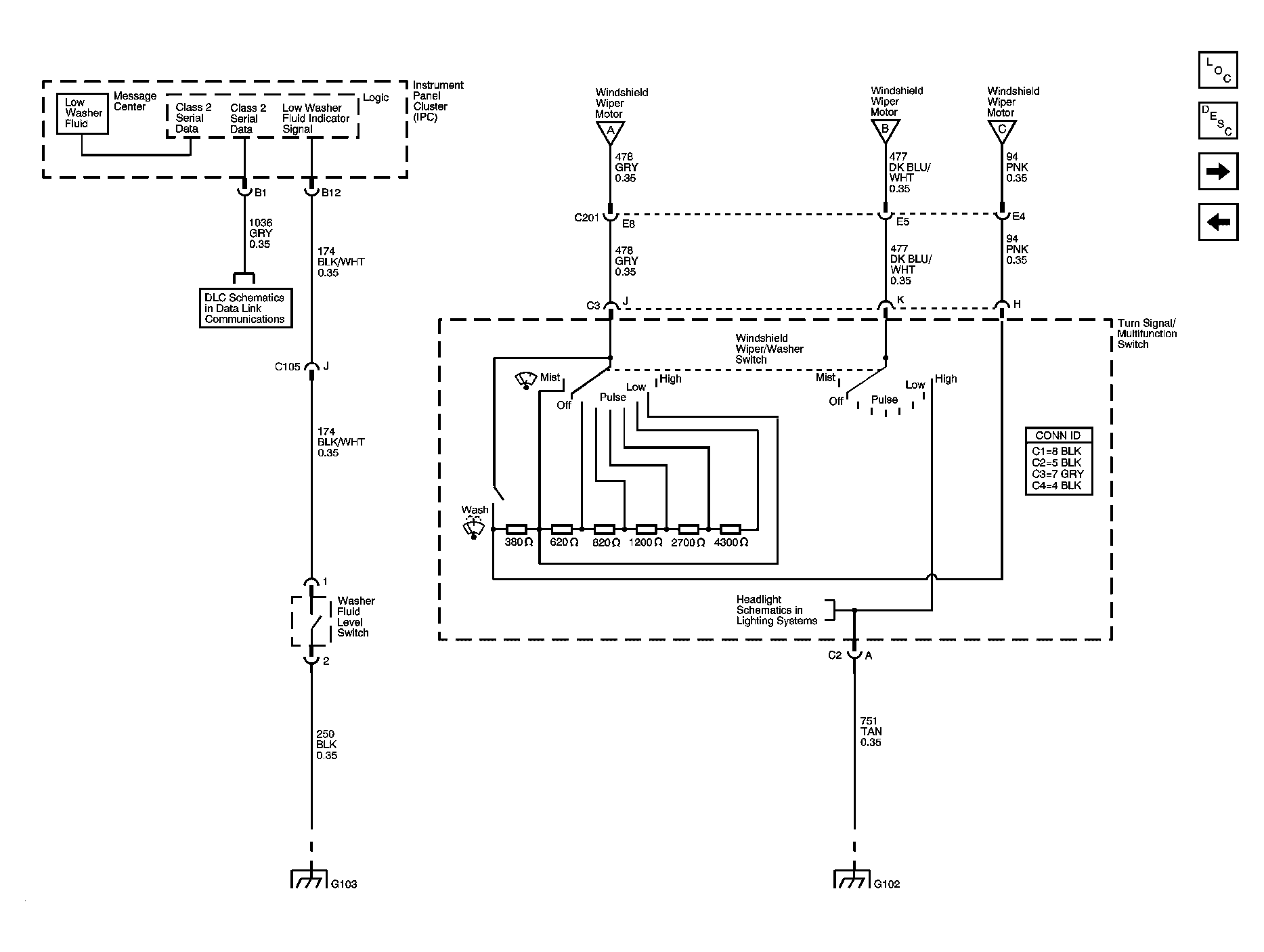

Fig 2: Wiper/Washer Switch & Washer Fluid Level Switch Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 3: Headlamp Washer Schematics

Courtesy of GENERAL MOTORS CORP.

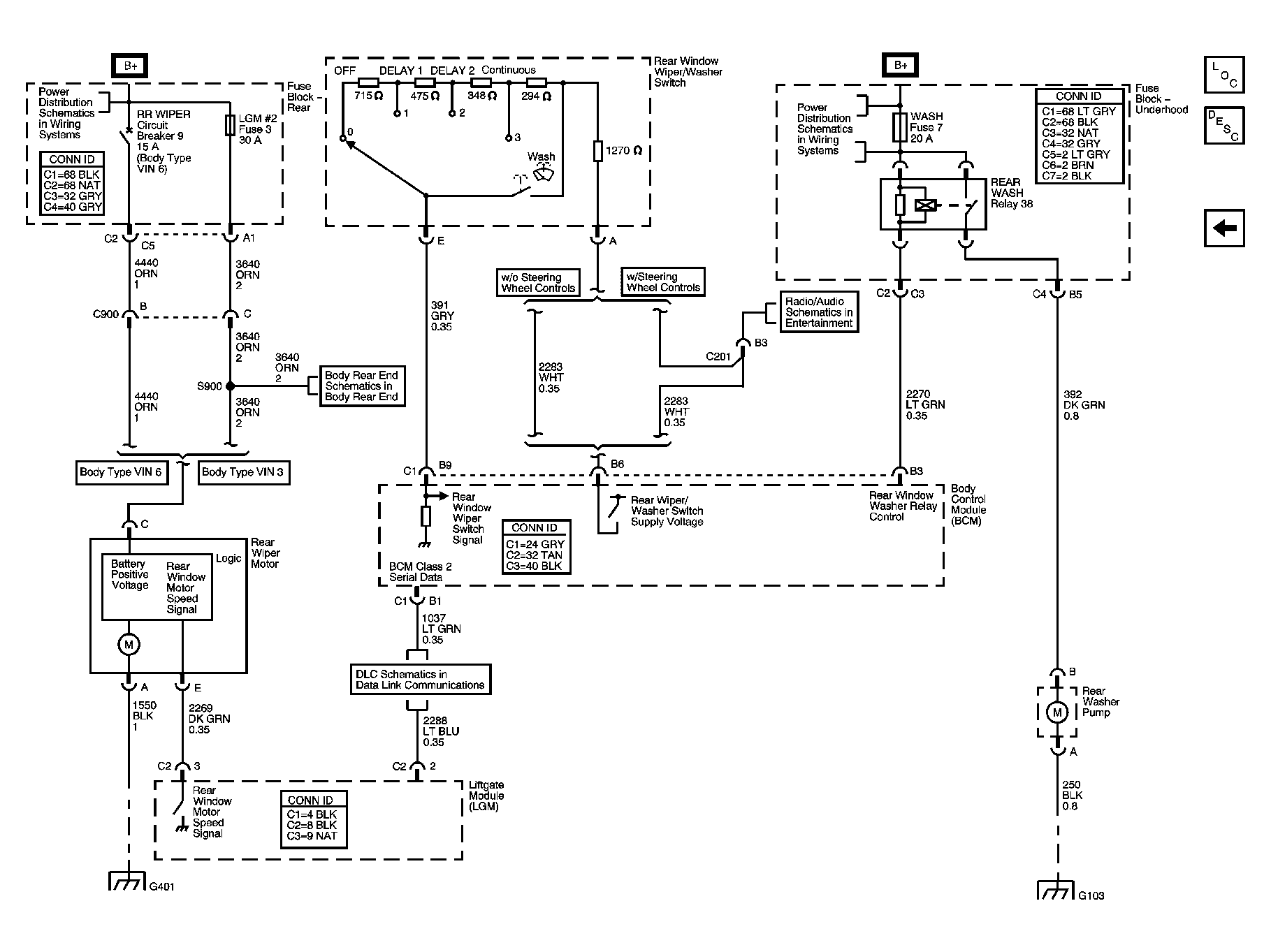

Fig 4: Rear Wiper/Washer Schematics

Courtesy of GENERAL MOTORS CORP.
