Content Theft Deterrent (CTD) Does Not Disarm with Key Lock

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

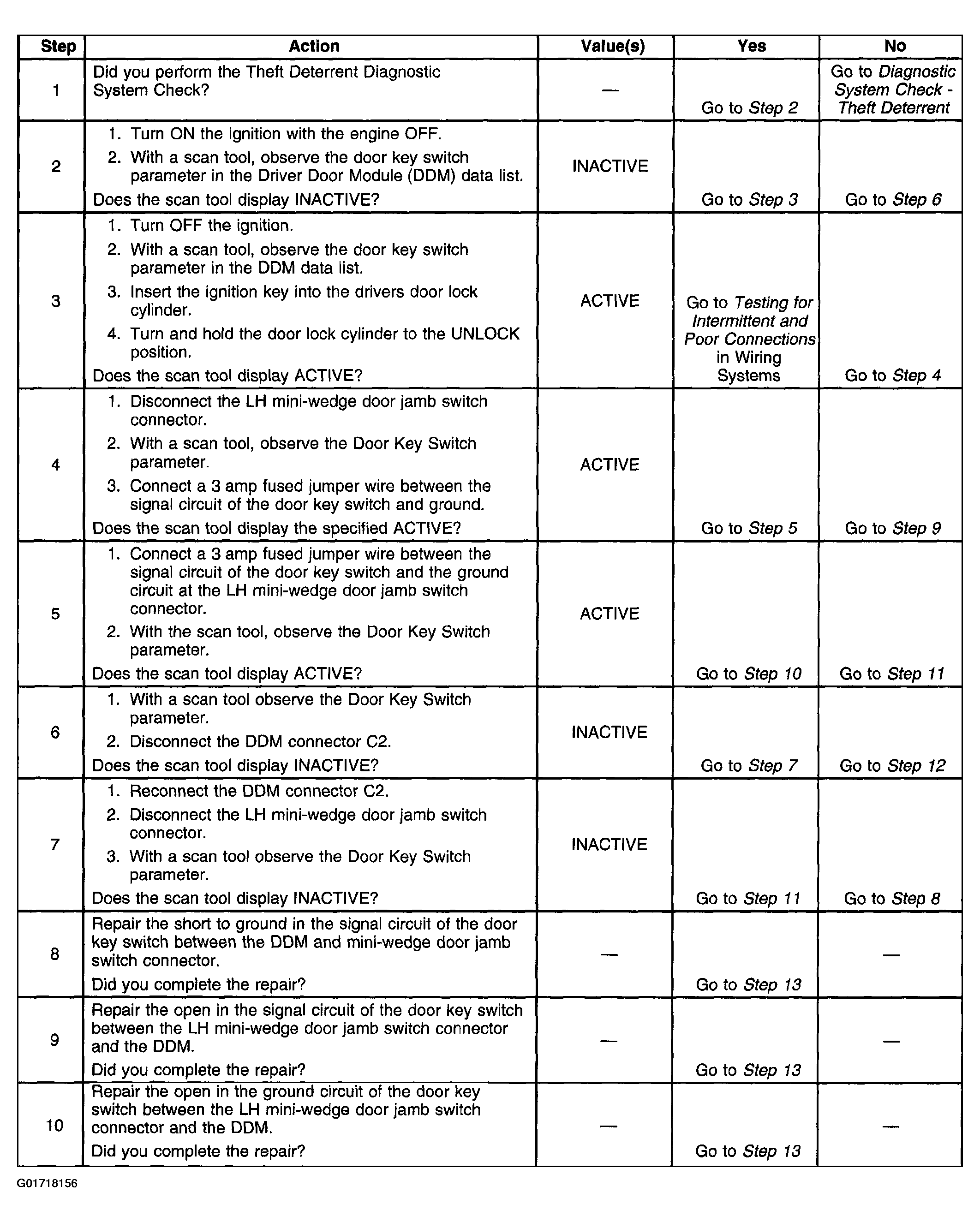

Fig 1: Content Theft Deterrent (CTD) Does Not Disarm With Key Lock (1 Of 2)
G01718156Courtesy of GENERAL MOTORS CORP.

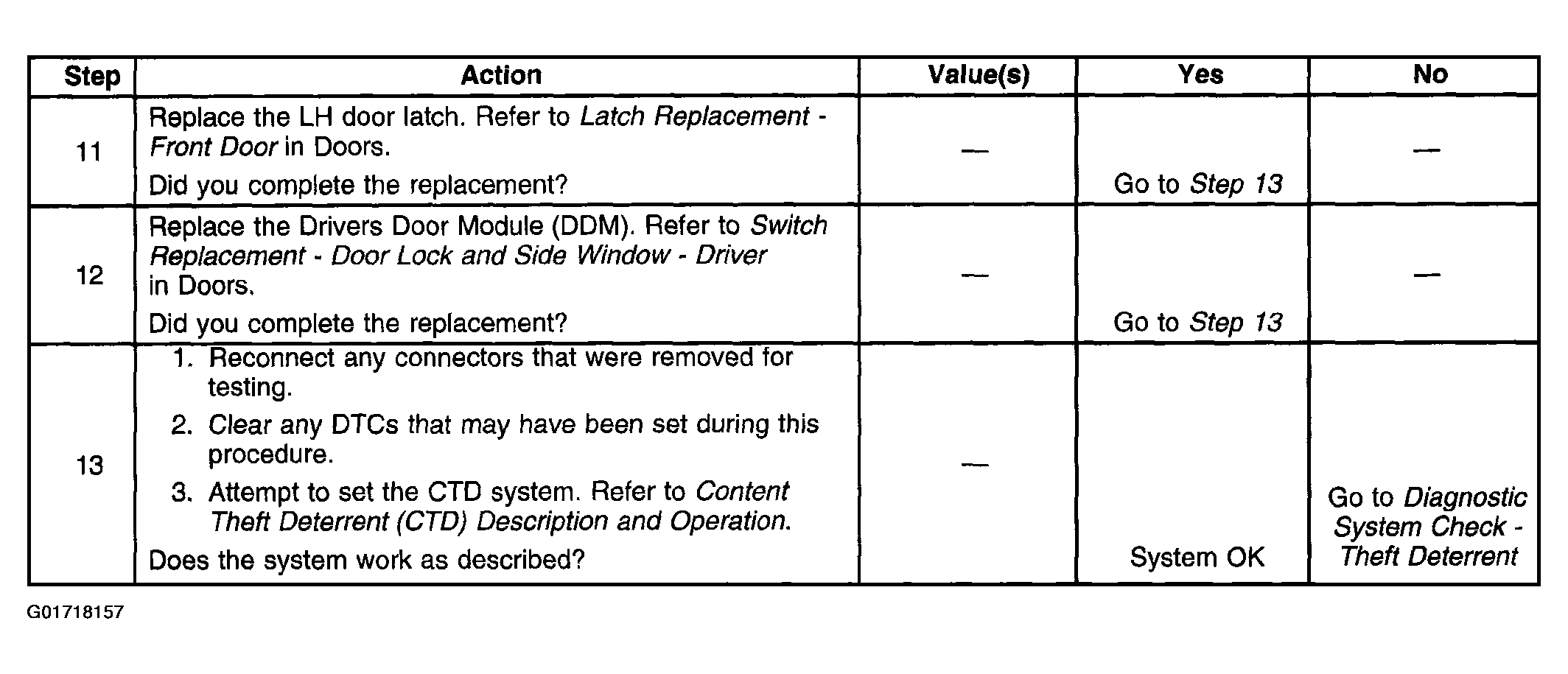

Fig 2: Content Theft Deterrent (CTD) Does Not Disarm With Key Lock (1 Of 2)
G01718157Courtesy of GENERAL MOTORS CORP.
