Scan Tool Data List

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

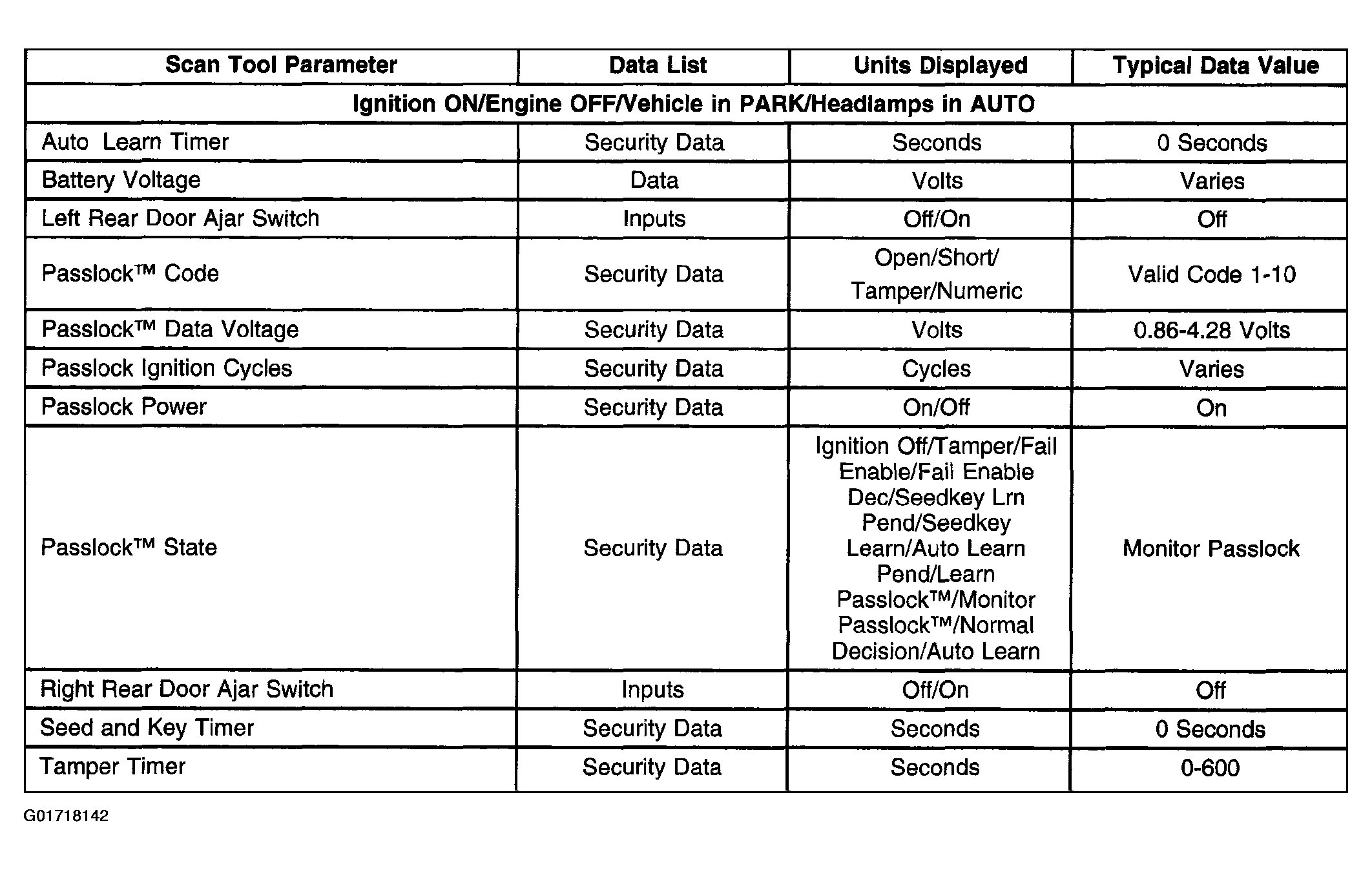

Fig 1: Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

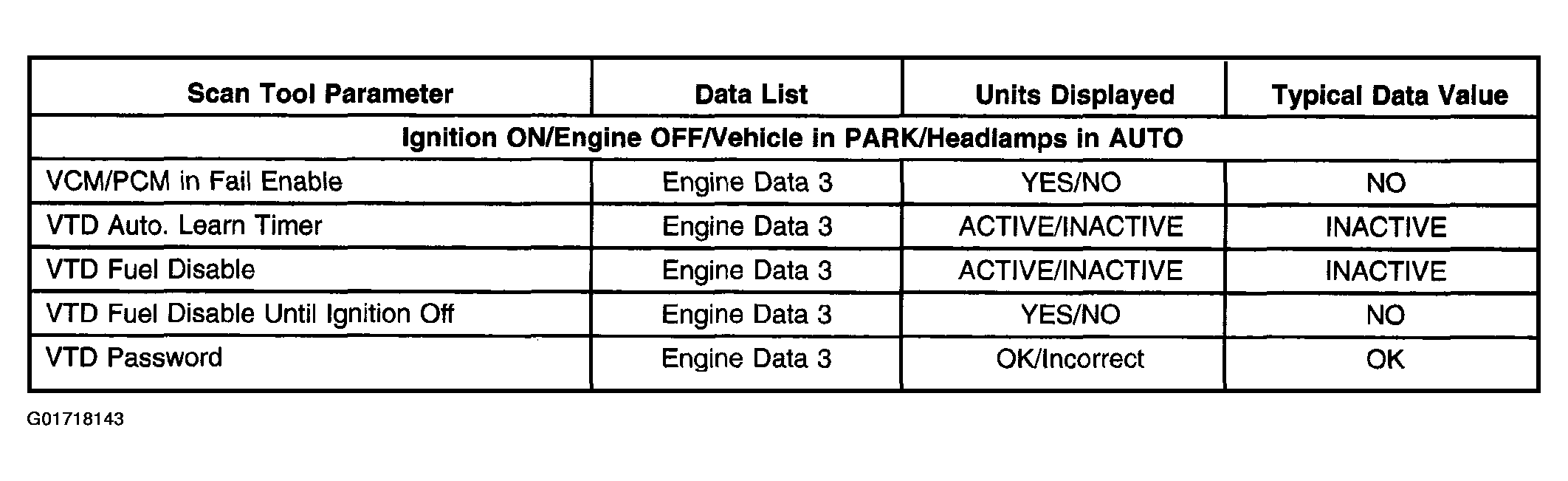

Fig 2: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.

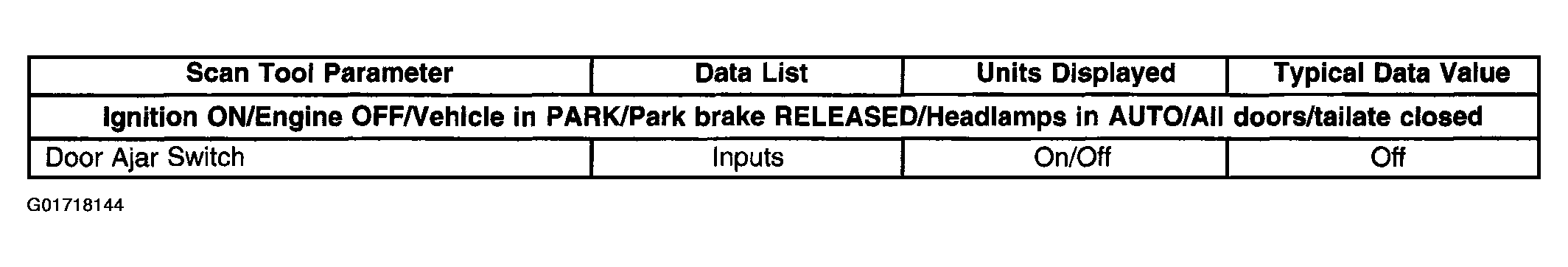

Fig 3: Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

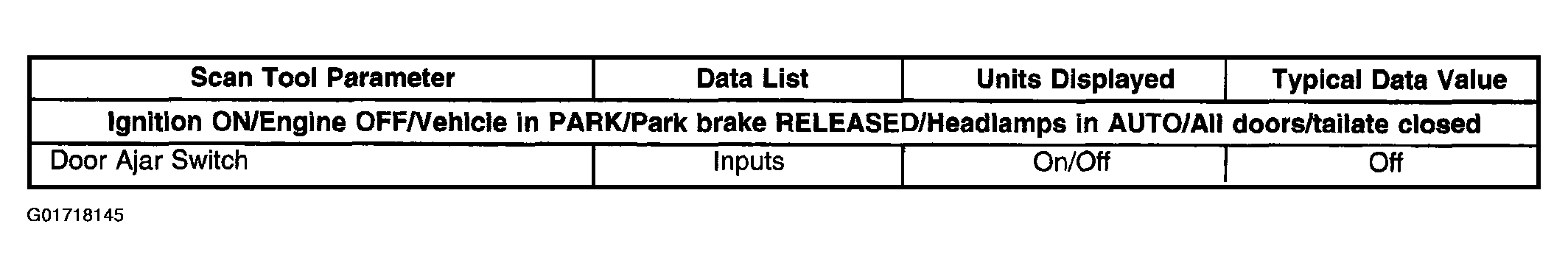

Fig 4: Passenger Door Module (PDM)

Courtesy of GENERAL MOTORS CORP.

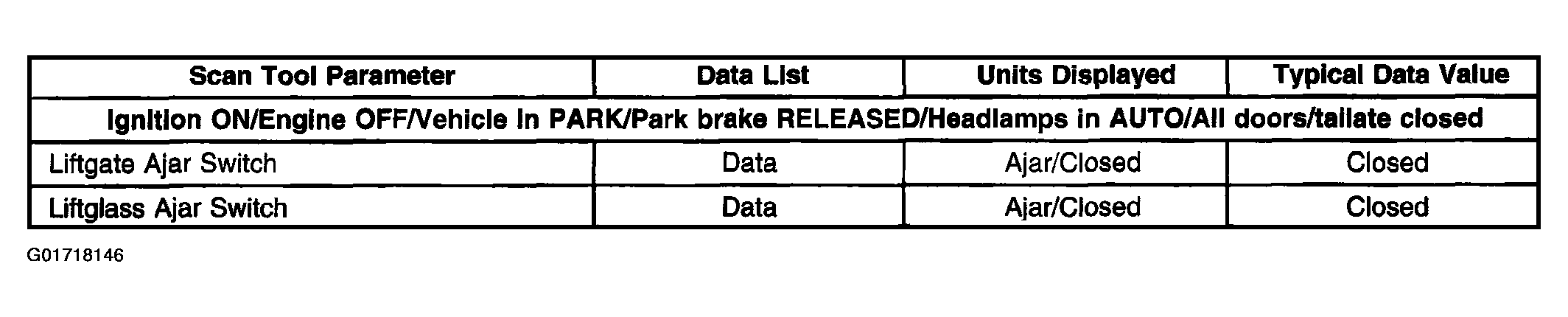

Fig 5: Lift Gate Module (LGM)

Courtesy of GENERAL MOTORS CORP.
