Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

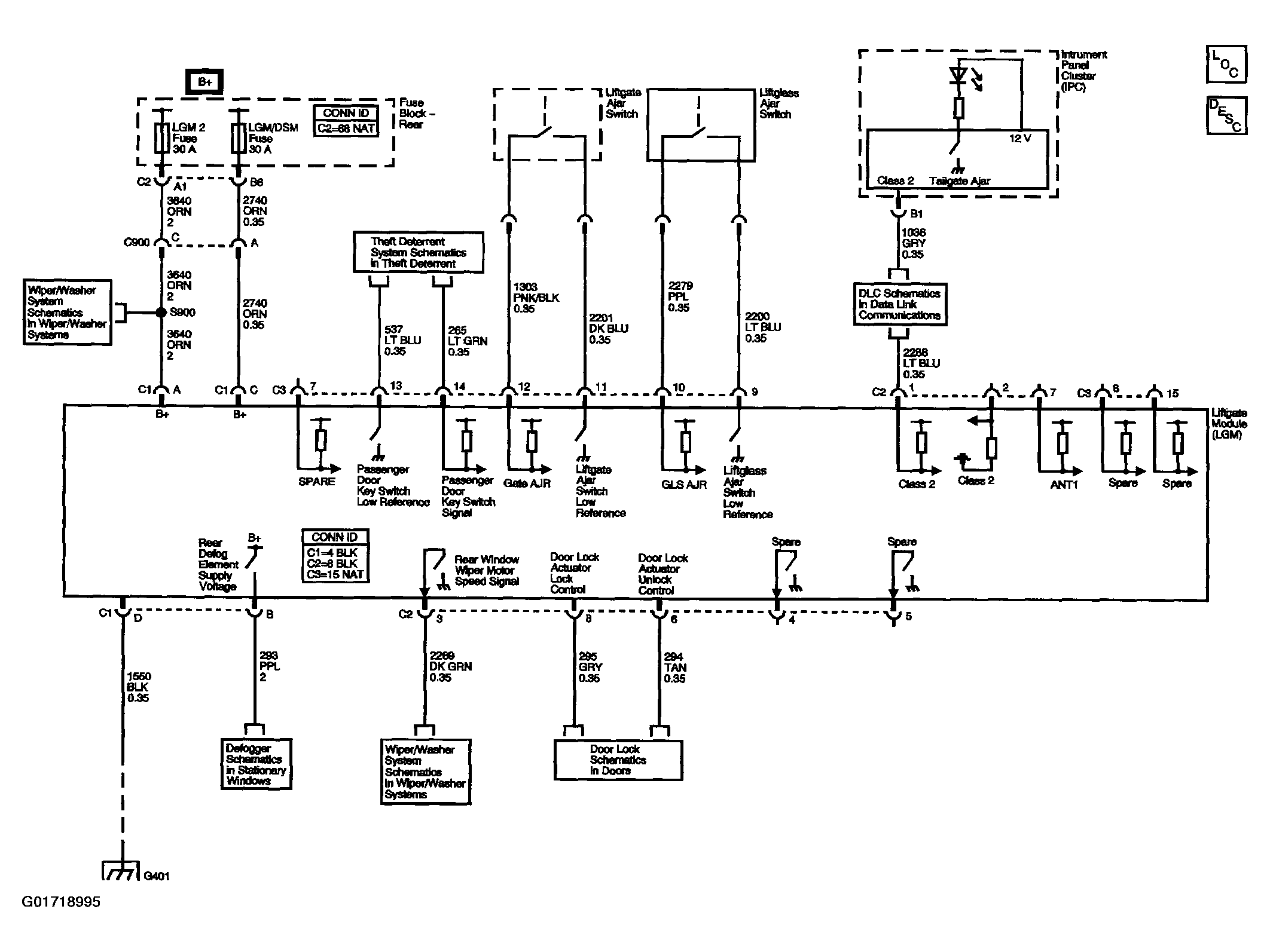

Fig 1: Body Rear End Schematics

Courtesy of GENERAL MOTORS CORP.

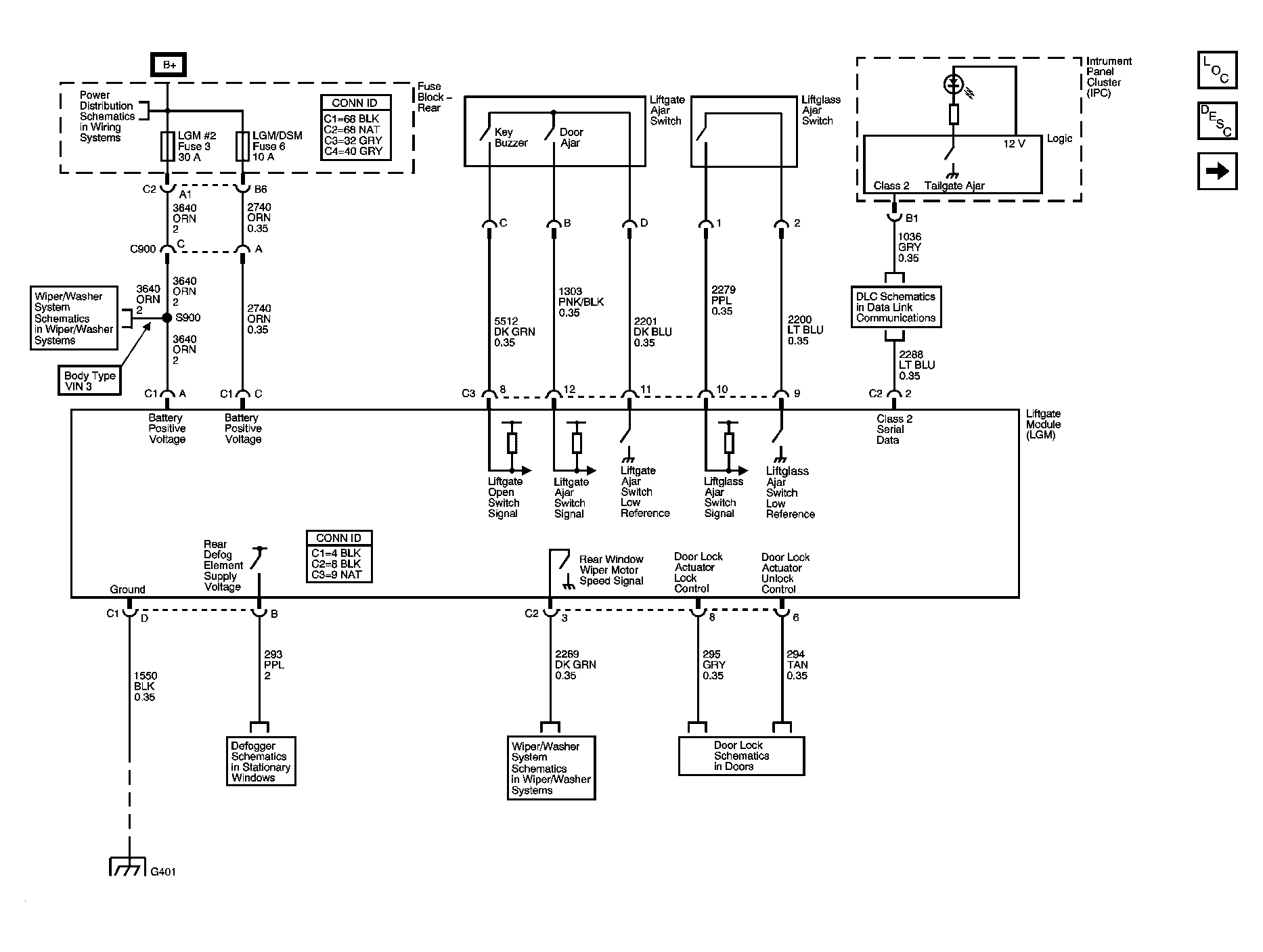

Fig 2: Liftgate Schematic and Routing Diagrams

Courtesy of GENERAL MOTORS CORP.

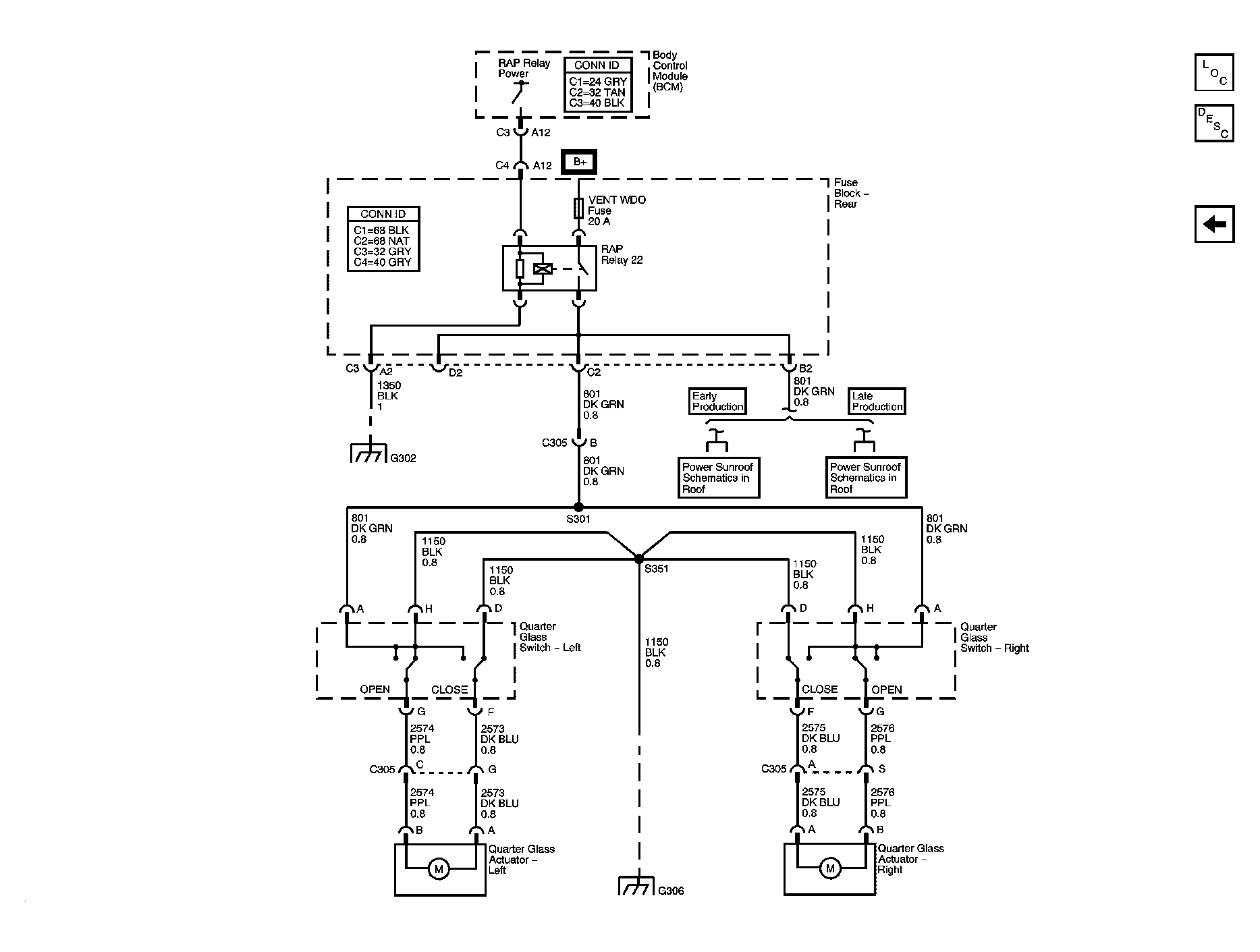

Fig 3: Quarter Glass Actuators - Body Type VIN 6

Courtesy of GENERAL MOTORS CORP.
