Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheelhouse panel to the vehicle.
  2. Install the 4 push-pins retaining the panel to the wheelhouse.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 2 screws that retain the wheelhouse panel to the rear fascia.

    Tighten

    Tighten the 2 screw to 2 N.m (18 lb in).

  4. Install the bolt that retains the wheelhouse panel to the rocker panel molding.

    Tighten

    Tighten the bolt to 7 N.m (62 lb in).

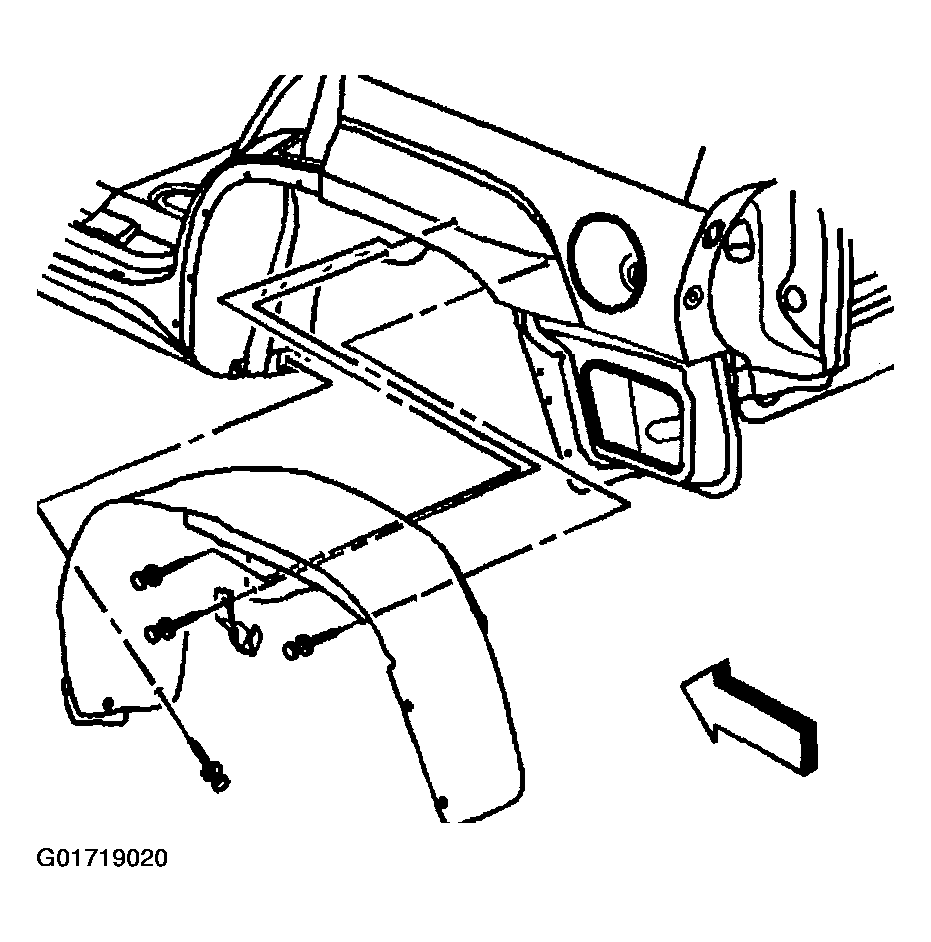

    Fig 1: Installing Bolt That Retaining Wheelhouse Panel To Rocker Panel Molding
    G01719020Courtesy of GENERAL MOTORS CORP.
