Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate window.
  2. Pull the liftgate window weatherstrip from the liftgate window opening pinch-weld flange.

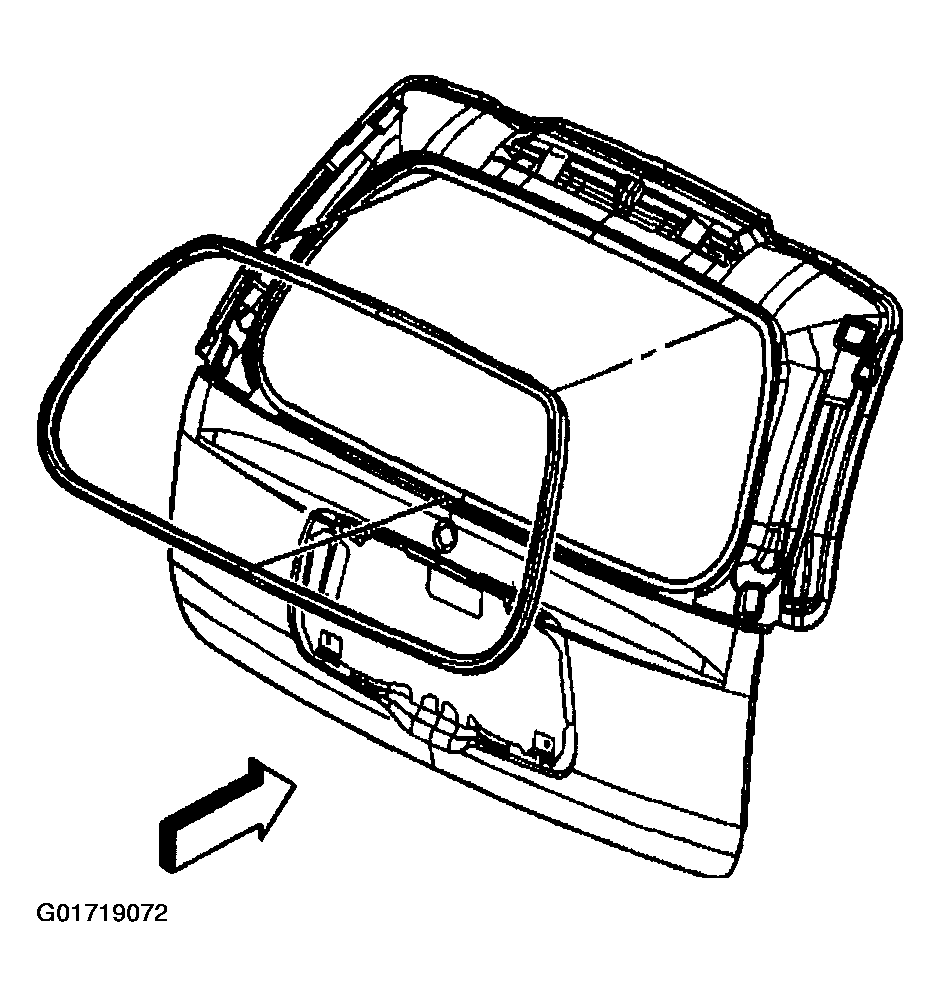

    Fig 1: Removing Lift Gate Window Weatherstrip
    G01719072Courtesy of GENERAL MOTORS CORP.
